Positive Crankcase Ventilation Valve: Service and Repair

POSITIVE CRANKCASE VENTILATION (PCV) VALVE

Exploded View







Removal and Installation
1. Remove the intake manifold.

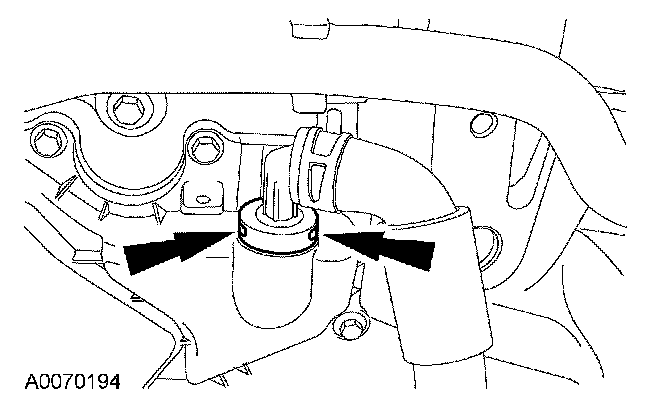

2. Depress the 2 tabs and remove the PCV valve from the crankcase vent oil separator.







3. Release the clamp and remove the crankcase ventilation tube.
4. To install, reverse the removal procedure.
