Test E: The 4X4 Control Module Does Not Respond To The Scan Tool

PINPOINT TEST E: THE 4X4 CONTROL MODULE DOES NOT RESPOND TO THE SCAN TOOL

Normal Operation
The 4X4 control module communicates with the scan tool through the high speed controller area network (HS-CAN). Circuits VDB04 (WH/BU) (HS-CAN +) and VDB05 (WH) (HS-CAN -) provide the network connection to the 4X4 control module. Voltage to the 4X4 control module is supplied by circuits CBP19 (BN/WH) and SBP15 (WH/RD). Ground is supplied by circuit GD126 (BK/WH).

The 4X4 control module shares the HS-CAN with the following modules:
- ABS module
- Accessory protocol interface module (APIM) (if equipped)
- Instrument cluster (IC)
- Occupant classification system module (OCSM)
- PCM
- Restraints control module (RCM)
- Transmission control module (TCM) (if equipped)

This pinpoint test is intended to diagnose the following:
- Fuse
- Wiring, terminals or connectors
- 4X4 control module

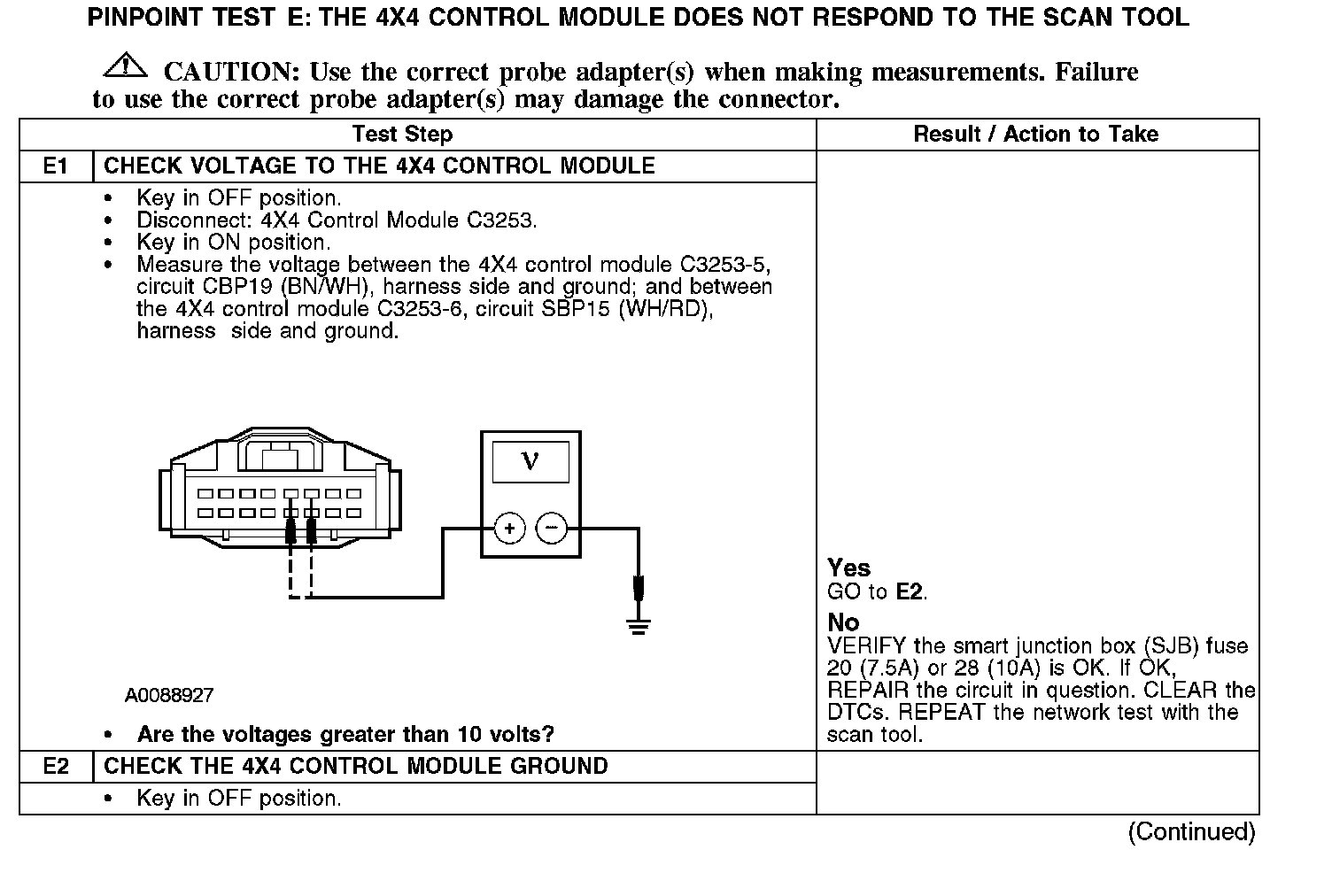

E1-E2:

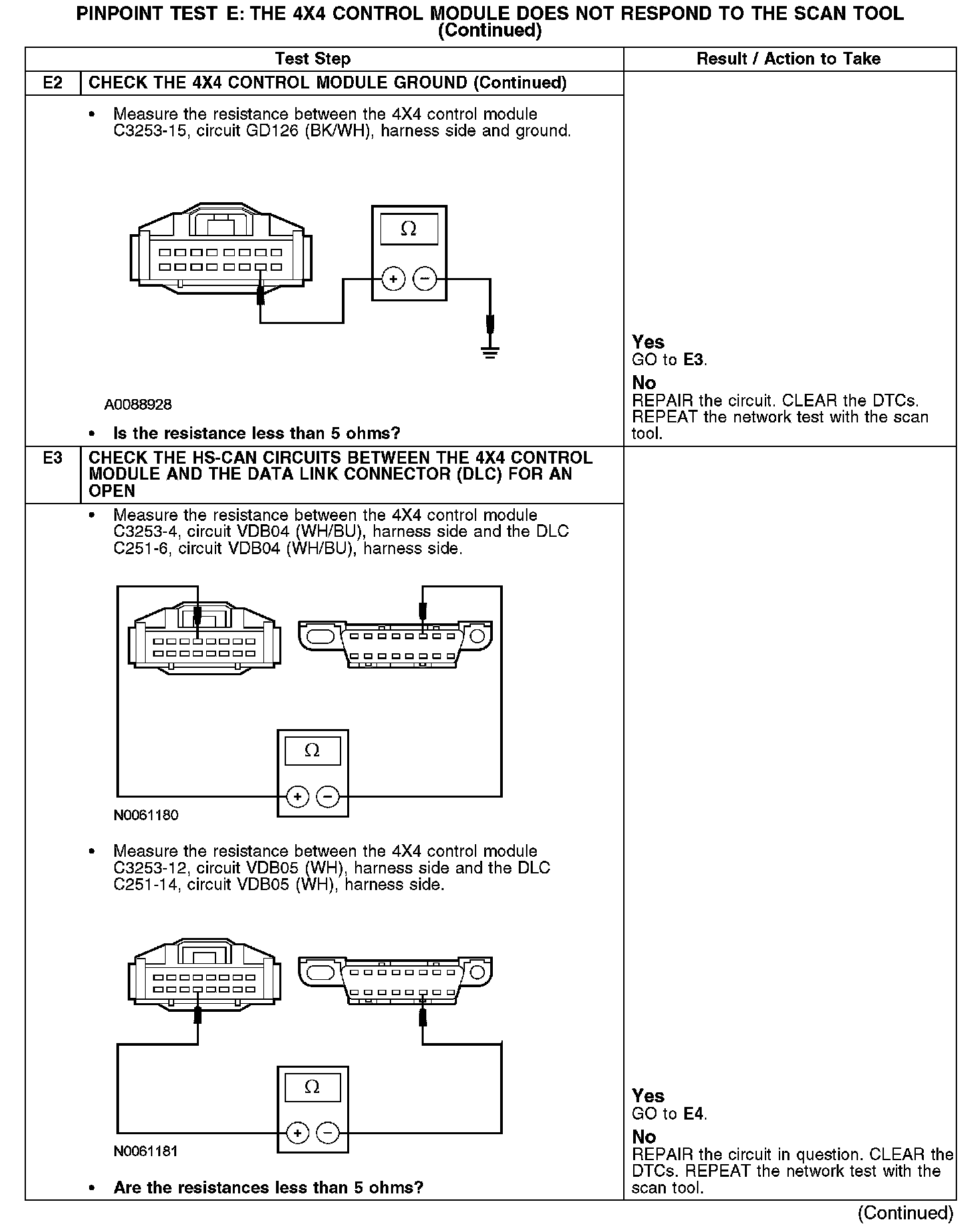

E2-E3:

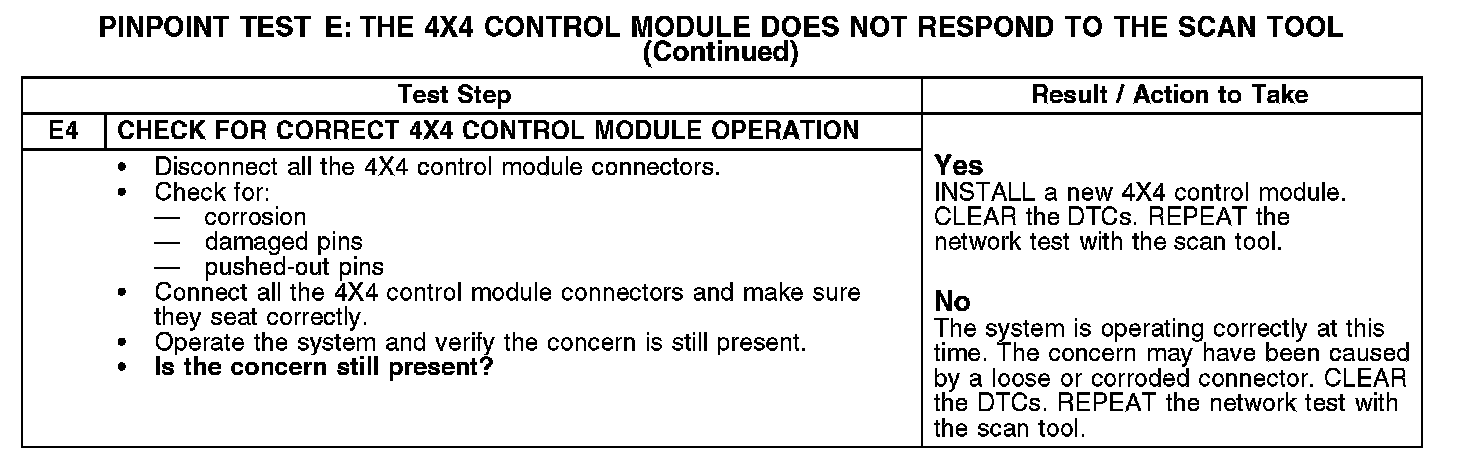

E4:
