Parking Light Bulb: Service and Repair

PARKING LAMP BULB - FRONT

MKZ:

Fusion, Milan:

Removal and Installation

MKZ LH front parking lamp bulb
1. Remove the air cleaner.

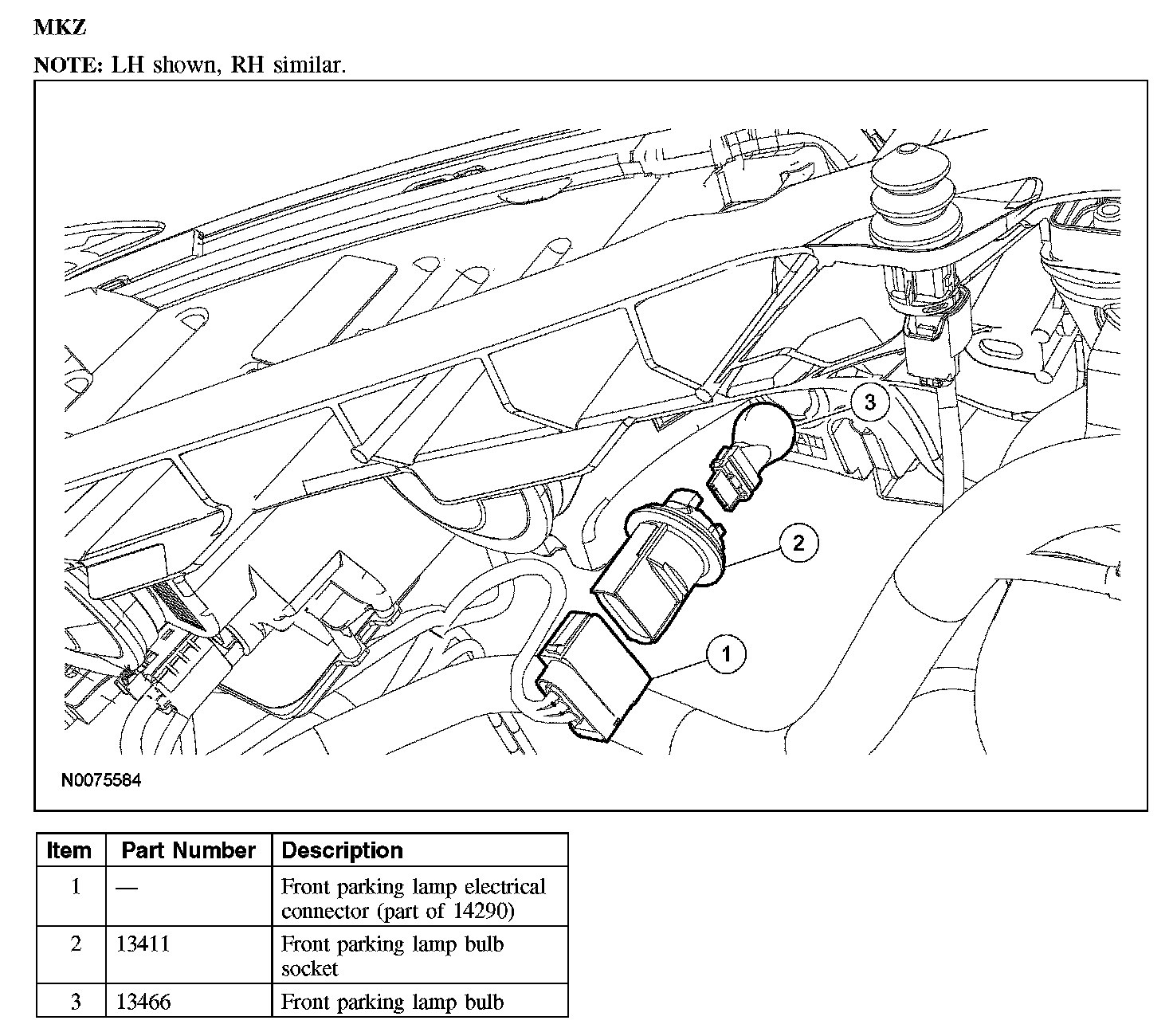

MKZ LH or RH front parking lamp bulb
2. Remove the front parking lamp socket from the headlamp assembly.
- Remove the front parking lamp bulb.

Fusion, Milan RH front parking lamp bulb
3. With the vehicle in NEUTRAL, position it on a hoist.

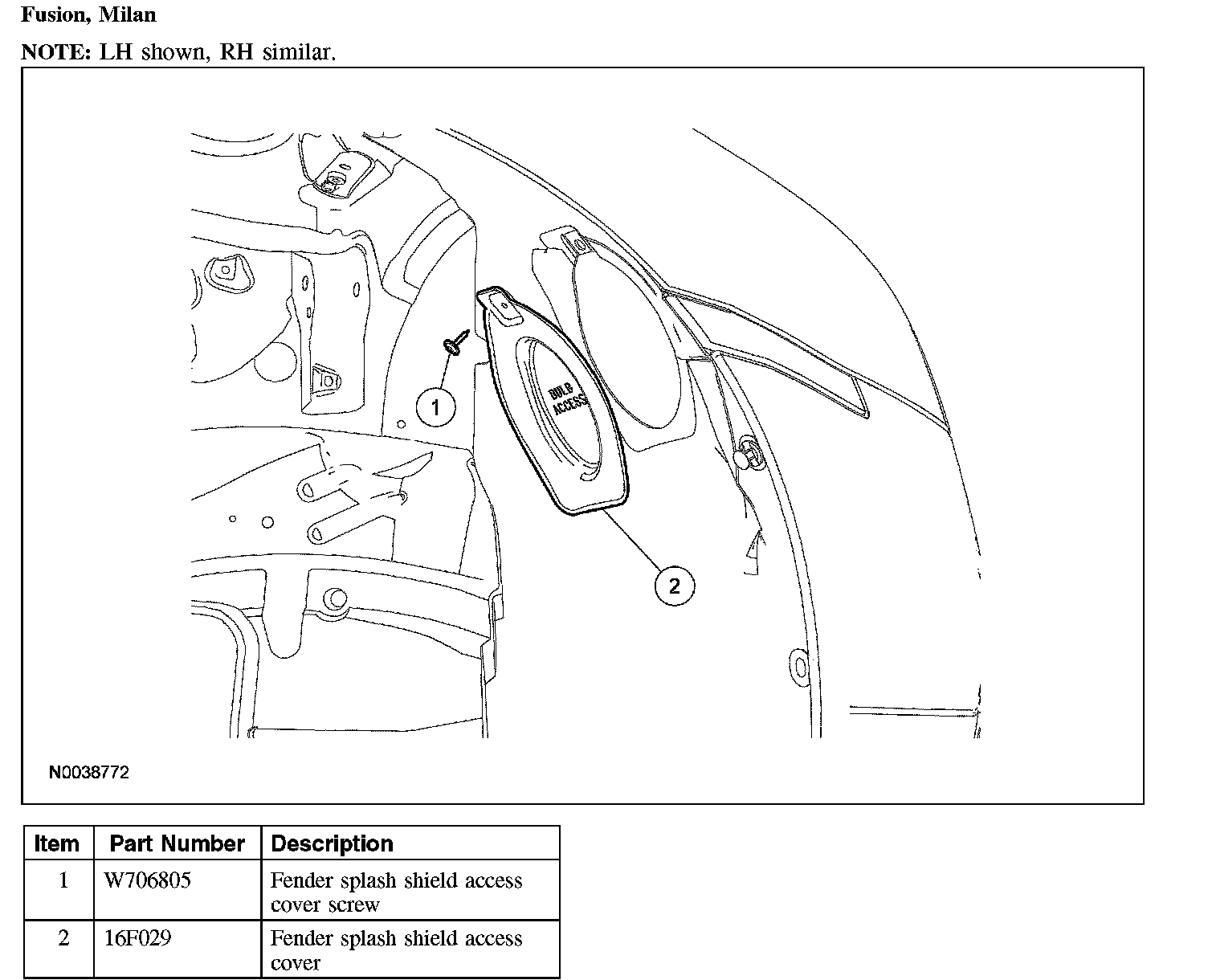

4. Remove the screw and the fender splash shield access cover.

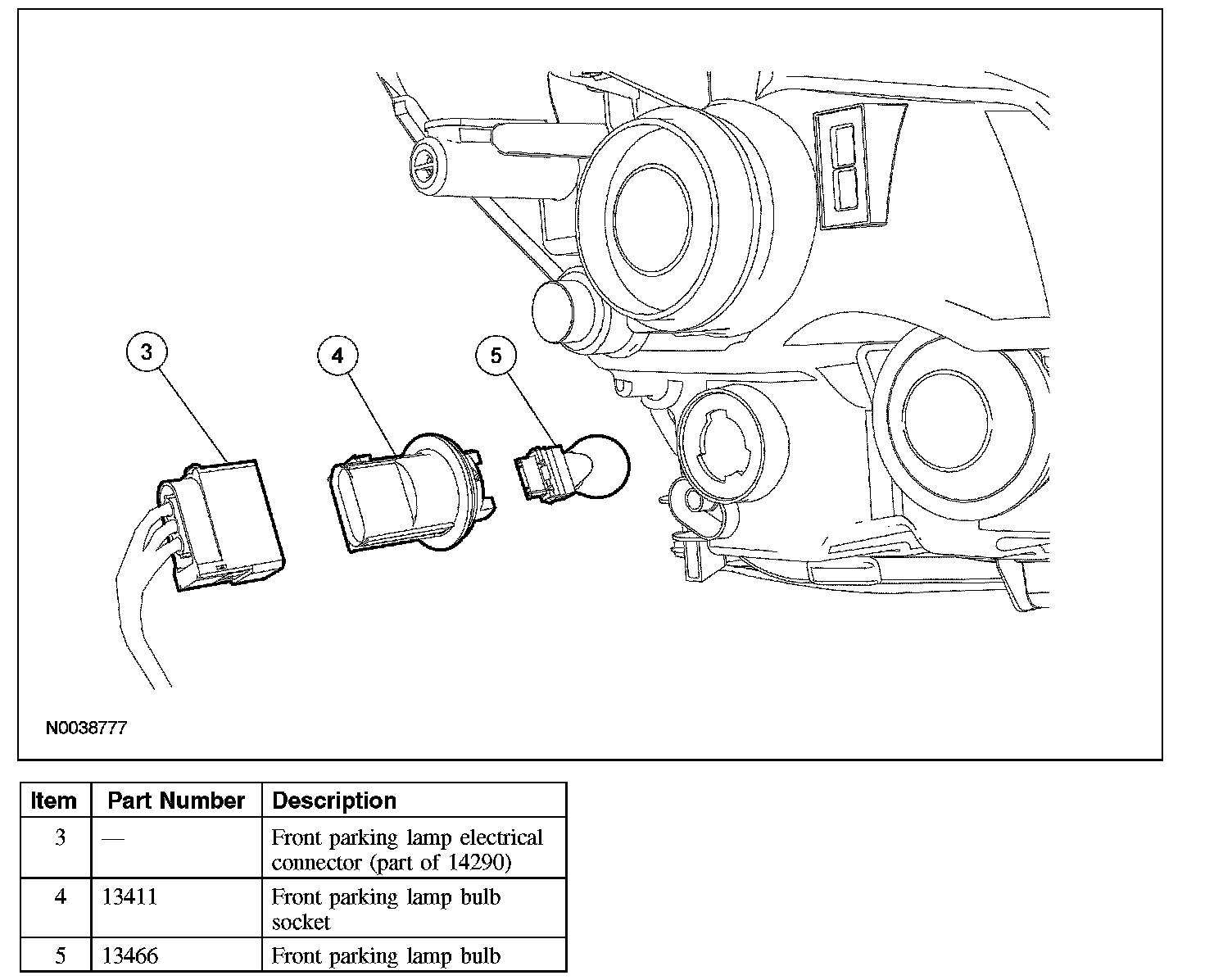

Fusion, Milan LH or RH front parking lamp bulb
5. Remove the front parking lamp socket from the headlamp assembly.
- Remove the front parking lamp bulb.

All vehicles
6. To install, reverse the removal procedure.
