Home >> Mercury >> 2008 >> Milan AWD L4-2.3L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> Instrument Cluster >> Instrument Cluster DTC Chart

Instrument Cluster DTC Chart

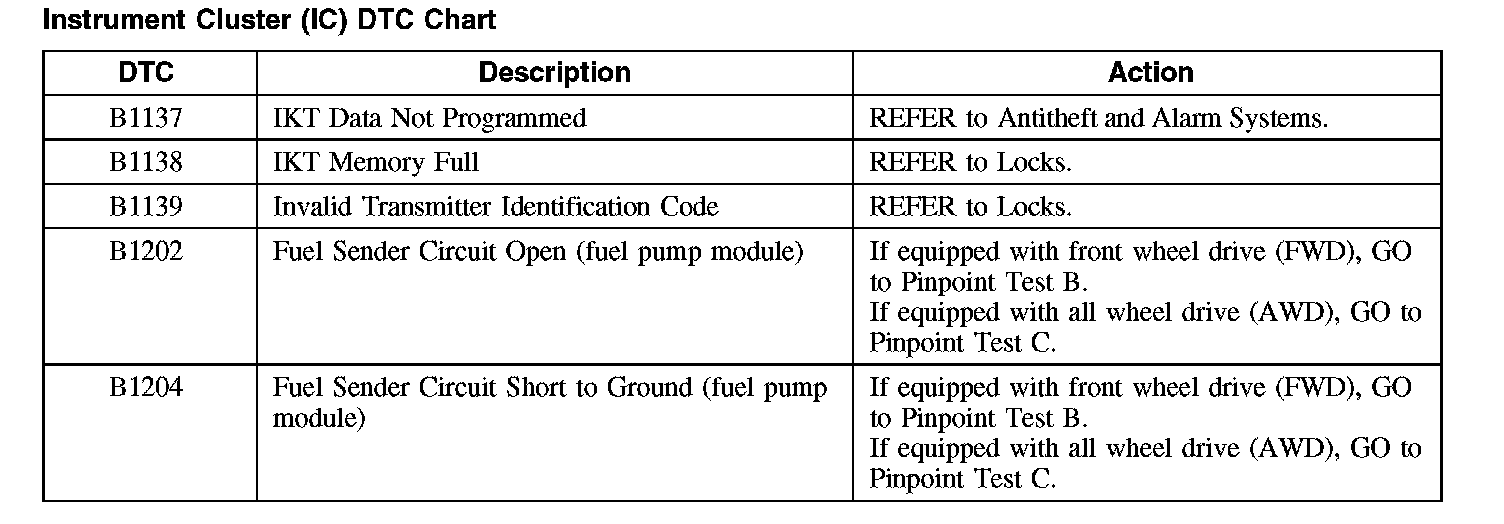

B1137-B1204:

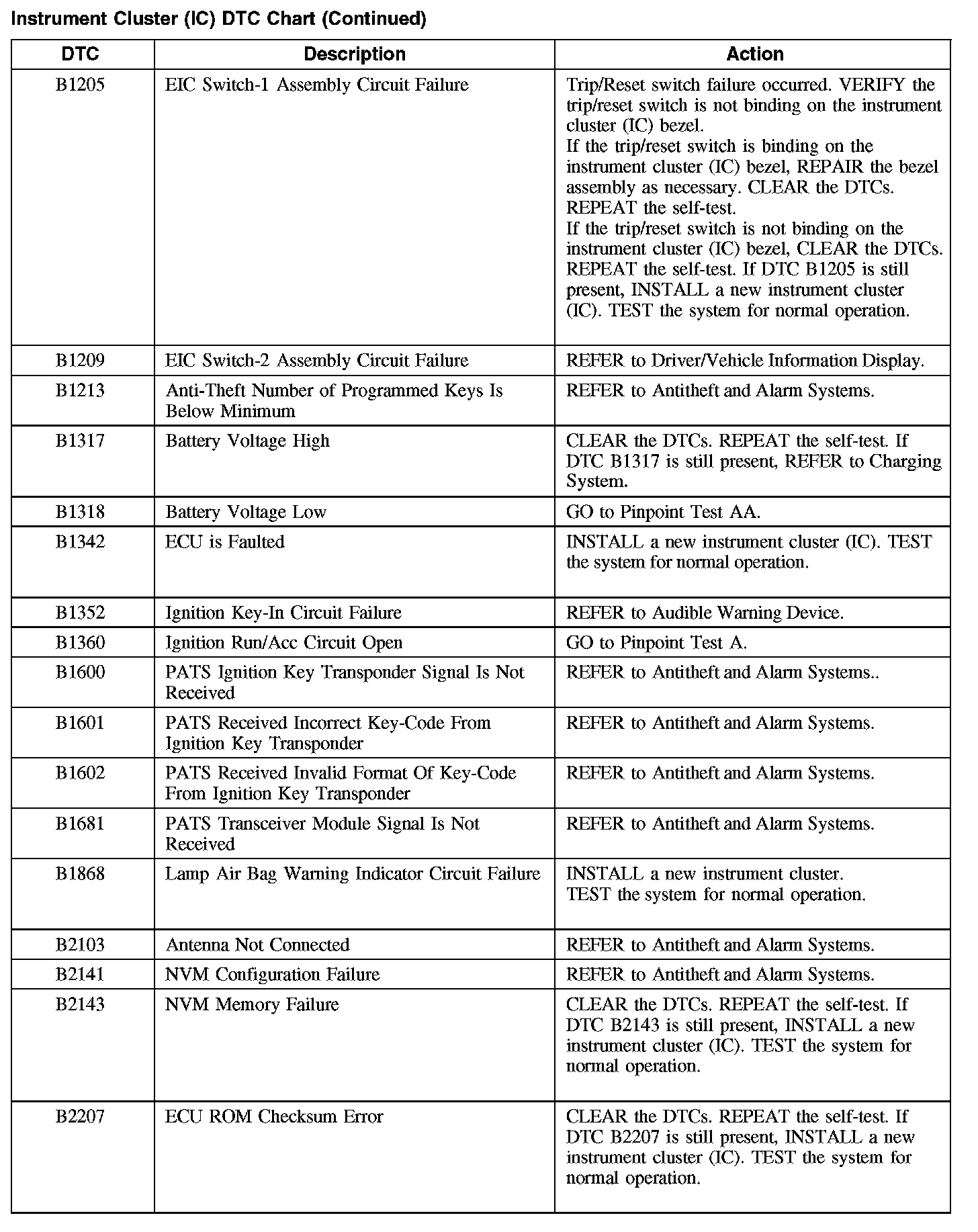

B1205-B2207:

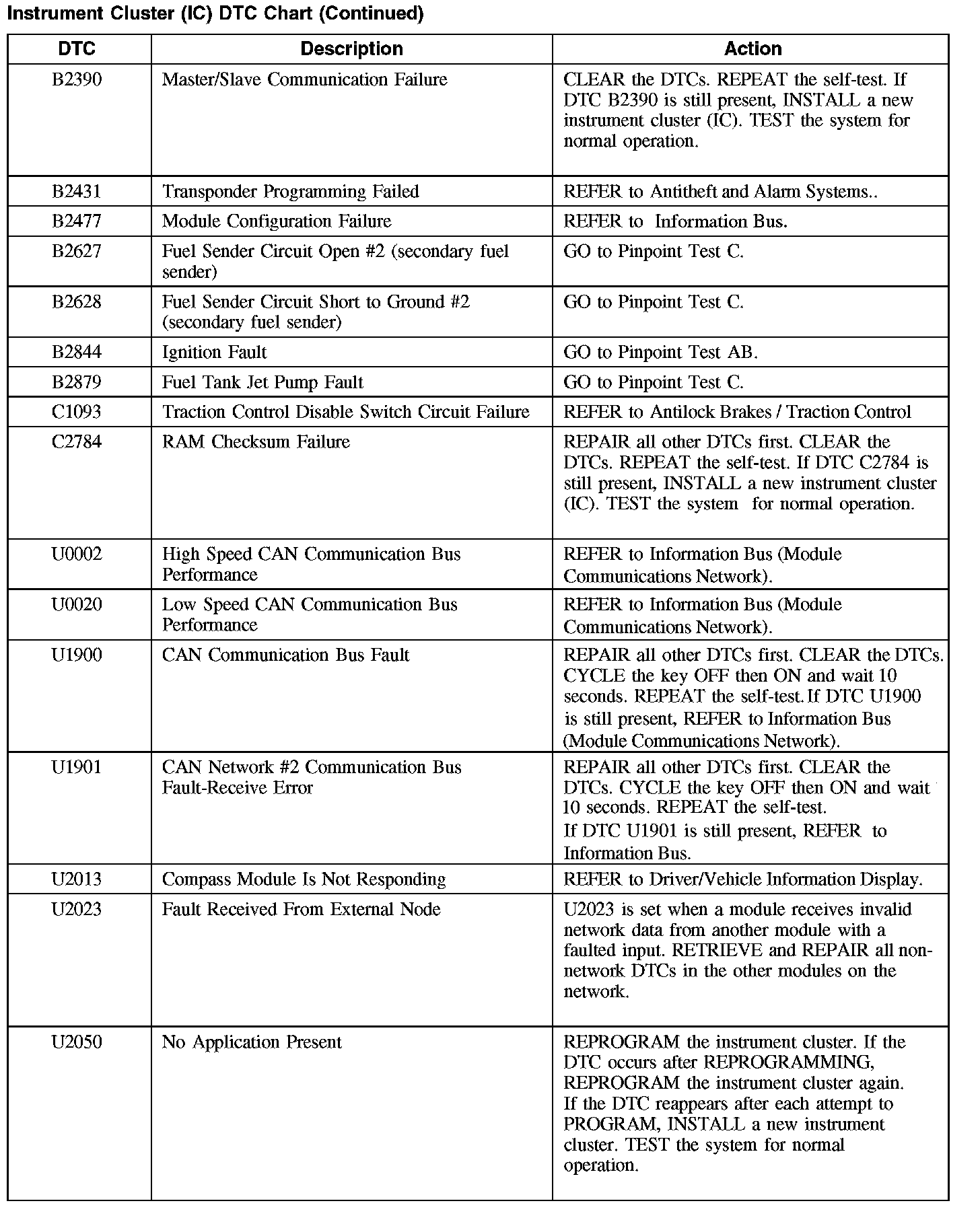

B2390-B2879 / C1093-C2784 / U0002-U2050:

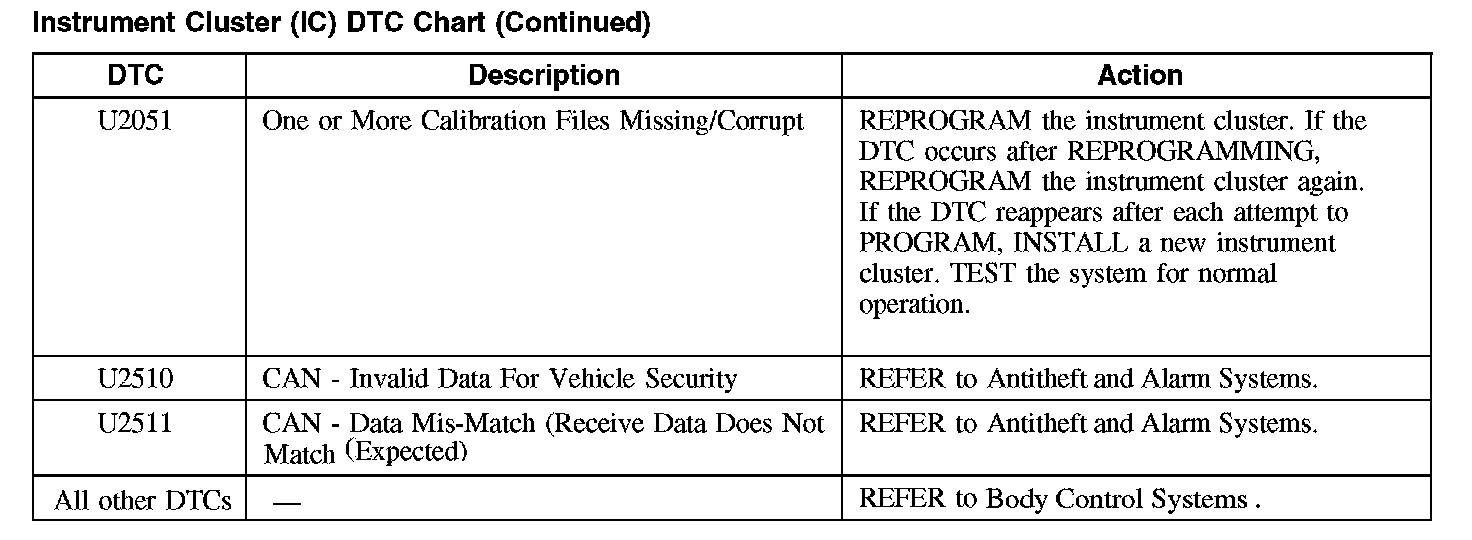

U2051-U2511:
