Water Pump: Service and Repair

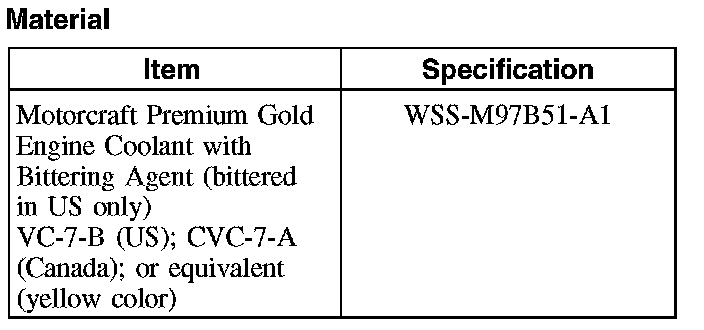

Coolant Pump - 2.3LMaterial:

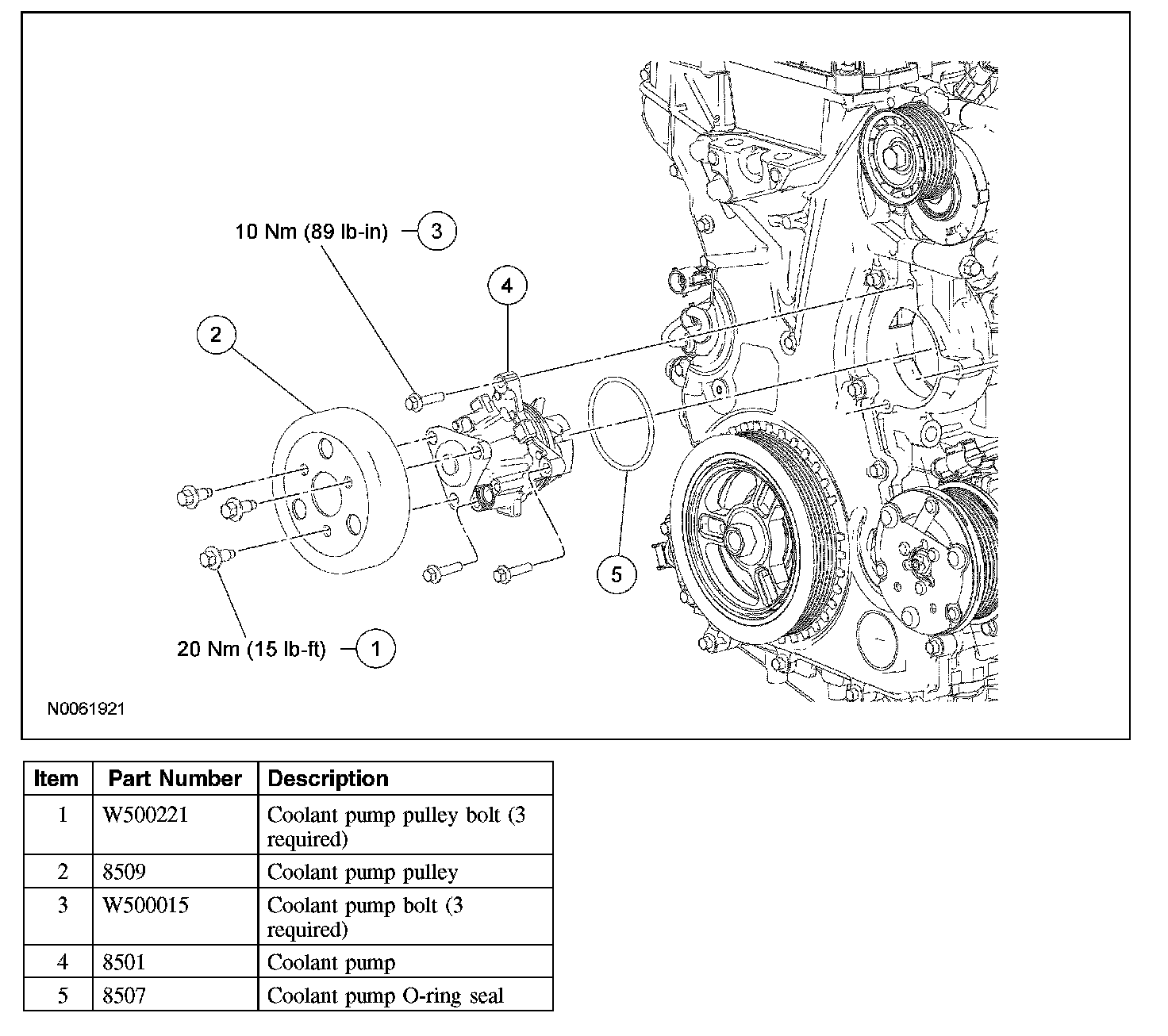

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Drain the cooling system.
3. Loosen the 3 coolant pump pulley bolts.
4. Remove the accessory drive belt.
5. Remove the 3 bolts and the coolant pump pulley.
^ To install, tighten to 20 Nm (15 lb-ft).
6. Remove the 3 bolts and the coolant pump.
^ Remove and discard the O-ring seal.
^ To install, tighten to 10 Nm (89 lb-inch).
7. To install, reverse the removal procedure.
^ Lubricate the O-ring seal with clean engine coolant.
8. Fill and bleed the cooling system.
