Removal and Replacement

Engine Mount

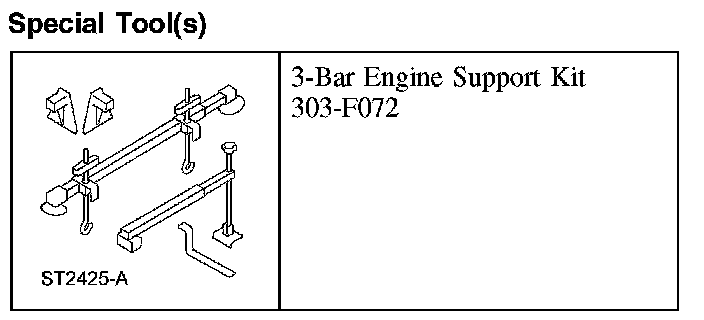

Special Tool(s):

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the engine coolant degas bottle.
3. Install the special tool.

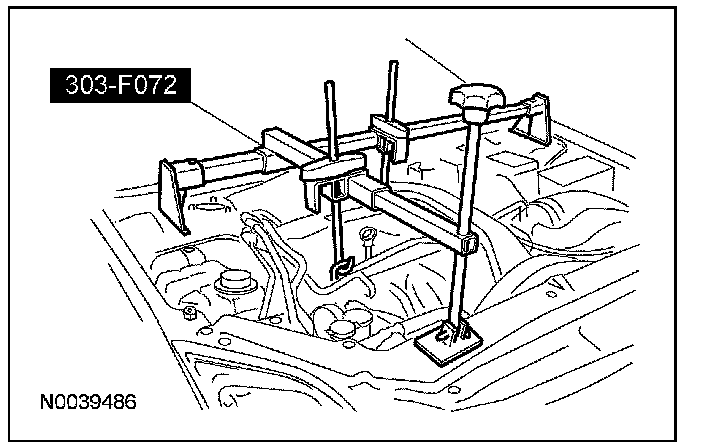

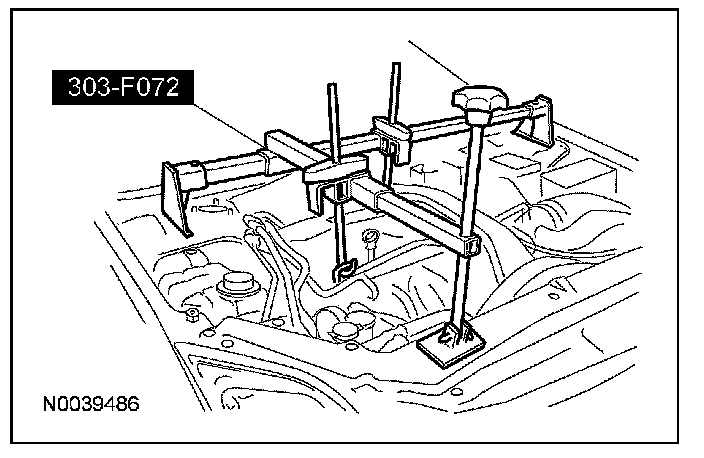

^ Attach the special tool to the front and rear engine lifting eyes.

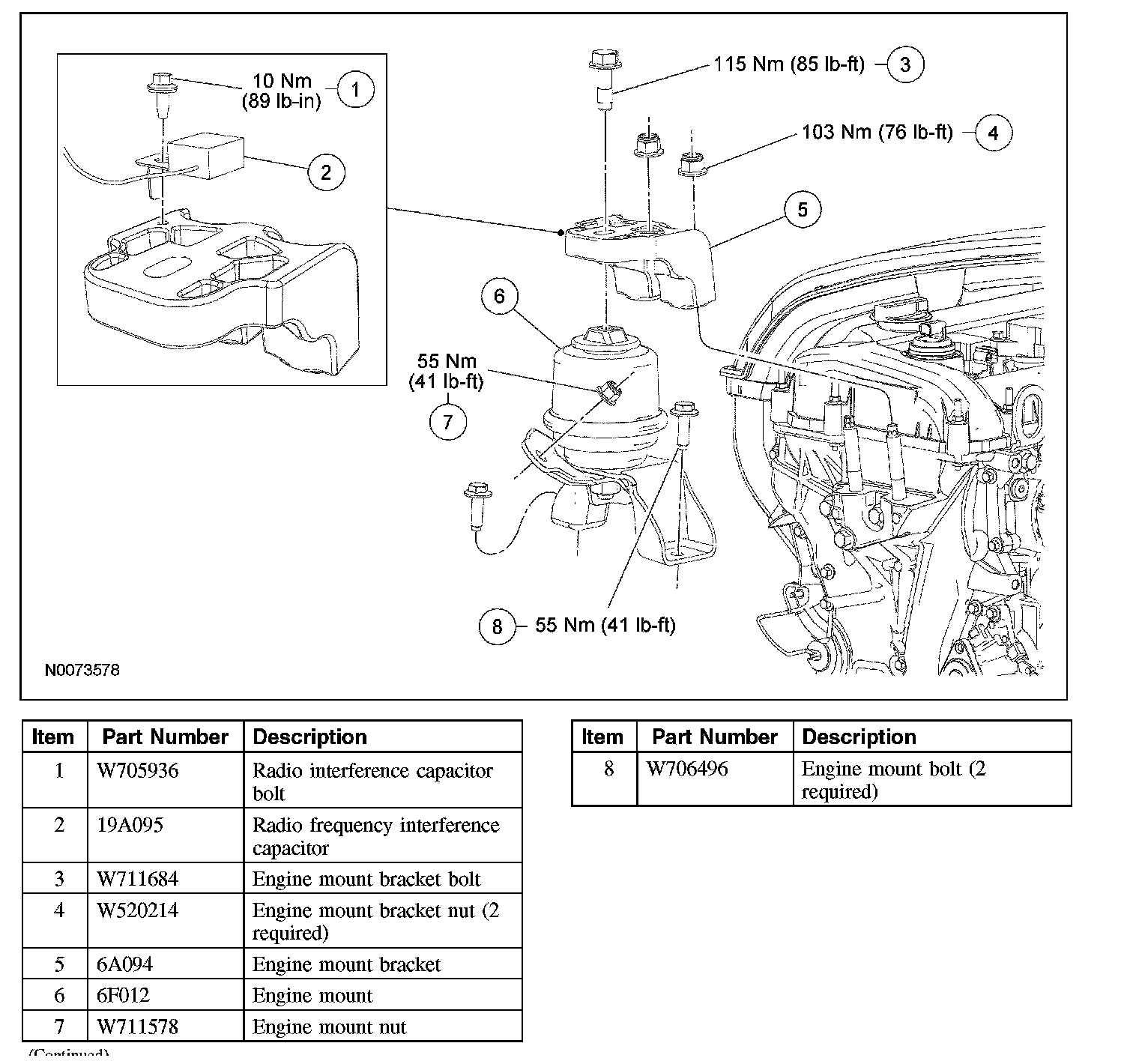

4. Remove the bolt and the radio frequency interference capacitor.
^ To install, tighten to 10 Nm (89 lb-inch).
5. Remove the engine mount bracket bolt.
^ To install, tighten to 115 Nm (85 lb-ft).
6. Use the special tool to raise the engine 25 mm (0.98 inch).





7. Remove the 2 engine mount bracket nuts.
^ To install, tighten to 103 Nm (76 lb-ft).
8. Remove the nut, 2 bolts and the engine mount.
^ To install, tighten to 55 Nm (41 lb-ft).

9. NOTE: If the engine mount bracket is to be removed, the engine must be lowered to avoid contact between the A/C tubes and the engine mount bracket.

Use the special tool to lower the engine 25 mm (0.98 inch).
^ Remove the engine mount bracket.
10. To install, reverse the removal procedure.
