Installation

Valve Springs

Installation

1. NOTE: Check the seating of the valve collet.

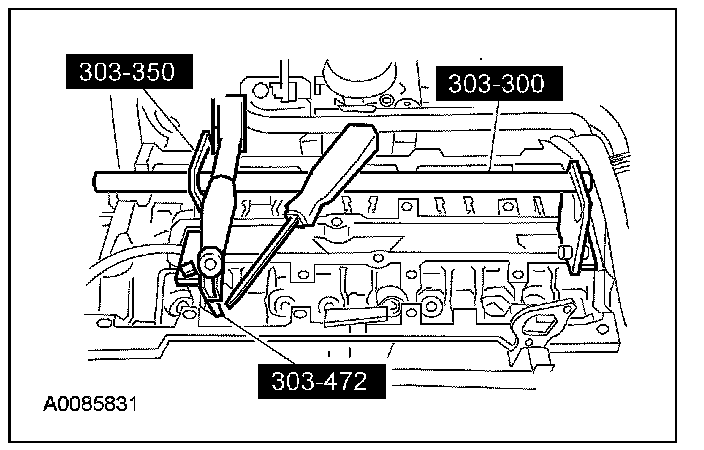

Using the special tools, install the valve spring.
^ Insert the valve spring and the valve spring retainer.
^ Compress the valve spring and install the valve collet using some grease and a small screwdriver.





2. Disconnect the compressed air supply.
3. Repeat the appropriate removal and installation steps for all of the other cylinders.
4. Install the spark plugs.
5. Coat the valve tappets with clean engine oil and insert them.
6. Install the camshafts.
