Thermostat Bypass Hose: Service and Repair

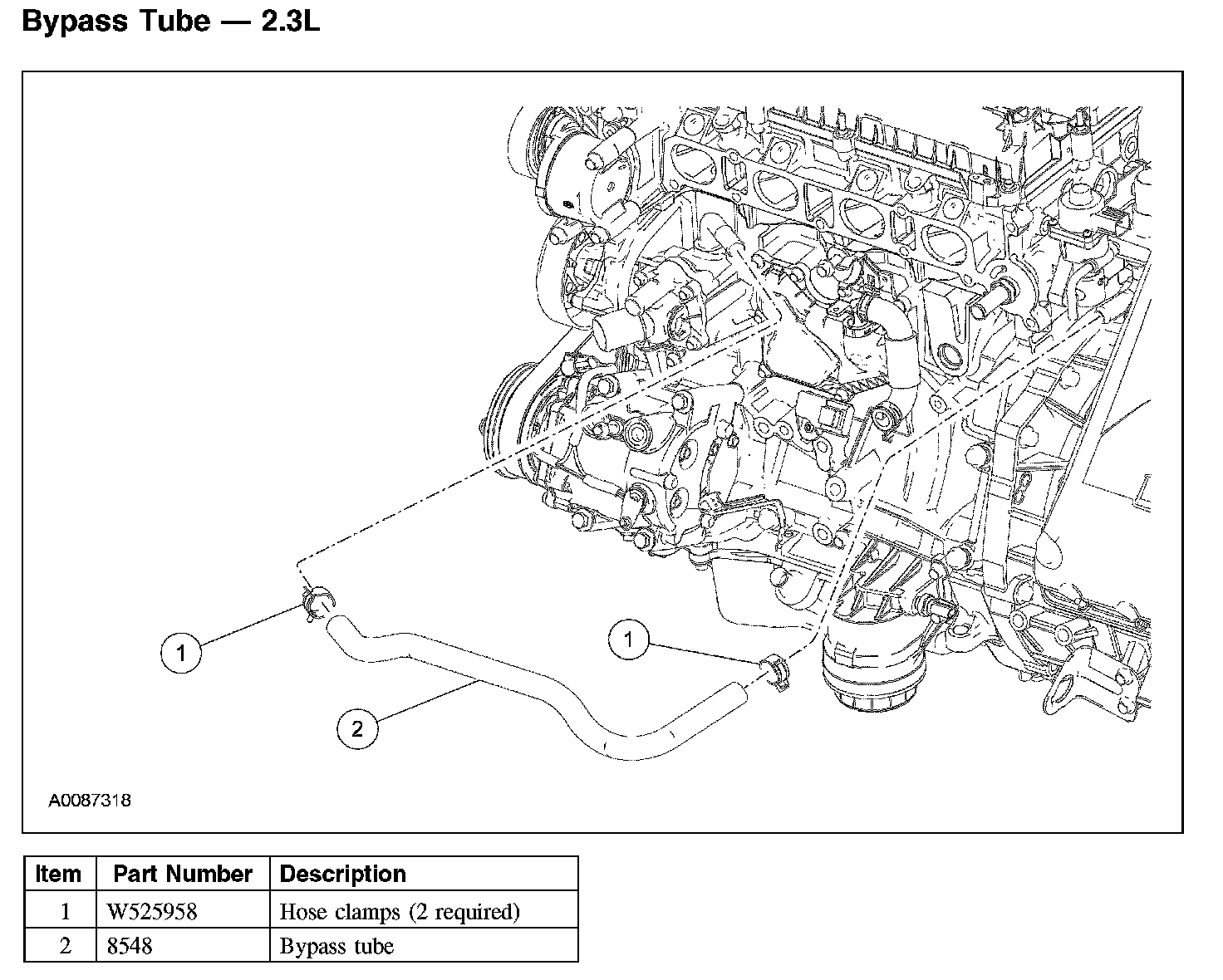

Bypass Tube - 2.3L

Bypass Tube - 2.3L:

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Drain the cooling system.
3. Remove the intake manifold.
4. Disconnect and remove the coolant bypass tube from the engine.
5. To install, reverse the removal procedure.
6. Fill and bleed the cooling system.
