Oil Pick Up/Strainer

Engine Lubrication Components - Exploded View

Oil Pan, Oil Pump Screen and Pickup Tube

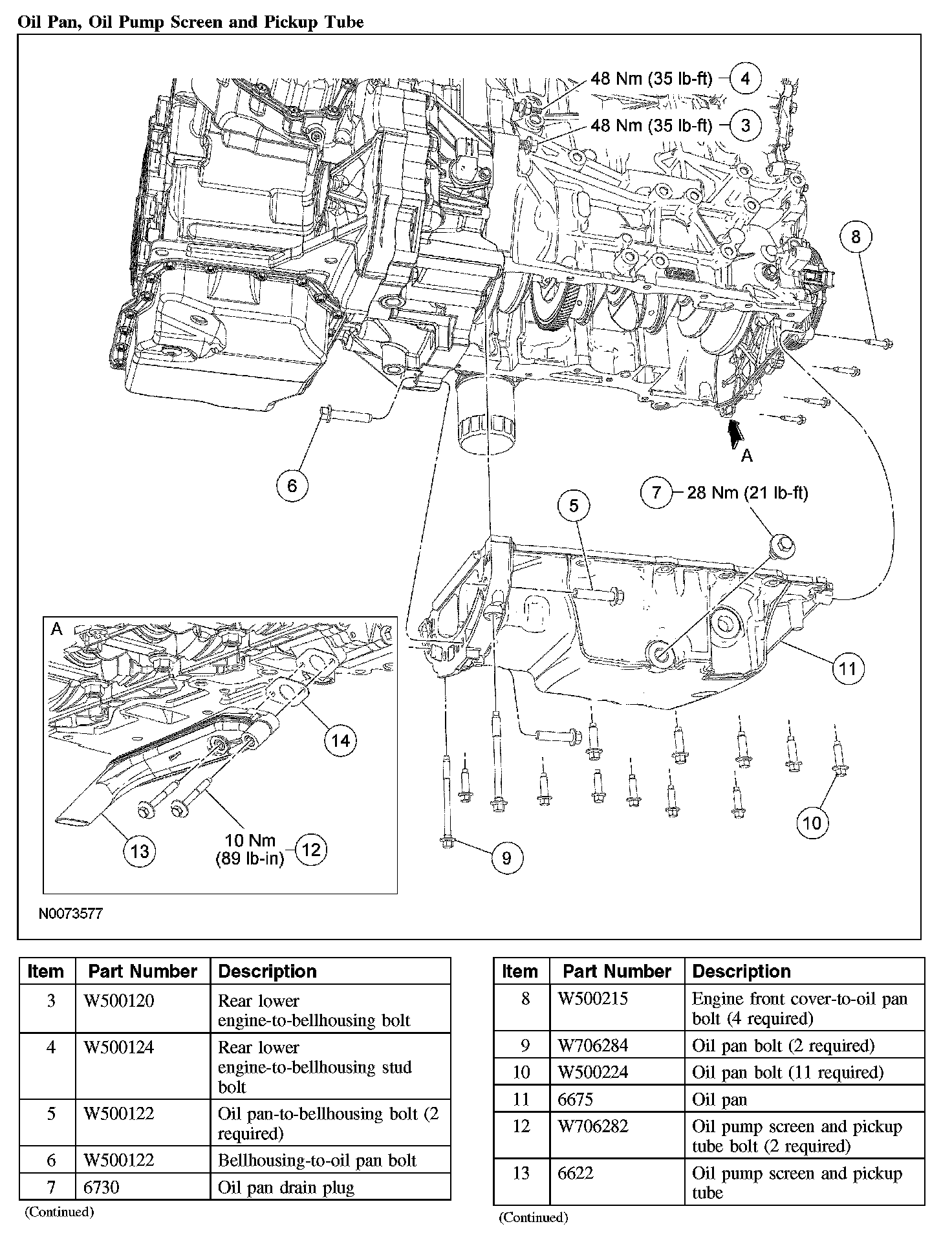

Oil Pan, Oil Pump Screen and Pickup Tube (Part 1):

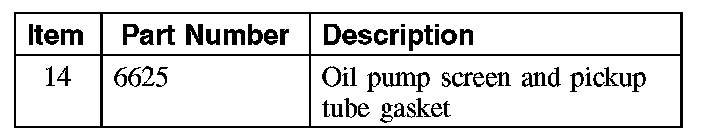

Oil Pan, Oil Pump Screen and Pickup Tube (Part 2):
