Front Bumper Reinforcement: Service and Repair

BUMPER - FRONT

Exploded View

Ford Fusion:

Mercury Milan:

MKZ:

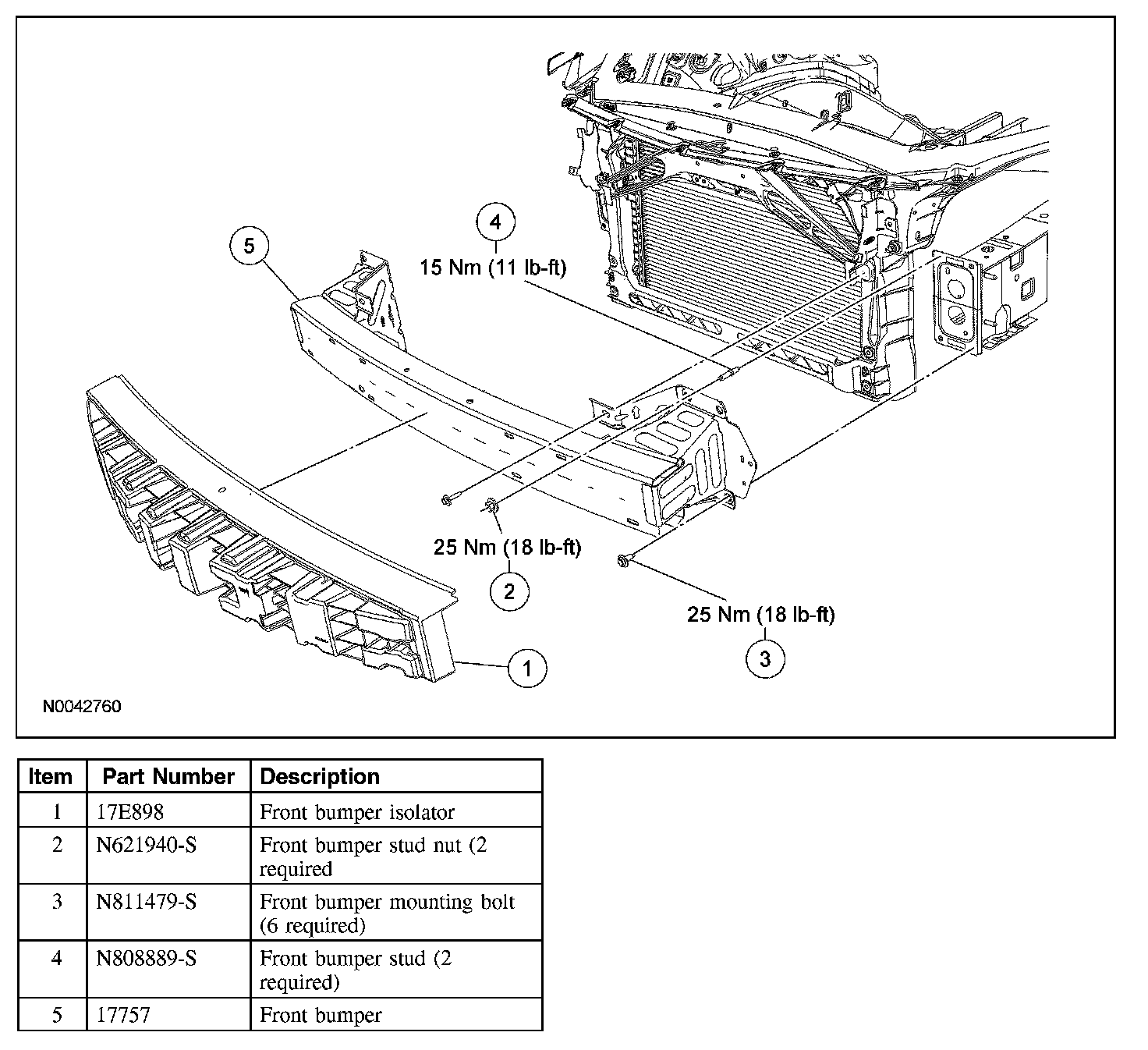

Removal and Installation
1. Remove the front bumper cover.
2. Remove the front bumper isolator from the front bumper.
- Pull the isolator rearward while releasing the retainers.

3. Remove the 6 front bumper bolts (3 each side).
- To install, tighten to 25 Nm (18 lb-ft).

4. Remove the 4 front bumper bolts from the radiator support (2 each side).
5. Remove the 2 front bumper stud nuts.
- To install, tighten to 25 Nm (18 lb-ft).

6. Remove the front bumper.
7. To install, reverse the removal procedure.
