PINPOINT TEST B: DTCS C1700, C1703, C1706 AND C1709 - PARKING AID SENSOR CIRCUIT FAILURE OR BLOCKAGE

Normal Operation
Voltage is supplied to the parking aid sensors from the parking aid module (PAM) on circuit LMP07 (BU/WH). The PAM supplies ground to the parking aid sensors on circuit RMP07 (GN/WH). The PAM receives a signal from the parking aid sensors on circuits VMP14 (WH/OG), VMP15 (YE/GN), VMP16 (YE/GY) and VMP17 (YE/OG).







This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Parking aid sensor(s)
- Parking aid bumper harness
- PAM

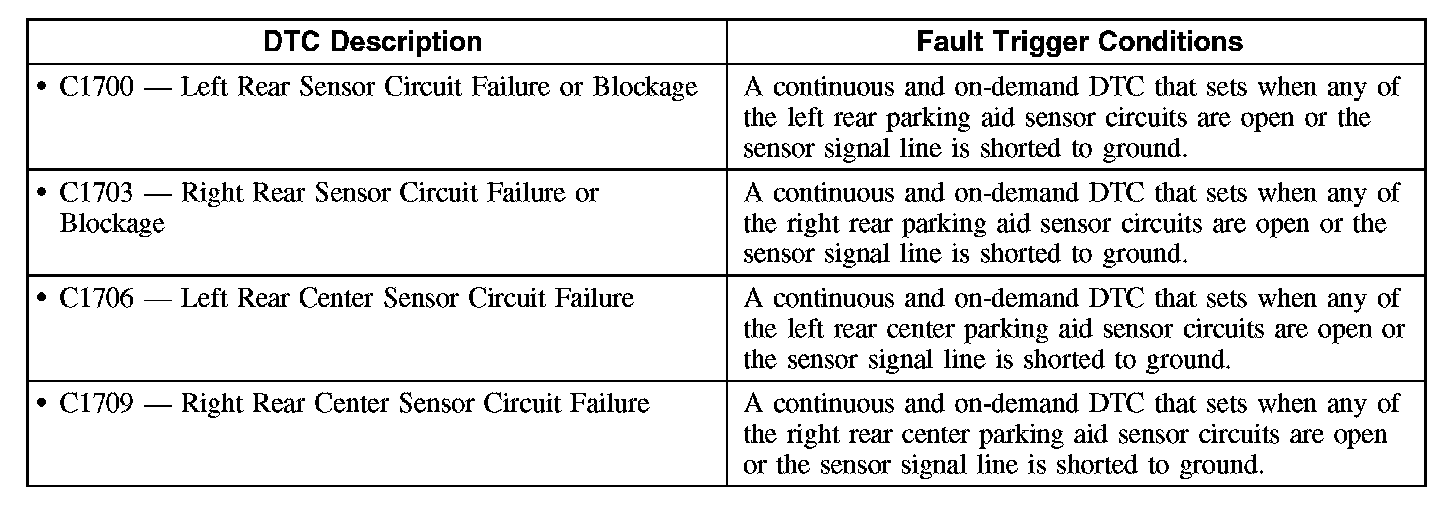

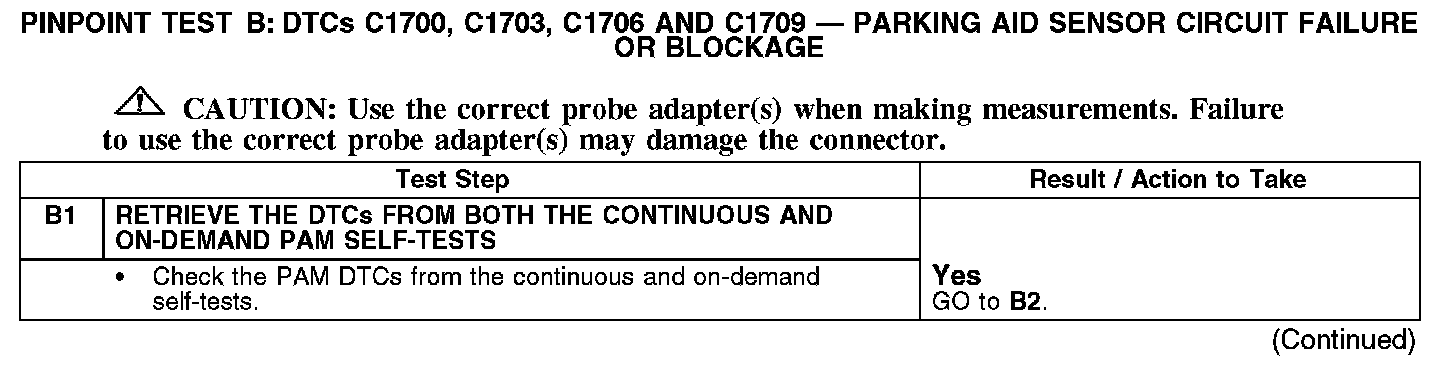

B1:

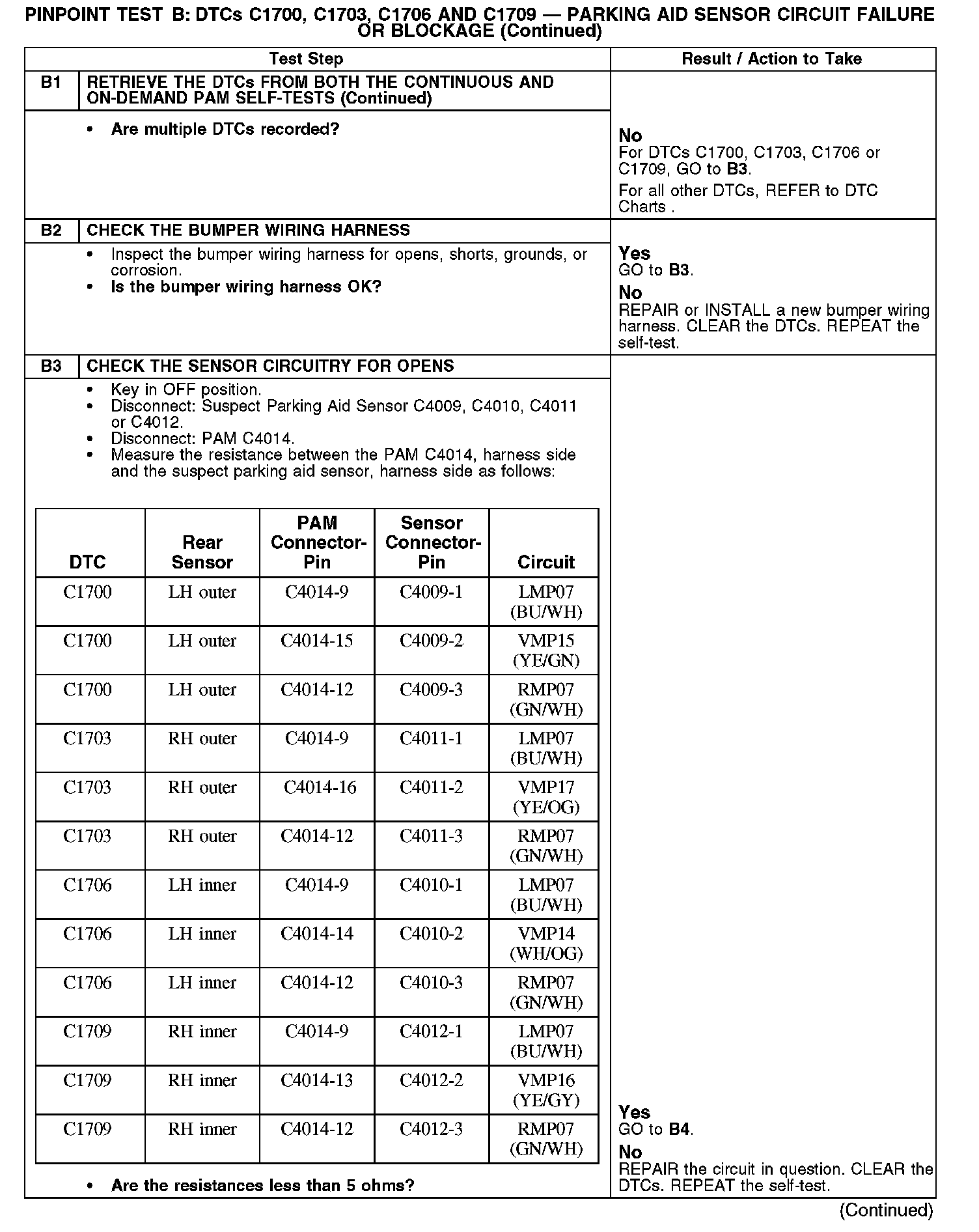

B1-B3:

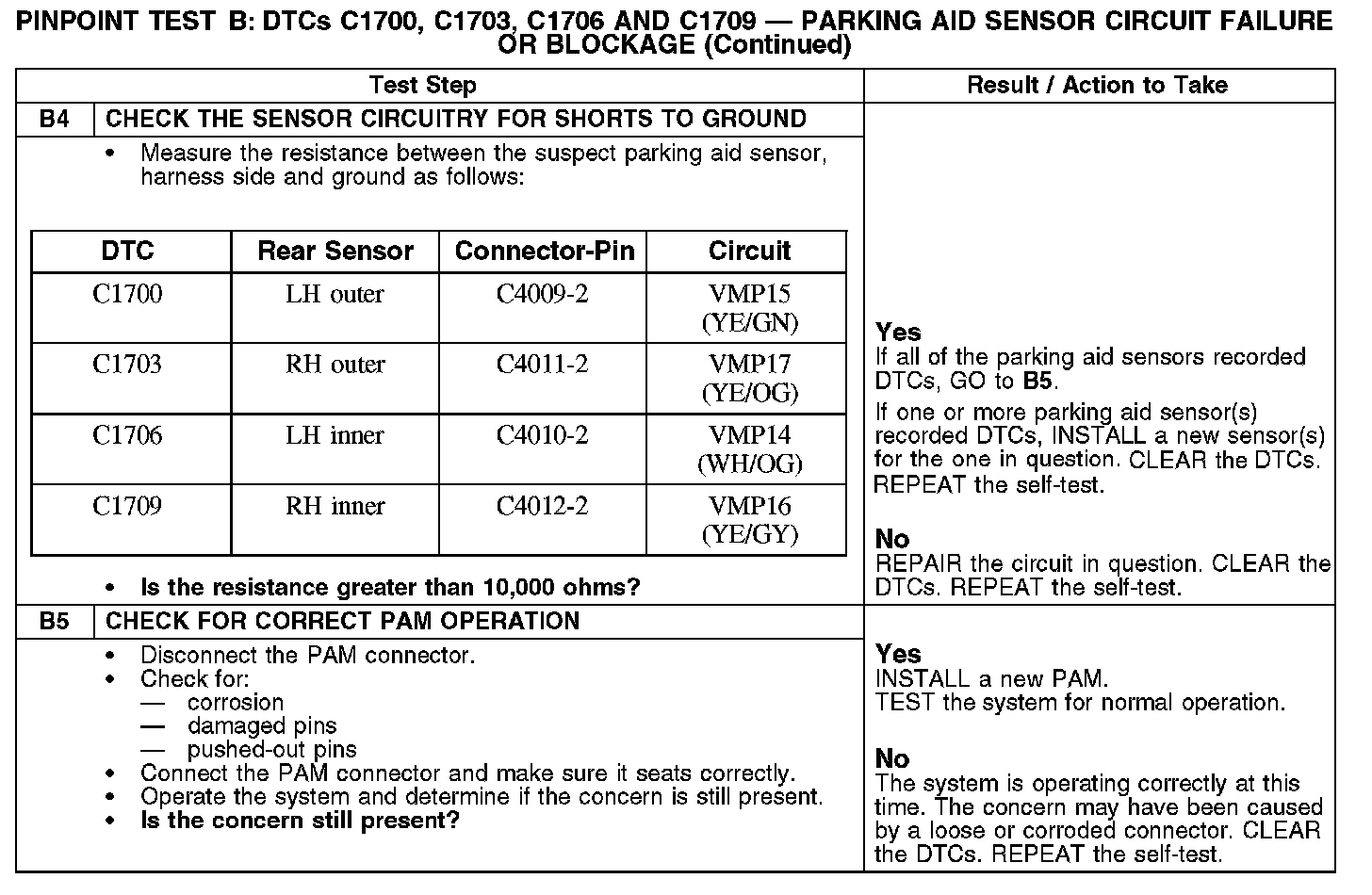

B4-B5:
