Rear Door Window Regulator: Service and Repair

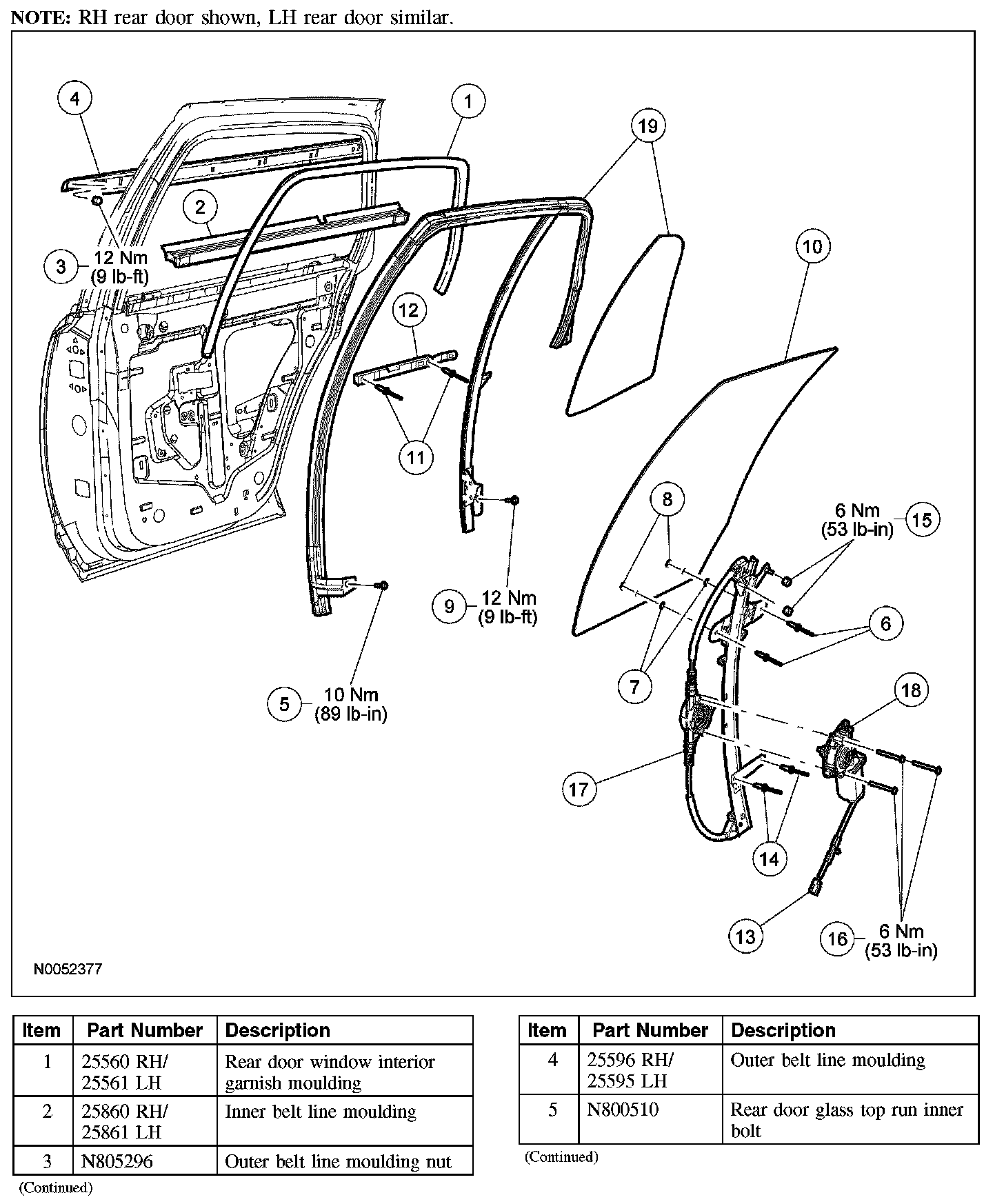

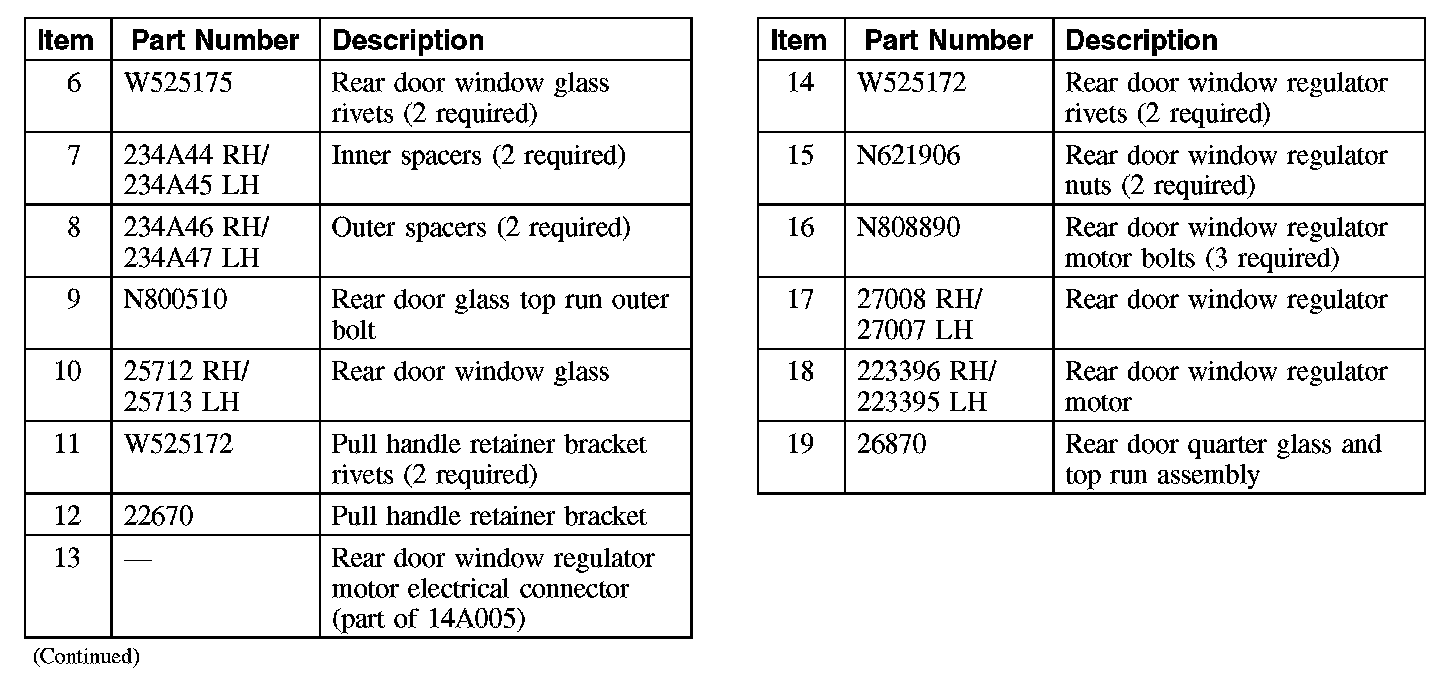

WINDOW REGULATOR AND MOTOR - REAR DOORExploded View
Part 1:
Part 2:

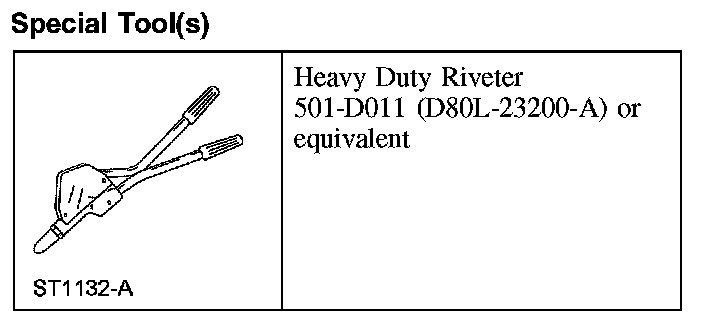

Special Tool(s)
Special Tool(s):
Removal and Installation
1. Remove the rear door window glass.
2. Remove the 2 rivets and the pull handle retainer bracket.
3. Disconnect the rear door window regulator motor electrical connector.

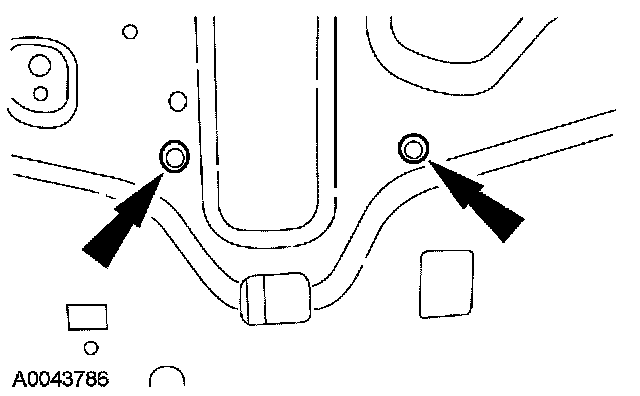

4. Remove the 2 rear door window regulator rivets.

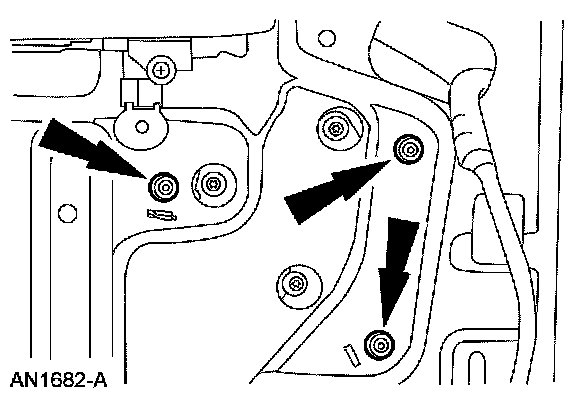

5. Remove the 2 rear door window regulator nuts.
- To install, tighten to 6 Nm (53 lb-in).
6. Remove the 3 rear door window regulator motor bolts and the rear door window regulator.
- To install, tighten to 6 Nm (53 lb-in).
7. To install, reverse the removal procedure.
- Use the special tool to install the rivets.
