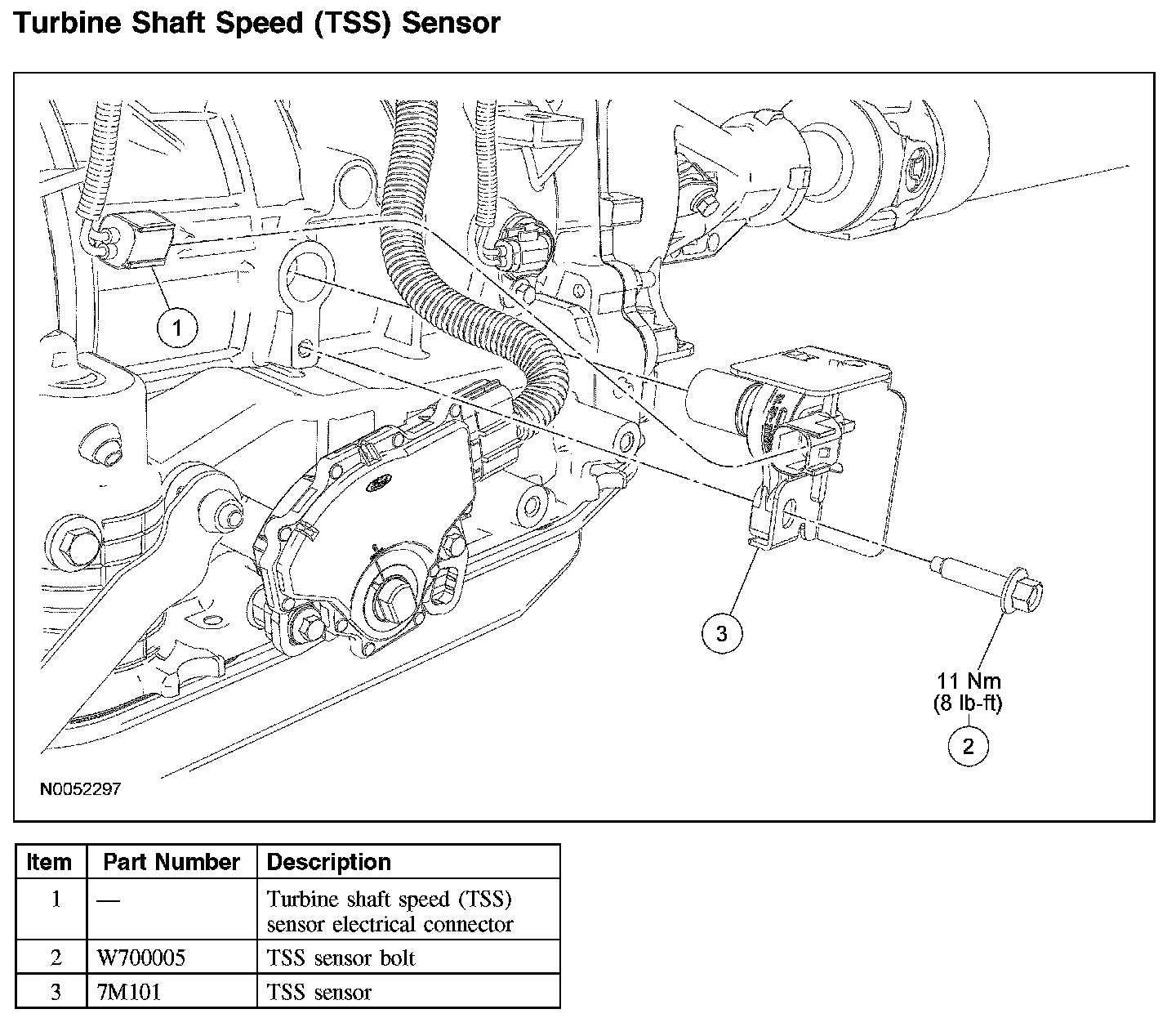

Turbine Shaft Speed (TSS) Sensor

Turbine Shaft Speed (TSS) Sensor

Turbine Shaft Speed (TSS) Sensor:

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the turbine shaft speed (TSS) sensor electrical connector.
3. Remove the TSS sensor bolt and the sensor.
^ To install, tighten to 11 Nm (8 lb-ft).





4. To install, reverse the removal procedure.
