Test H: The Transmission Control (TC) Switch Does Not Operate Correctly - Floor Shift

PINPOINT TEST H: THE TRANSMISSION CONTROL (TC) SWITCH DOES NOT OPERATE CORRECTLY - FLOOR SHIFT

H1-H2:

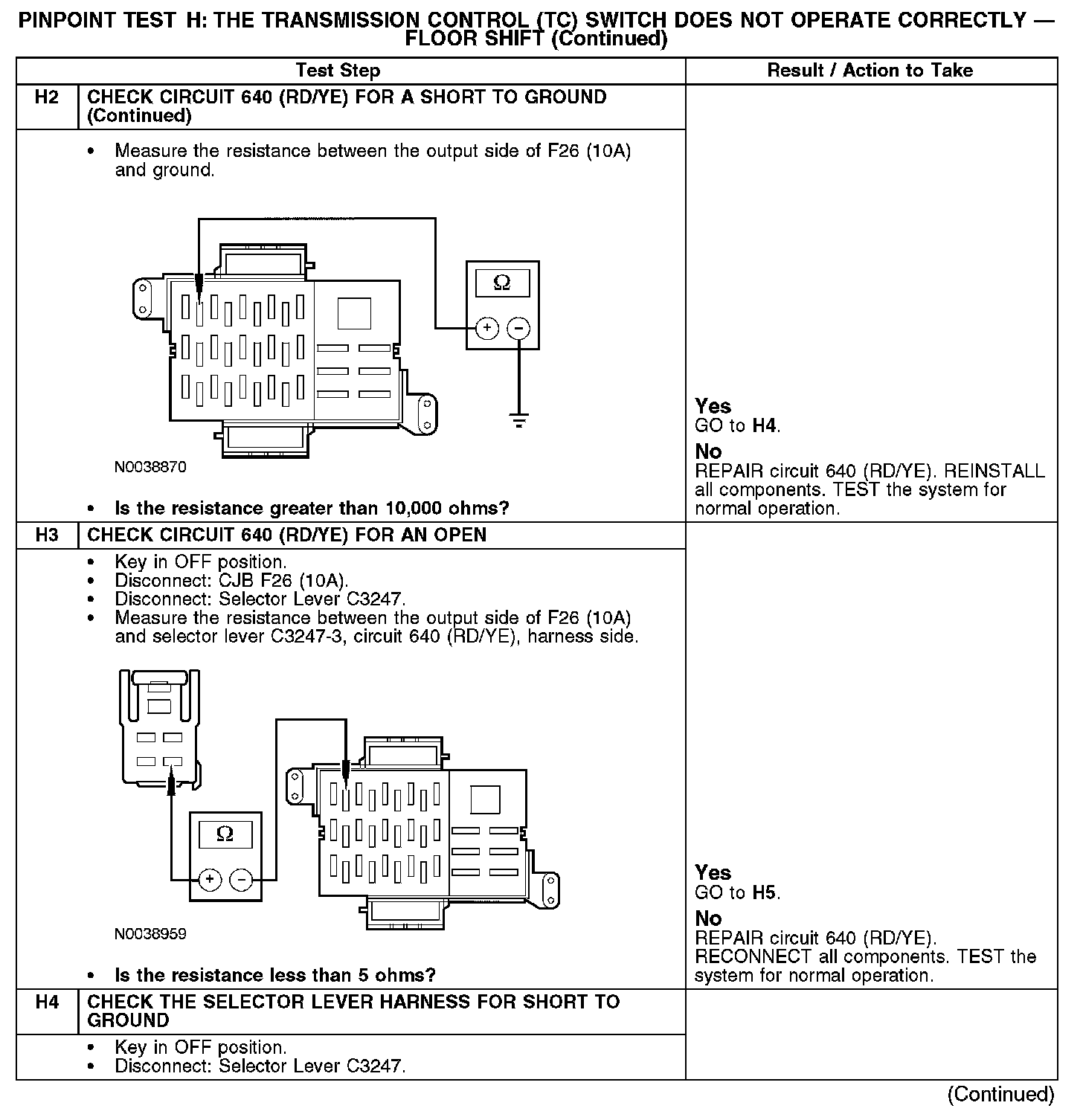

H2 (Continued)-H4:

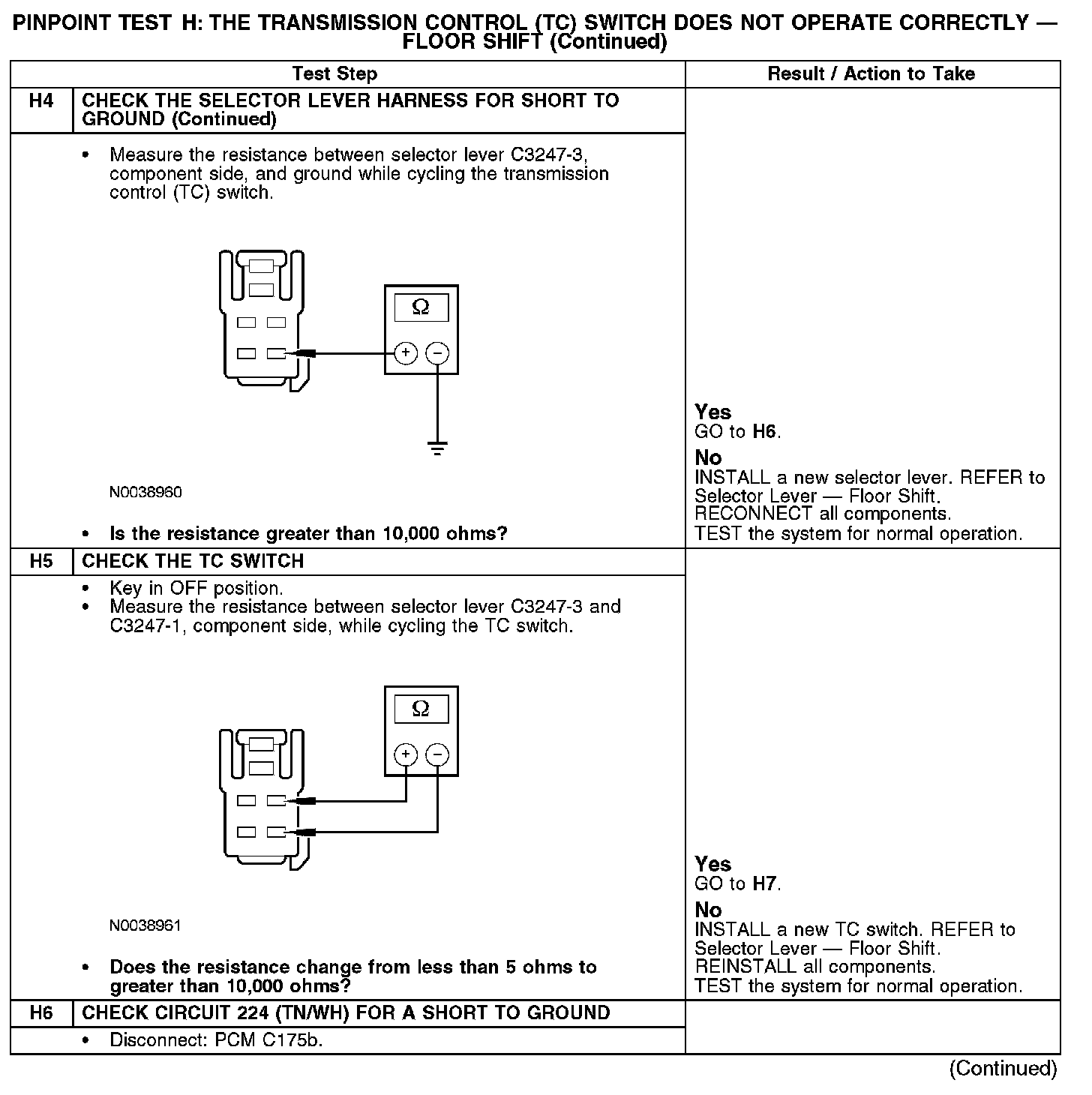

H4 (Continued)-H6:

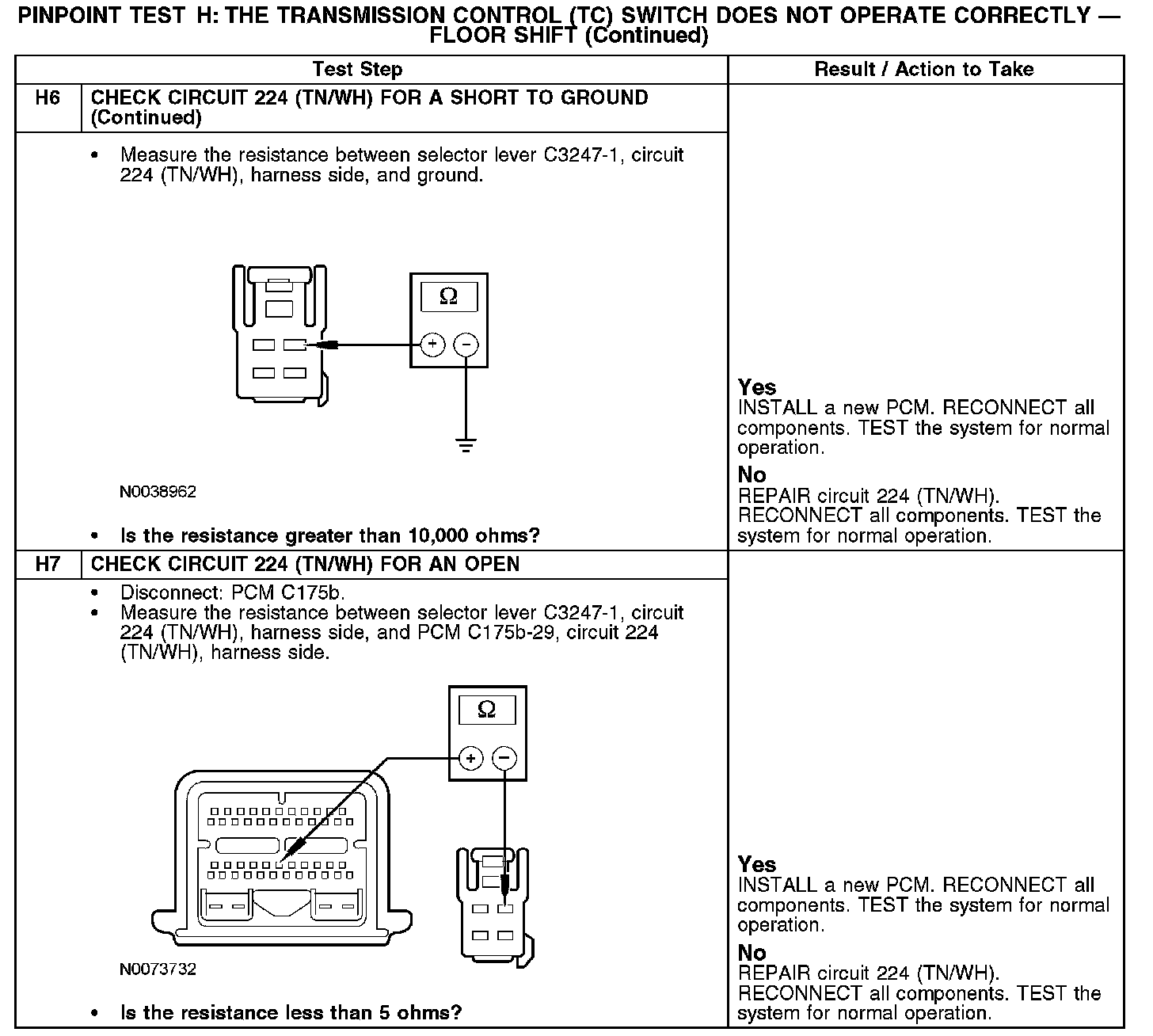

H6 (Continued)-H7:
