Test D: The Transmission Control (TC) Switch Does Not Operate Correctly - Column Shift

PINPOINT TEST D: THE TRANSMISSION CONTROL (TC) SWITCH DOES NOT OPERATE CORRECTLY - COLUMN SHIFT

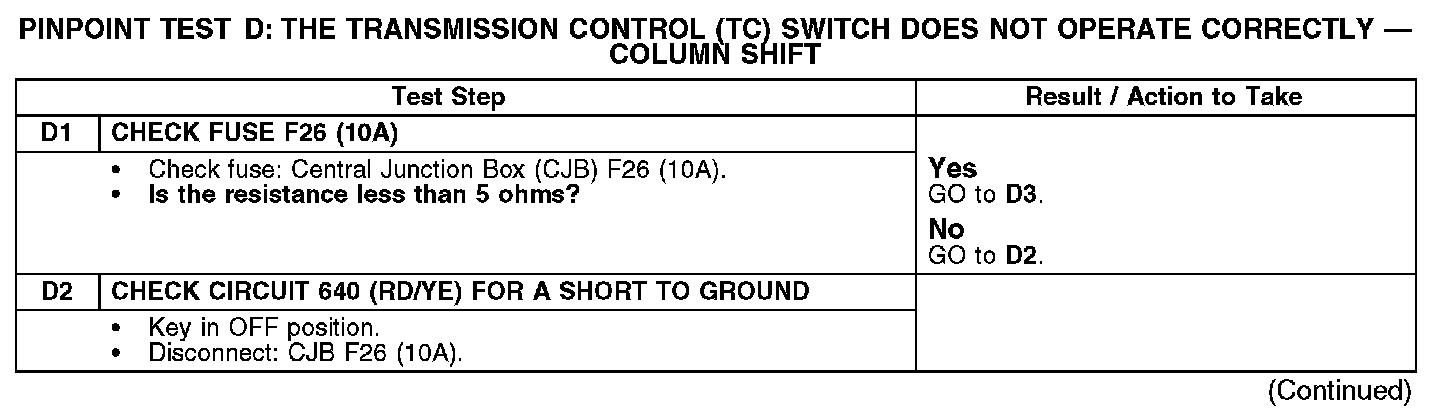

D1-D2:

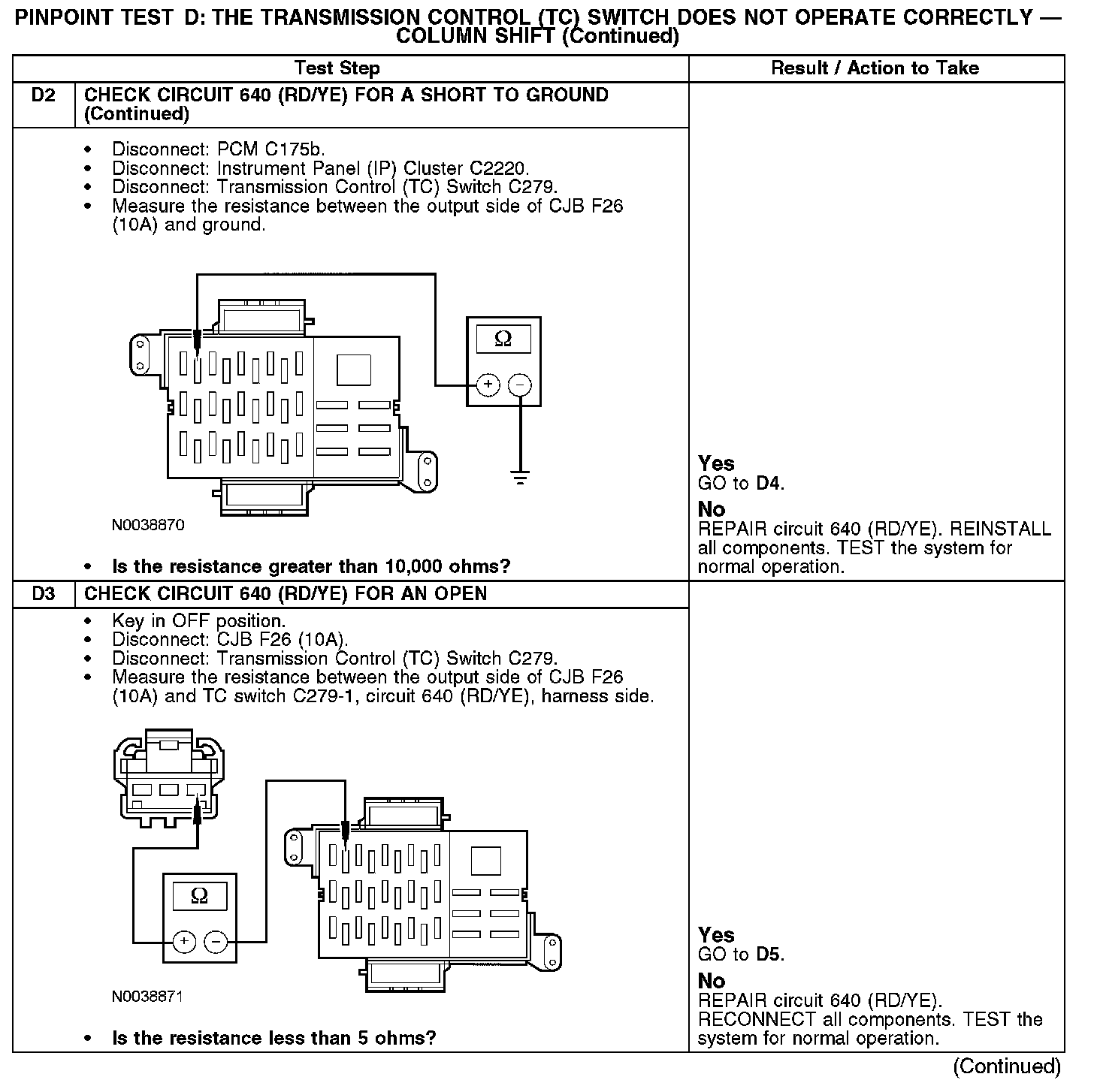

D2 (Continued)-D3:

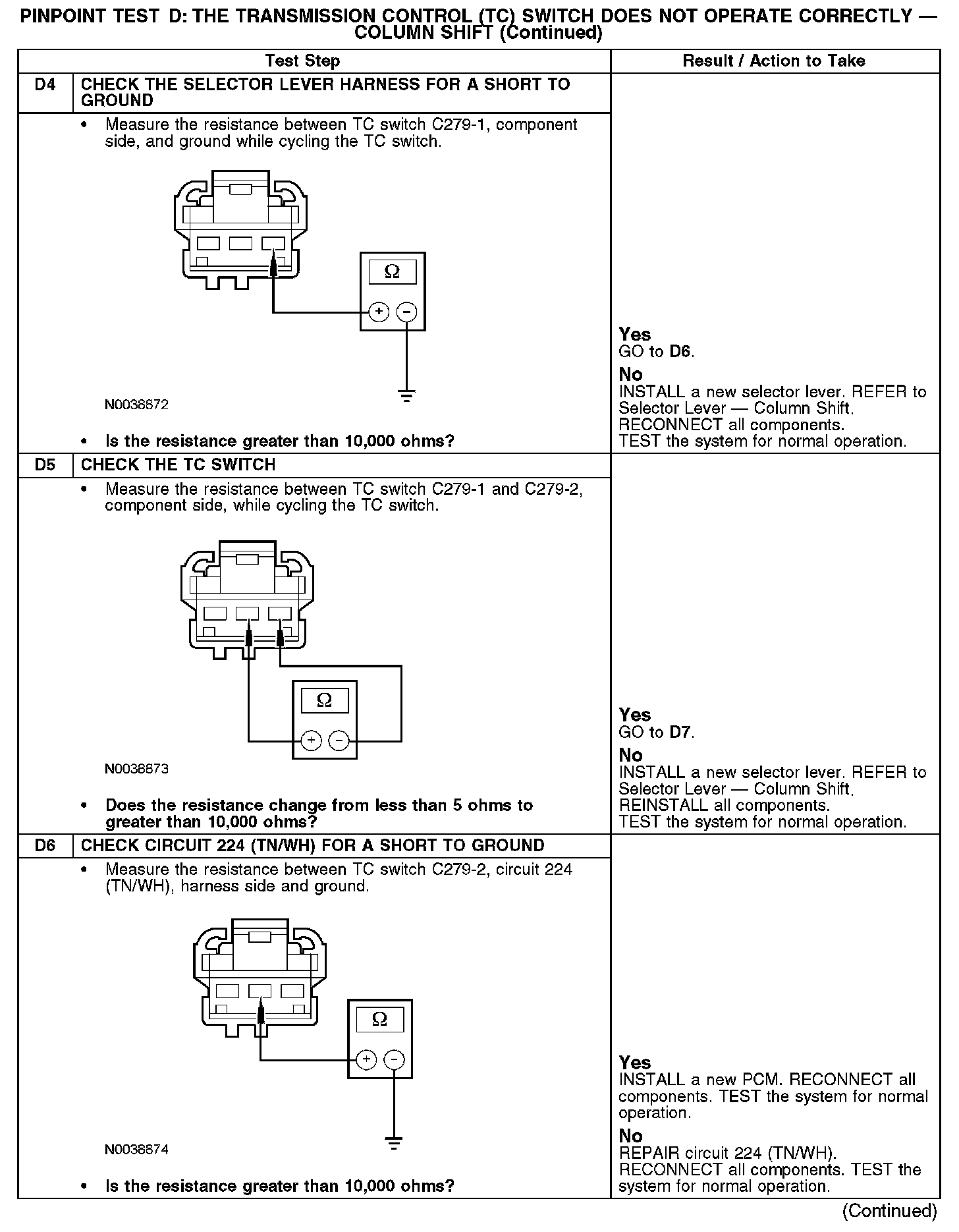

D4-D6:

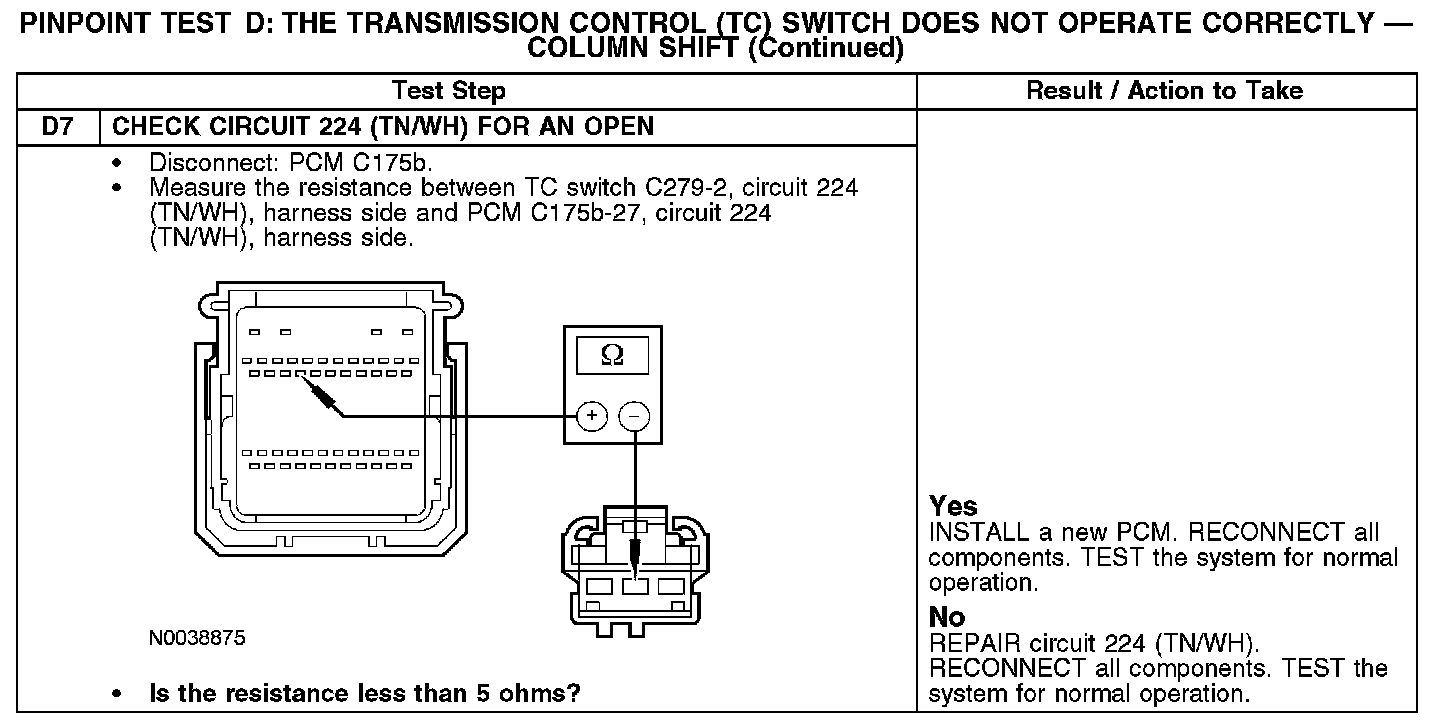

D7:
