Home >> Mercury >> 2008 >> Grand Marquis V8-4.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Pinpoint Tests >> External Controls >> Test C: The Control Linkage Is Binding

Test C: The Control Linkage Is Binding

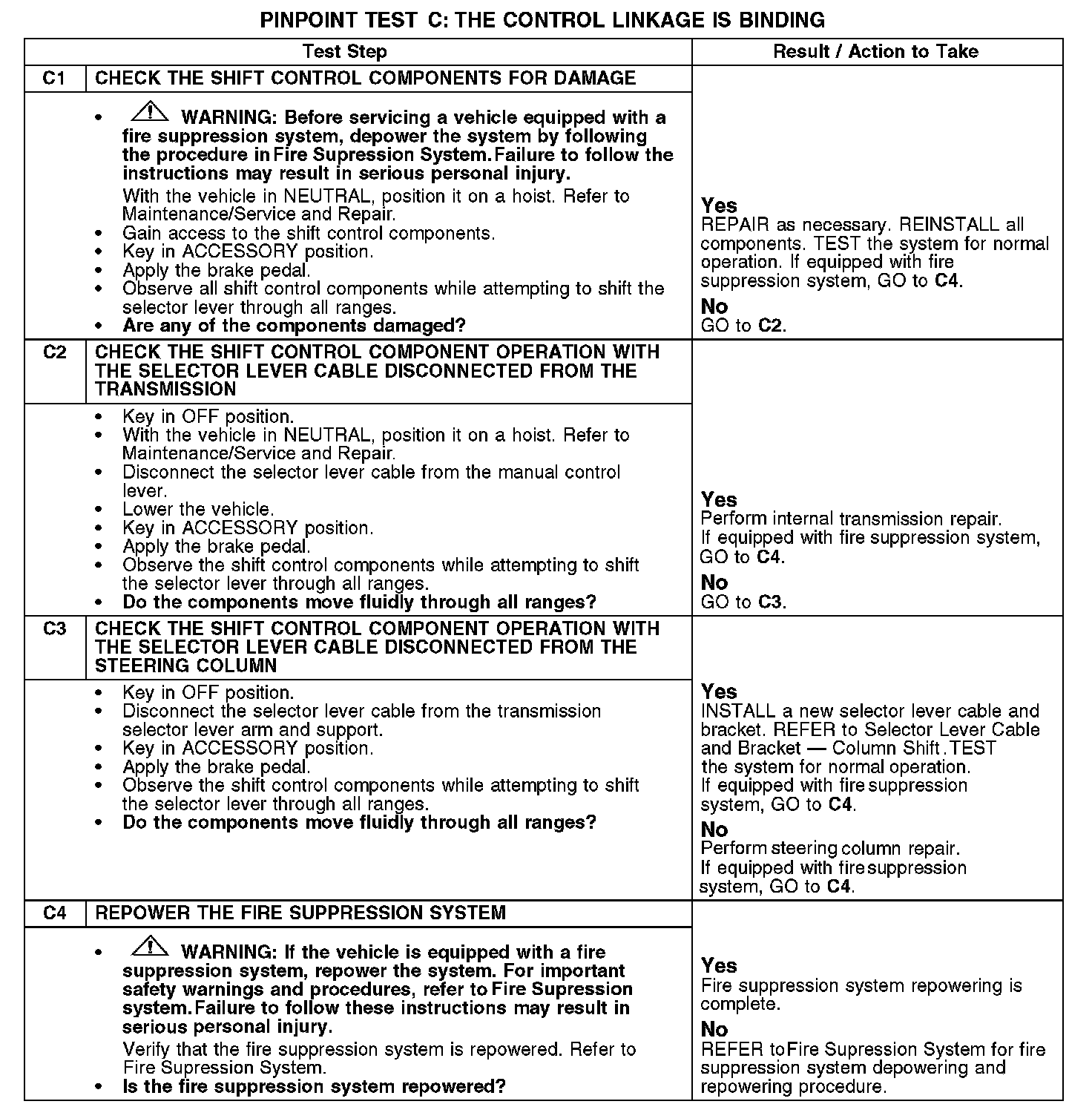

PINPOINT TEST C: THE CONTROL LINKAGE IS BINDING

C1-C4:
