Line Pressure Test
Line Pressure TestWARNING: If equipped with fire suppression system, refer to Fire Suppression System for Important Safety Warnings. Failure to follow this instruction may result in serious personal injury.
CAUTION: Carry out the Line Pressure Test prior to carrying out the Stall Speed Test. If the line pressure is low at stall, do not carry out Stall Speed Test or further transmission damage will occur. Do not maintain WOT in any transmission range for more than 5 seconds.
This test verifies that the line pressure is within specification.
1. Connect pressure gauge to line pressure tap.
2. Start engine and check line pressures. Refer to the Line Pressure Chart to determine if line pressure is within specification.

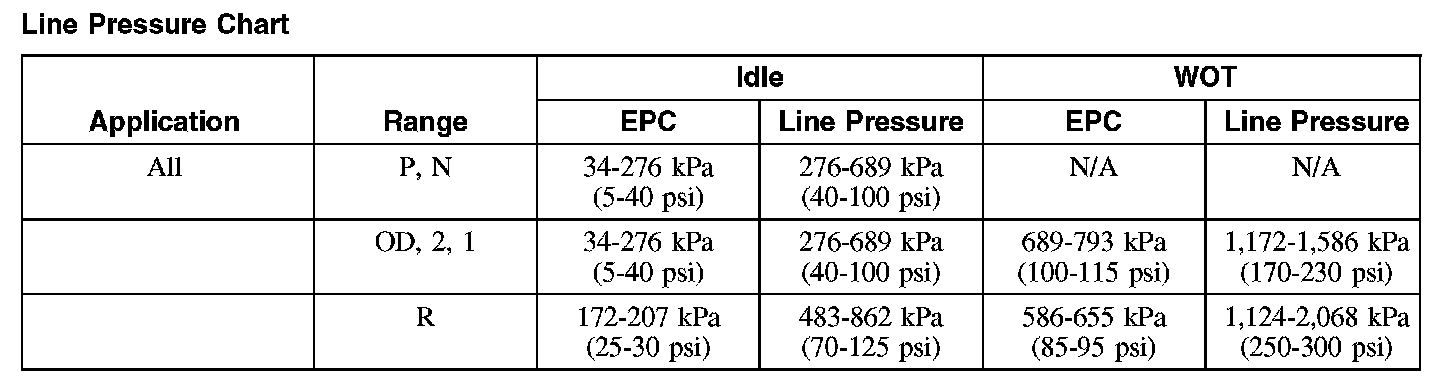

Line Pressure Chart:
3. Place the ignition switch in the OFF position. If line pressure is not within specification, check EPC pressure.
4. Connect pressure gauge to EPC pressure tap.
5. Start engine and check EPC pressure. Refer to the Line Pressure Chart for specifications.
6. If EPC pressure is not within specification, GO to Pinpoint Test E to diagnose EPC operation. If EPC operation is OK, refer to the Line Pressure Diagnosis Chart for line pressure concern causes. Test E: Output Shaft Speed (OSS) Sensors
7. When the pressure tests are completed, install the pressure tap plugs.
^ Tighten to 12 Nm (9 lb-ft).
Line Pressure Diagnosis Chart

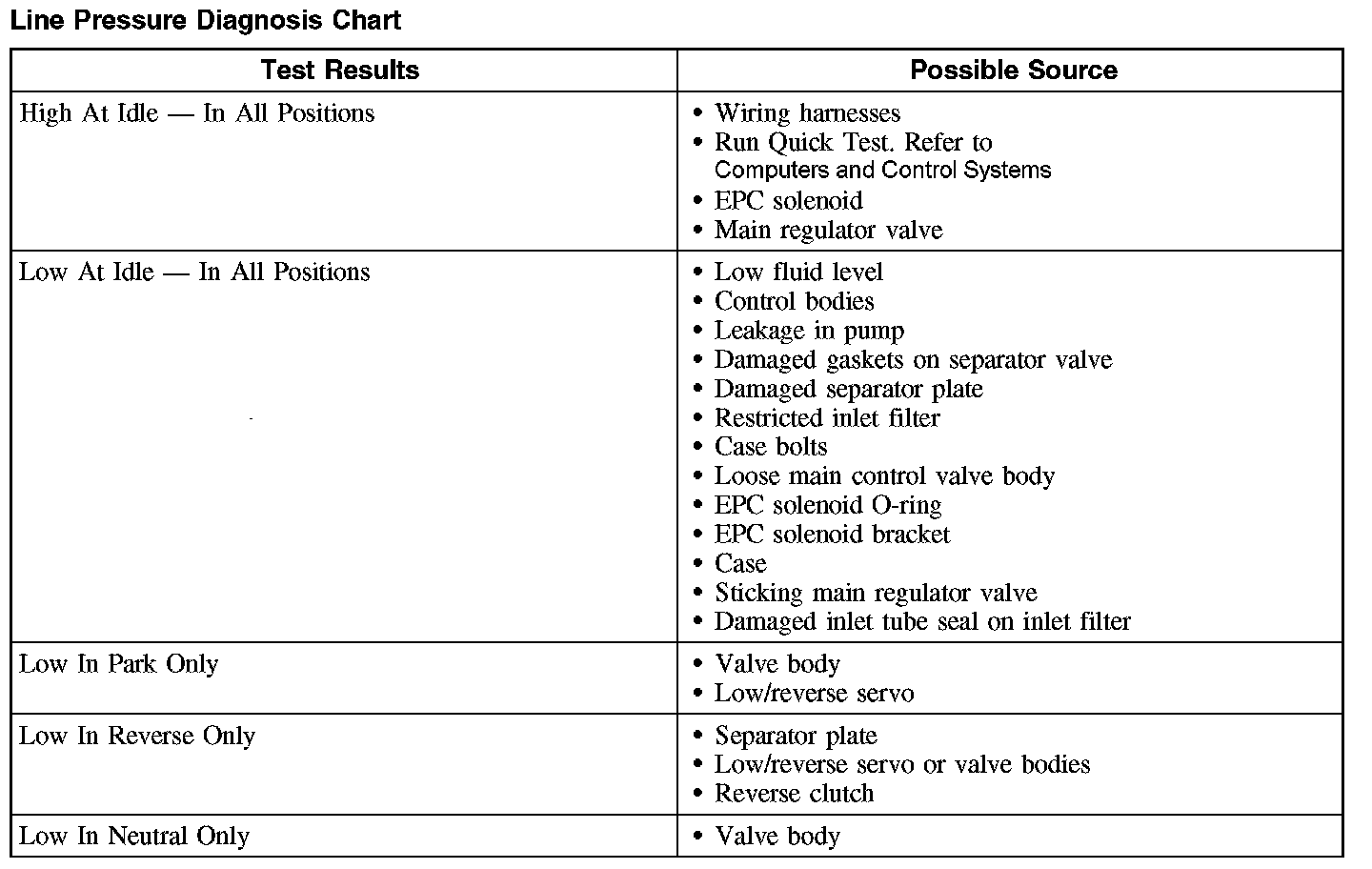

Line Pressure Diagnosis Chart (Part 1):

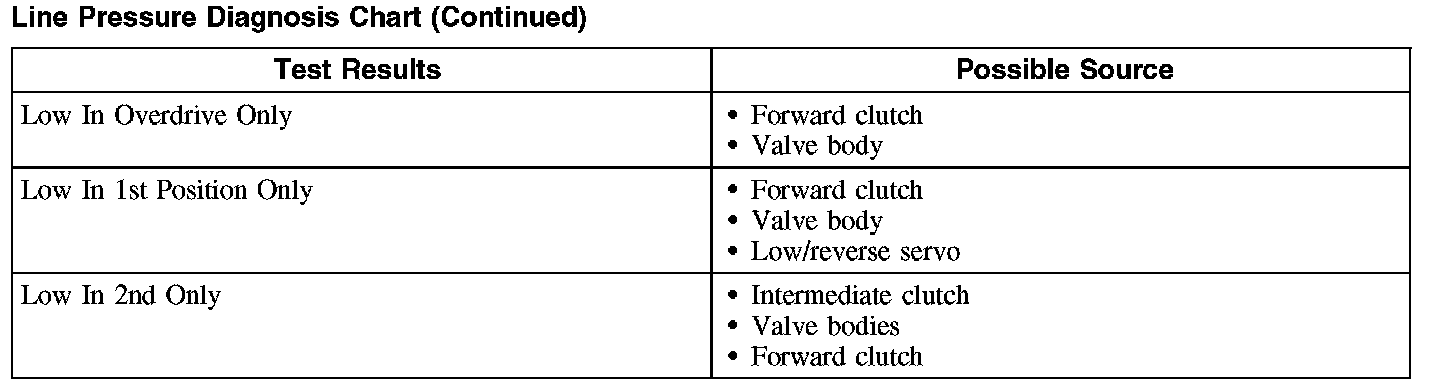

Line Pressure Diagnosis Chart (Part 2):
