Electrical Specifications

Sensor Resistance Readings

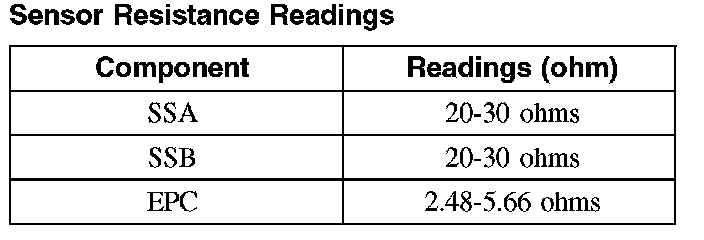

Sensor Resistance Readings (Part 1):

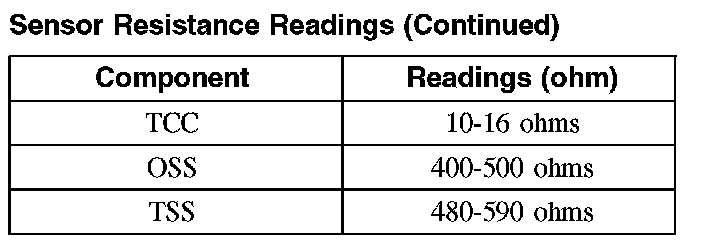

Sensor Resistance Readings (Part 2):
