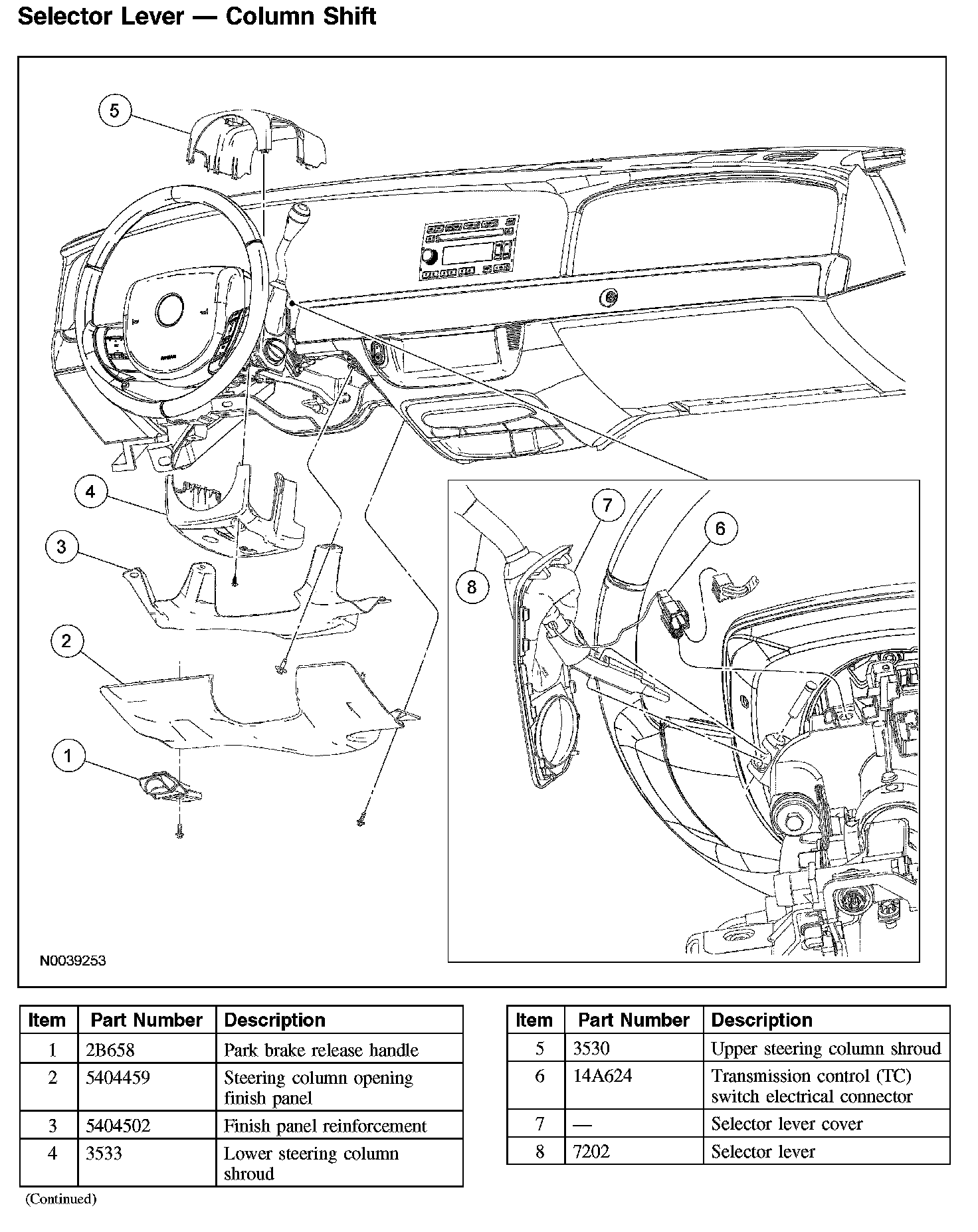

Selector Lever - Column Shift

Selector Lever - Column Shift

Selector Lever - Column Shift:

Removal and Installation

1. WARNING: Always deplete the backup power supply before repairing or installing any new front or side air bag supplemental restraint system (SRS) component and before servicing, removing, installing, adjusting or striking components near the front or side impact sensors or the restraints control module (RCM). Nearby components include doors, instrument panel, console, door latches, strikers, seats and hood latches.

Refer to the Description and Operation portion of Air Bag Systems for location of the RCM and impact sensor(s).

To deplete the backup power supply energy, disconnect the battery ground cable and wait at least 1 minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).

Failure to follow these instructions may result in serious personal injury or death in the event of an accidental deployment.

Disconnect the battery ground cable. Wait at least one minute before proceeding with the procedure to allow the backup power supply to deplete its energy.

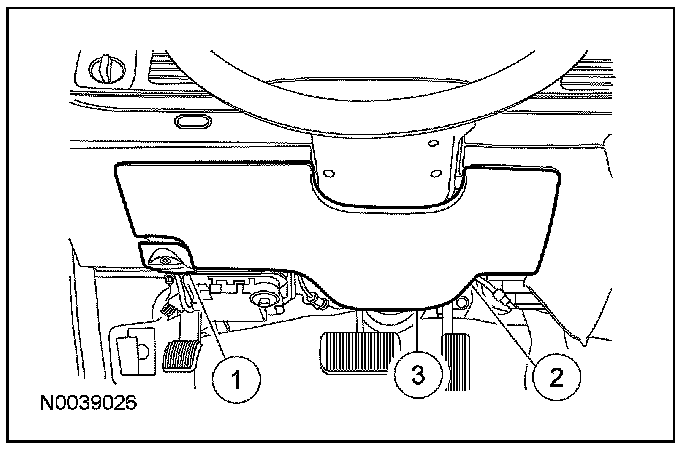

2. Remove the lower steering column opening finish panel.
1. Remove the screw and position the parking brake release handle aside.
2. Remove the screw from the lower steering column opening finish panel.
3. Pull outward to release the retaining clips and remove the lower steering column opening finish panel.

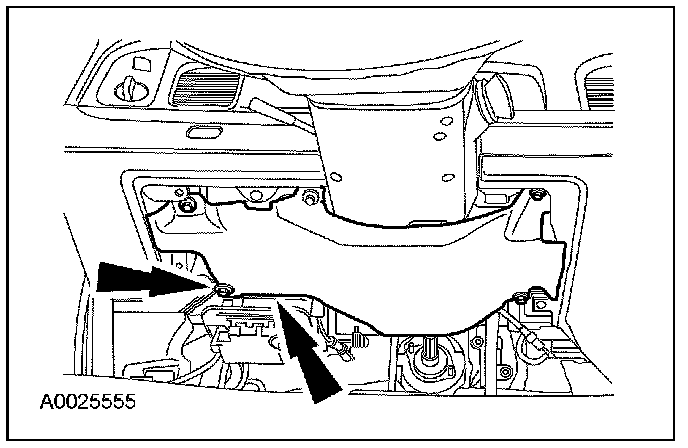

3. Remove the 5 screws and the lower steering column opening finish panel reinforcement.

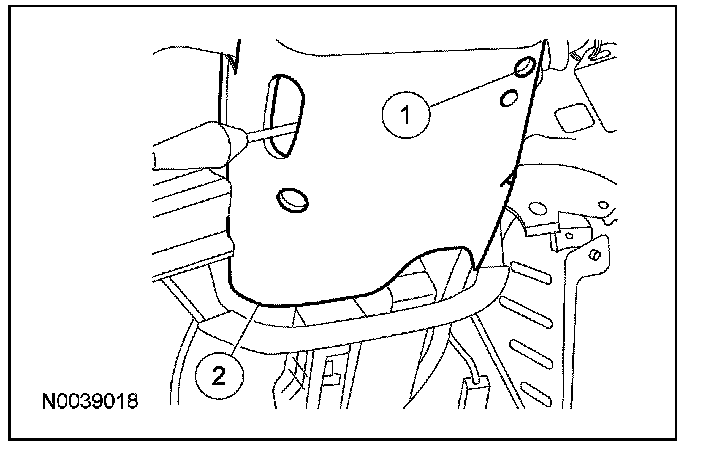

4. Remove the lower steering column shroud.
1. Remove the 3 screws.
2. Remove the lower steering column shroud.

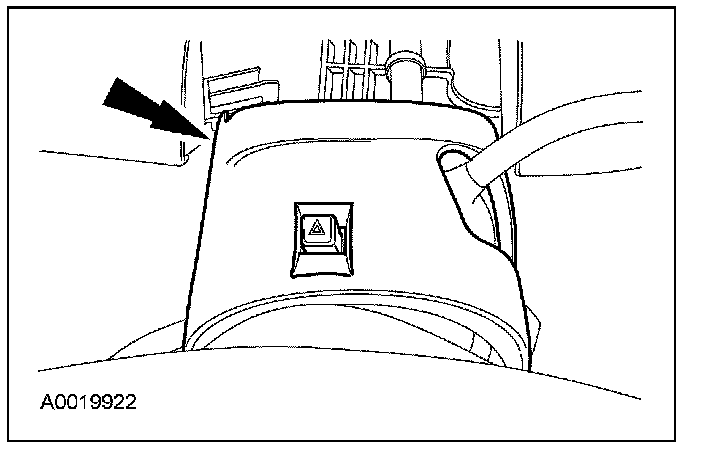

5. Remove the upper steering column shroud.

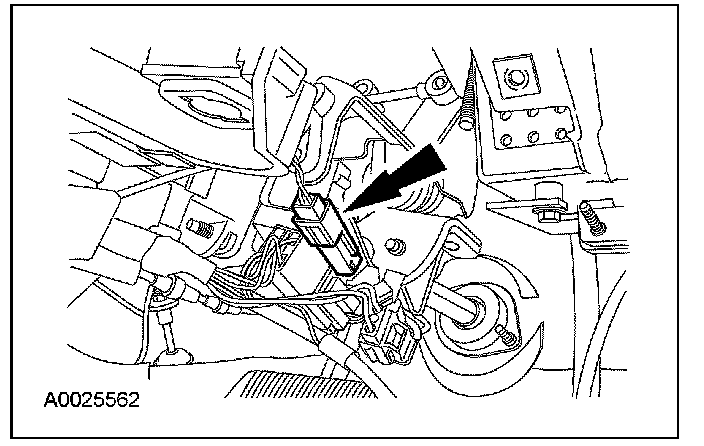

6. Disconnect the transmission control (TC) switch harness connector.

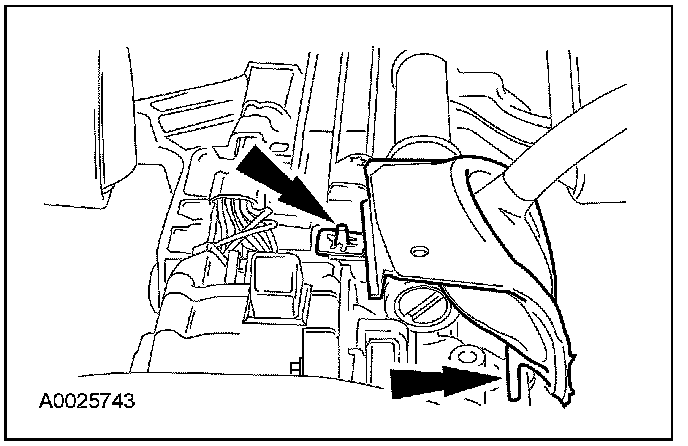

7. Separate the TC switch harness from the locators and the selector lever cover from the steering column.





8. CAUTION: Removing the selector lever pin will damage the pin. Never reinstall the old selector lever pin.

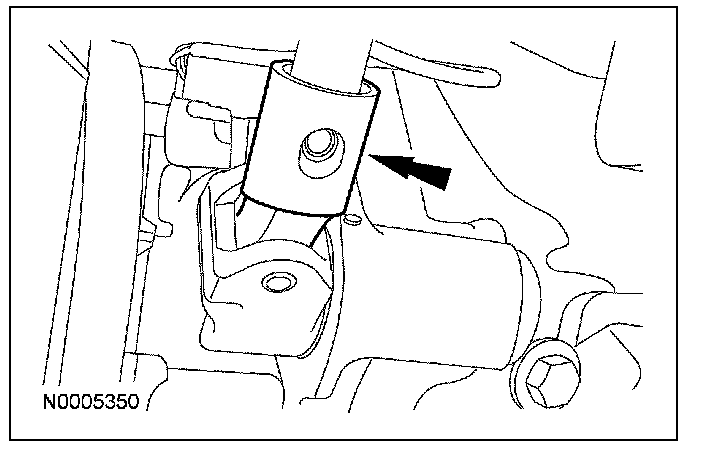

Remove the selector lever pin and the selector lever. Discard the selector lever pin.





9. To install, reverse the removal procedure.
