Bushings, Bearing and Thrust Washer Locator
Bushings, Bearing and Thrust Washer Locator

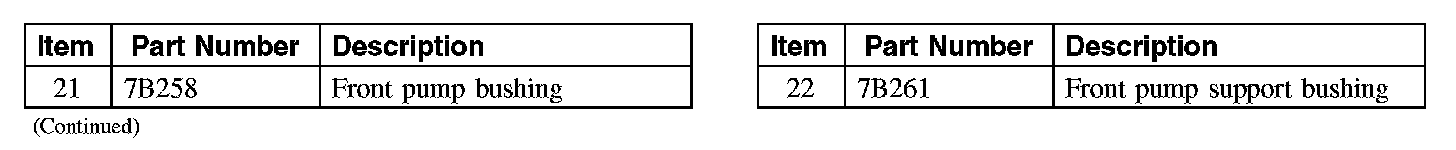

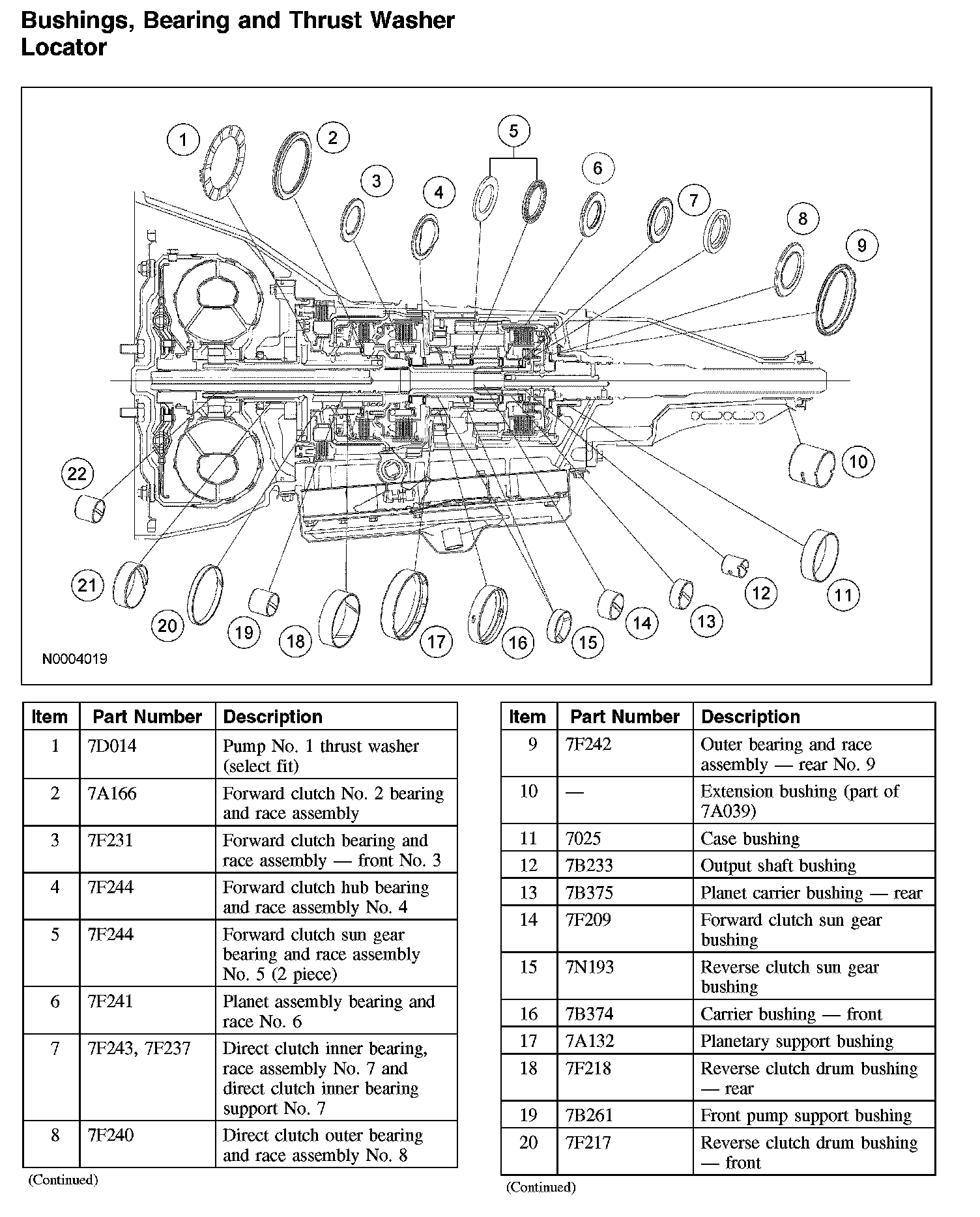

Bushings, Bearing and Thrust Washer Locator (Part 1):
Bushings, Bearing and Thrust Washer Locator (Part 2):
