Test E: Steering System Drift/Pull/Wander

Pinpoint Test E: Steering System Drift/Pull/Wander

This pinpoint test is intended to diagnose the following:
^ Steering gear
^ Intermediate shaft
^ Intermediate shaft U-joints
^ Steering gear mounts
^ Suspension components

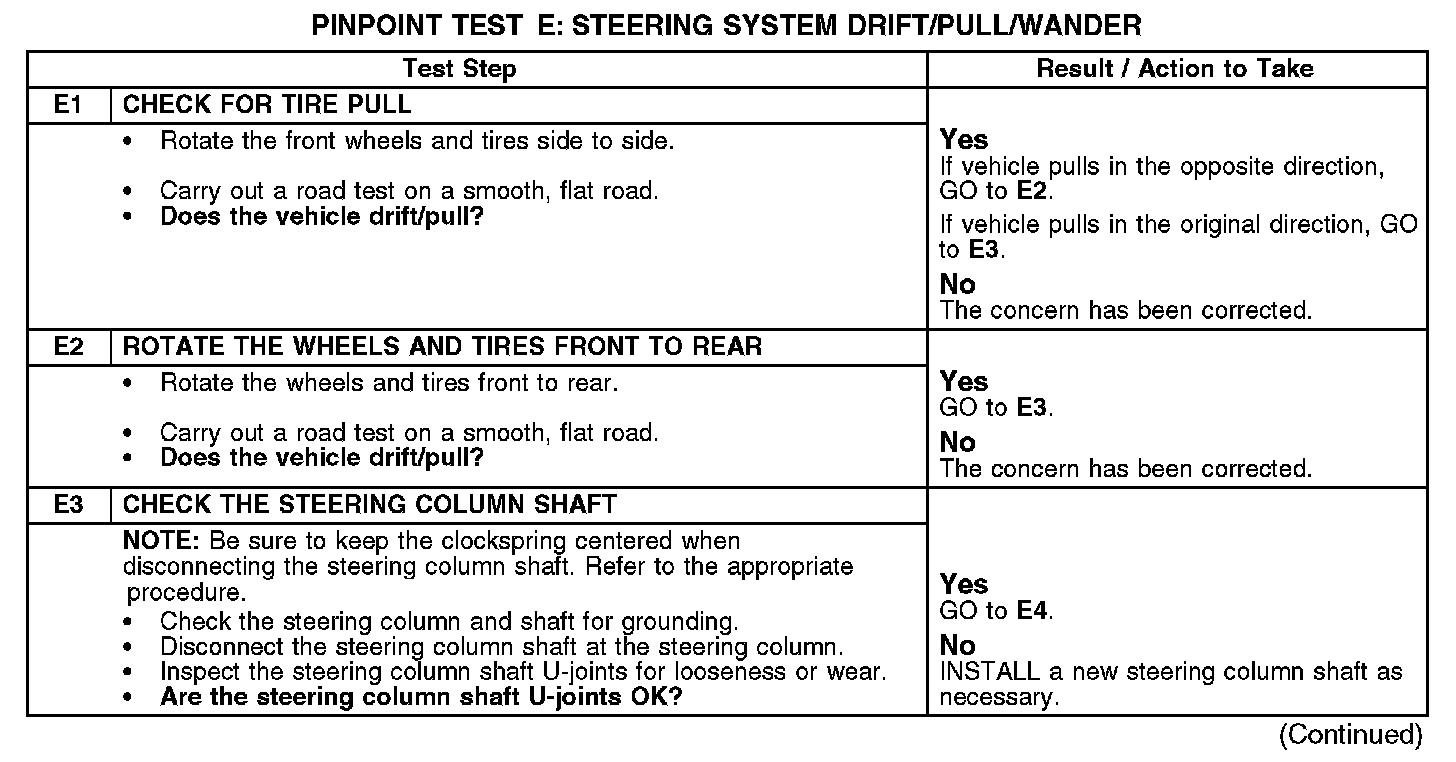

E1-E3:

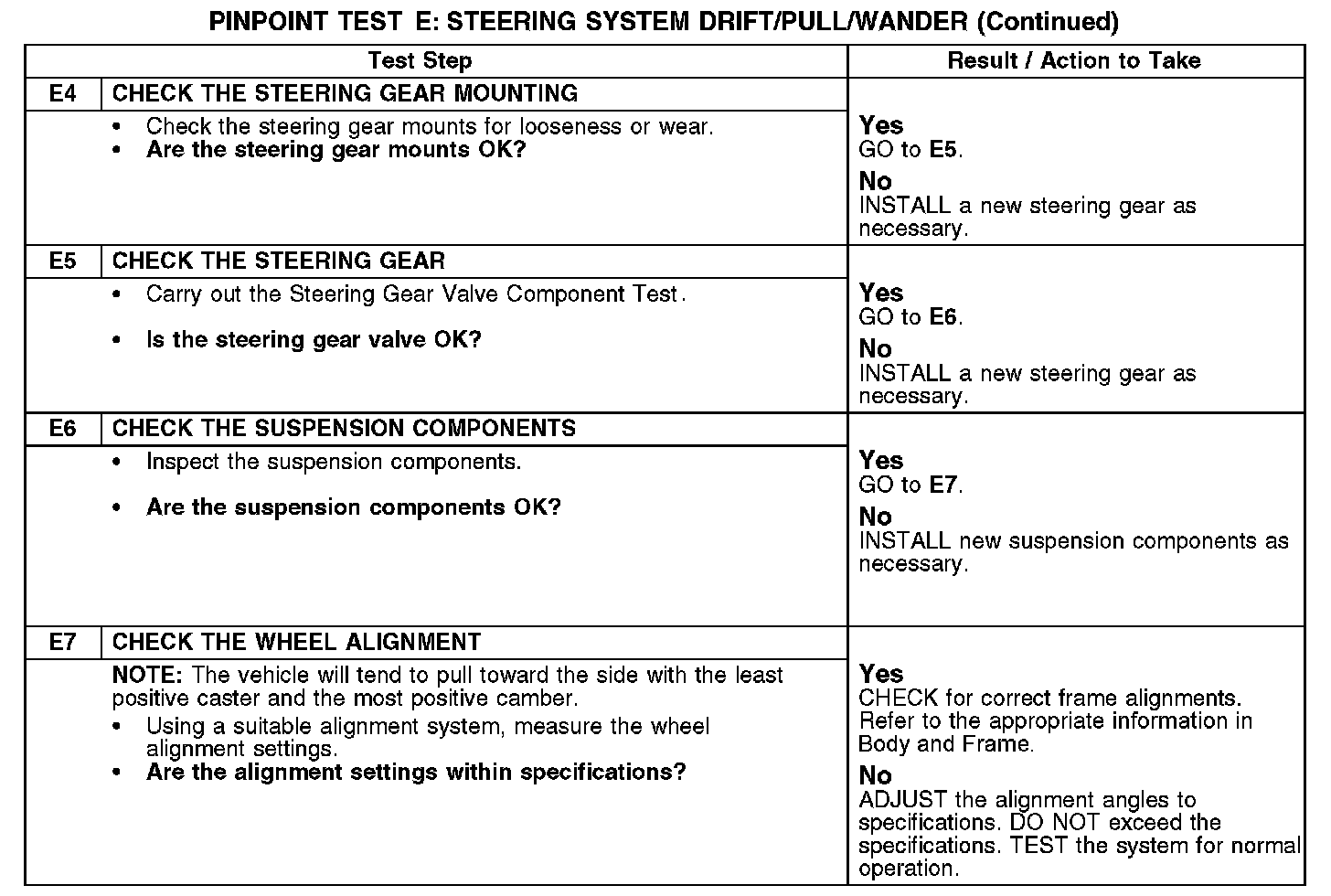

E4-E7:
