Test D: Excessive Steering Wheel Play

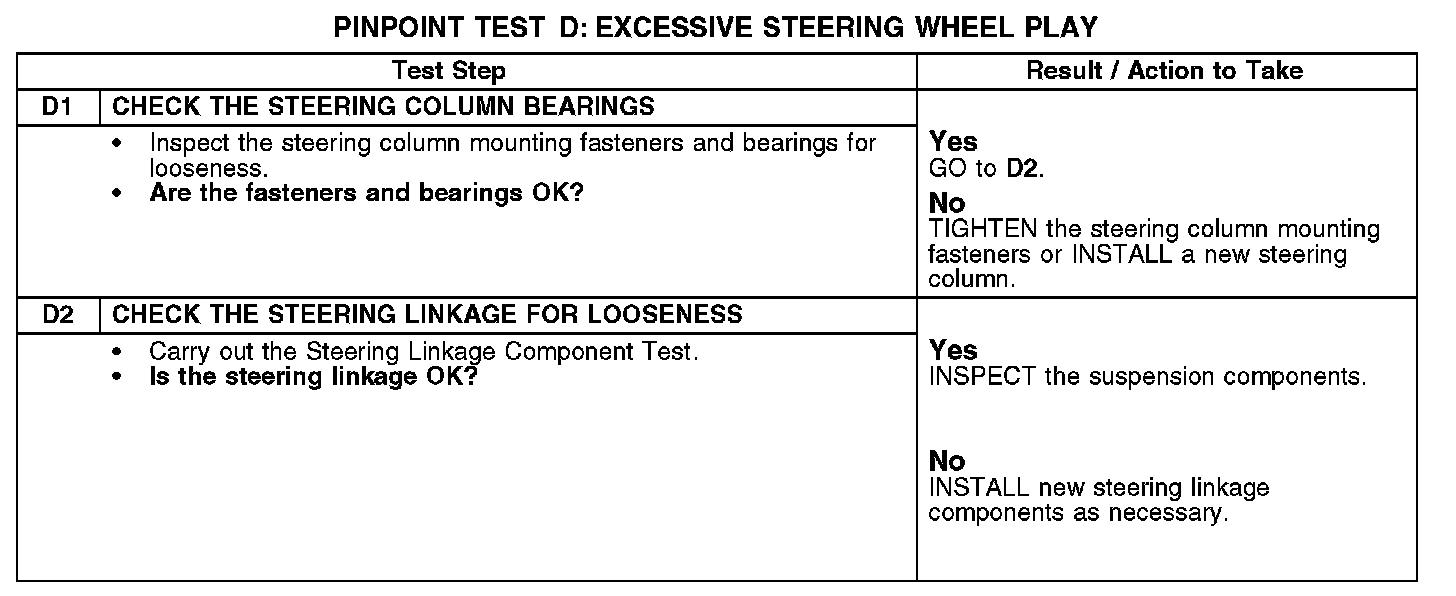

Pinpoint Test D: Excessive Steering Wheel Play

This pinpoint test is intended to diagnose the following:
^ Steering column bearings
^ Steering linkage
^ Suspension components

D1-D2:
