Battery Tray

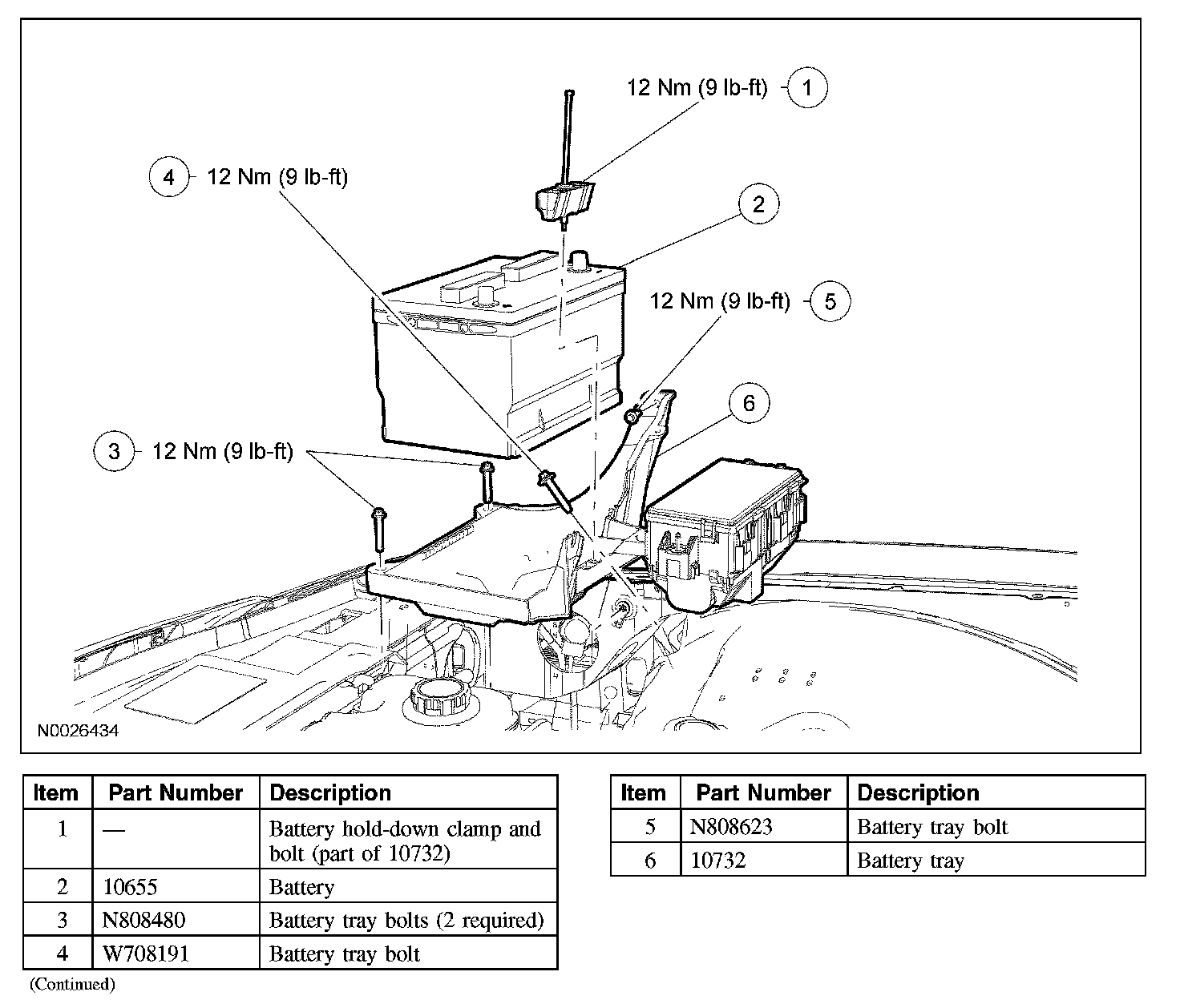

BATTERY TRAYExploded View
Removal and Installation
1. Remove the battery.
2. Remove the 4 bolts and the battery tray.
- To install, tighten to 12 Nm (9 lb-ft).
3. To install, reverse the removal procedure.
Exploded View
Removal and Installation
1. Remove the battery.
2. Remove the 4 bolts and the battery tray.
- To install, tighten to 12 Nm (9 lb-ft).
3. To install, reverse the removal procedure.
