Grand Marquis V8-4.6L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>

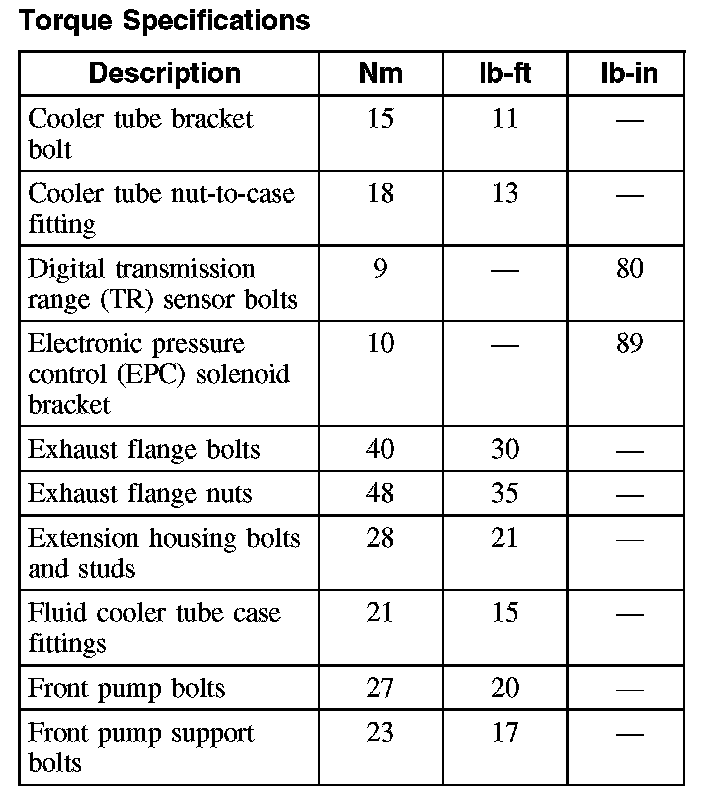

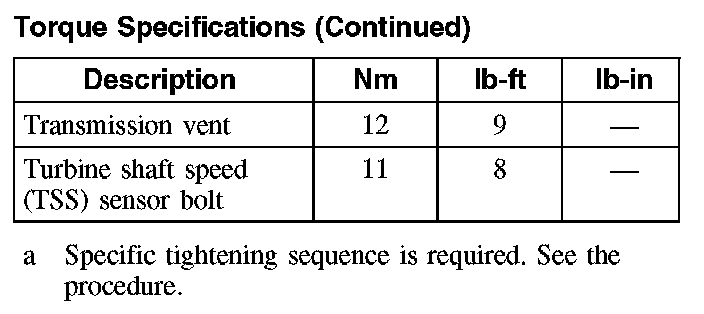

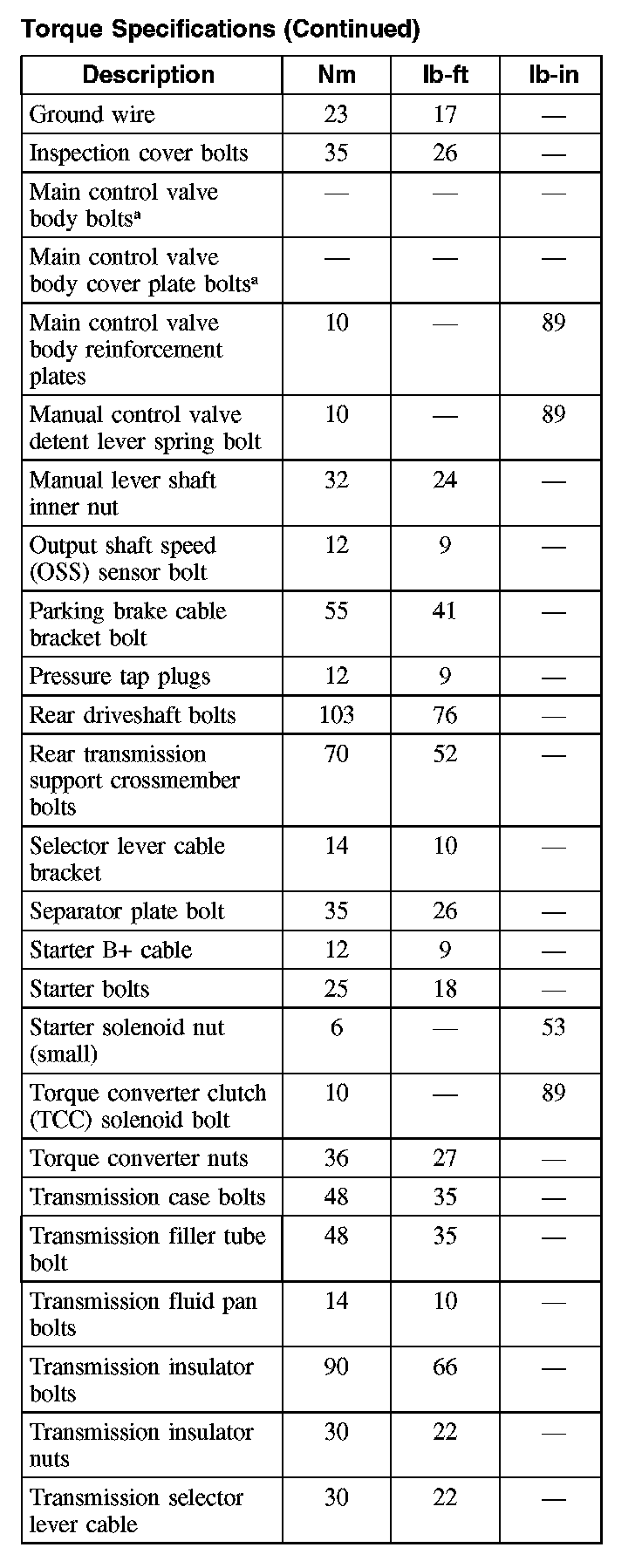

Torque Specifications
Torque Specifications
Torque Specifications
Transmission fluid pan bolts
14 Nm (10 lb-ft).
