Headlamp Switch: Service and Repair

HEADLAMP SWITCH

Removal and Installation

1. CAUTION: Cover the end of the tool with tape to prevent damage to the trim panel.

NOTE: Use a thin-bladed tool to remove the headlamp switch.

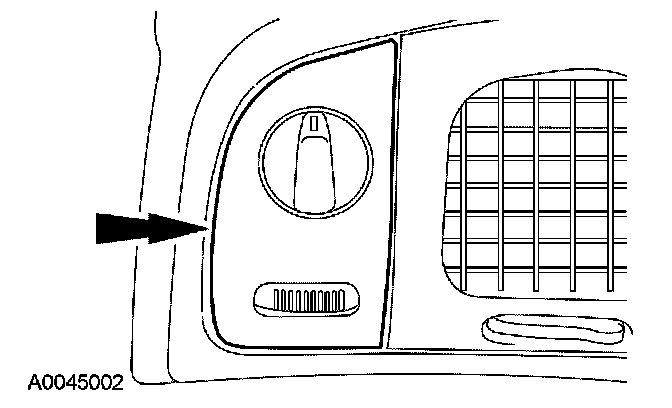

Remove the headlamp switch.
- Disconnect the electrical connectors.







2. To install, reverse the removal procedure.
