Mercury
>>
2008
>>
Grand Marquis V8-4.6L
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Lighting and Horns
>>
Headlamp Switch
>>
Diagrams
>>
Main Light Switch
Main Light Switch

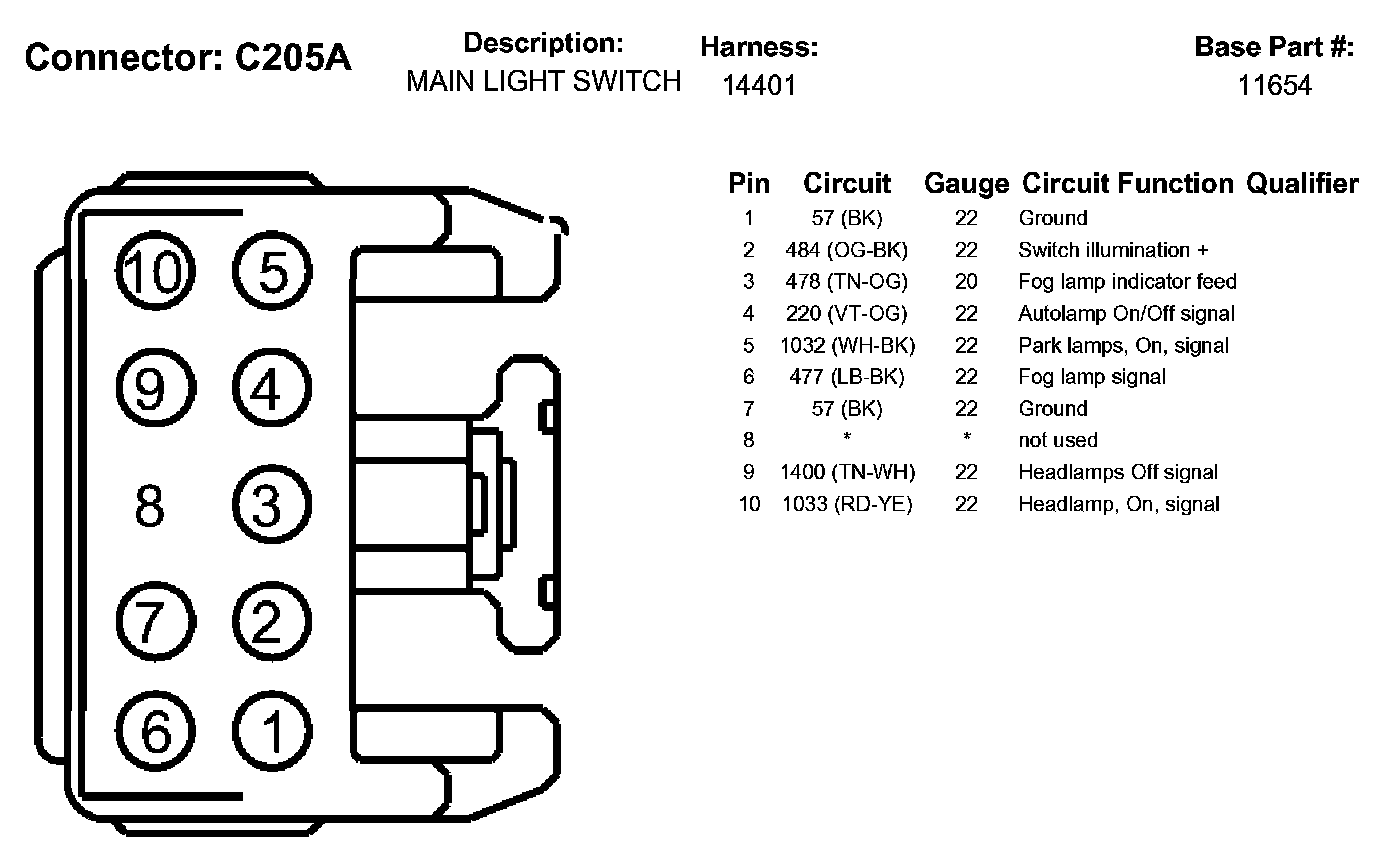

C205A:
C205B:
