Ambient Light Sensor: Service and Repair

LIGHT SENSOR

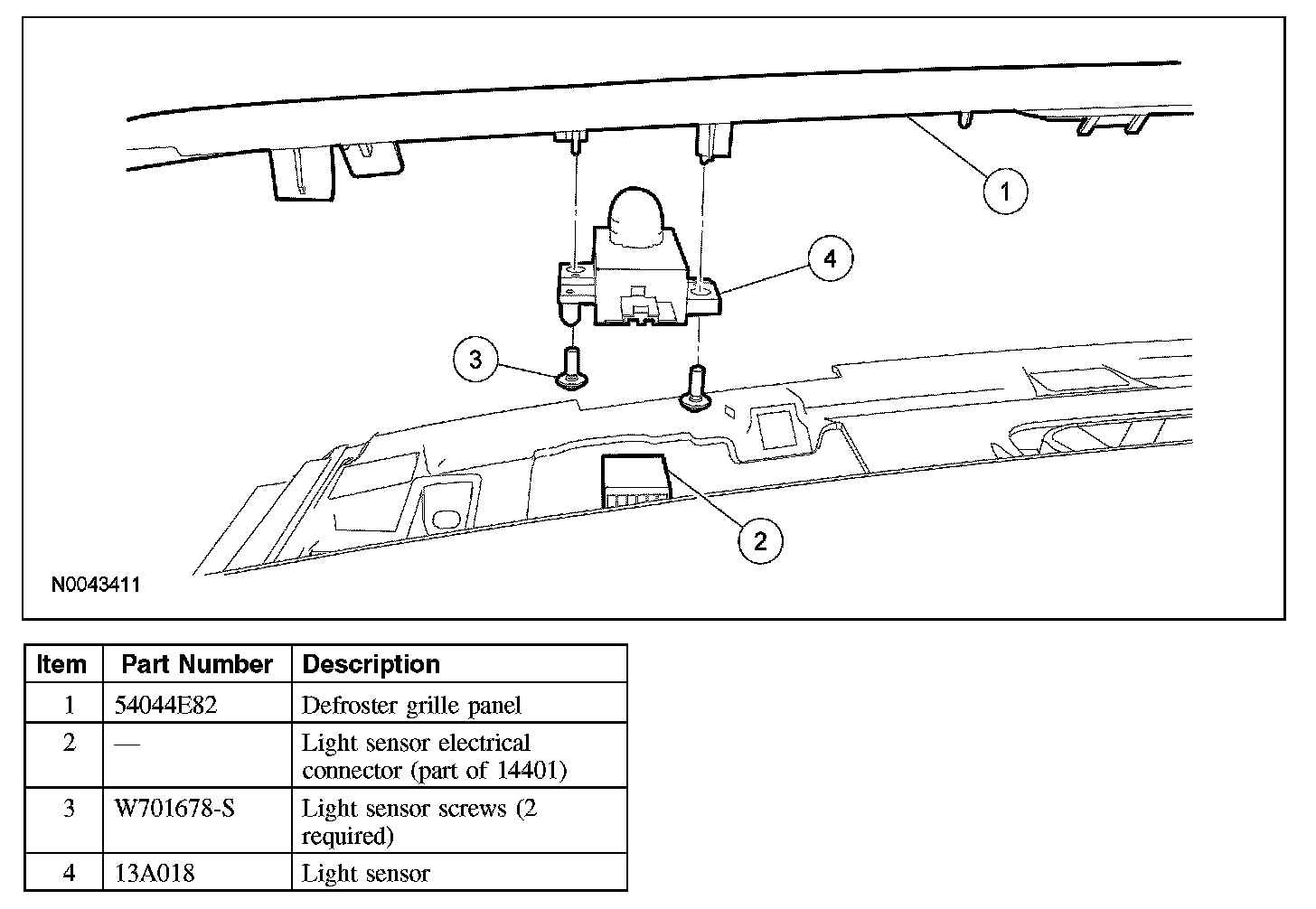

Removal and Installation

1. CAUTION: To avoid damaging the light sensor electrical connector, carefully the panel to expose the connector without stretching the wiring.

Remove the defroster grille panel.
- Disconnect the electrical connector.

2. Remove the 2 screws and the light sensor.
3. To install, reverse the removal procedure.
