Dimmer Switch: Service and Repair

INSTRUMENT PANEL DIMMER SWITCH







Removal and Installation
1. Remove the headlamp switch.
- Disconnect the electrical connectors.

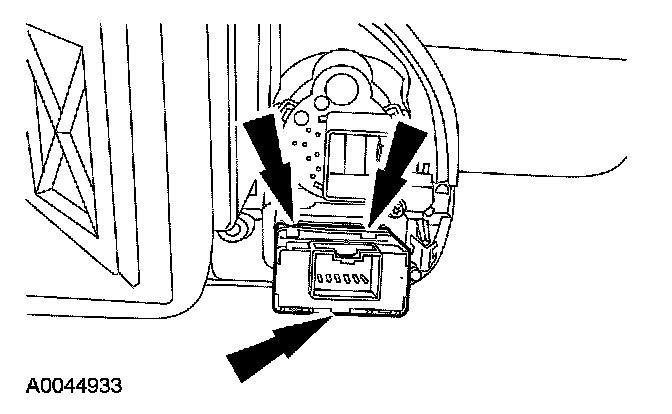

2. Release the retaining tabs and remove the instrument panel dimmer switch.







3. To install, reverse the removal procedure.
