Heated Seat Switch

HEATED SEAT SWITCH







Removal and Installation
1. Disconnect the battery.

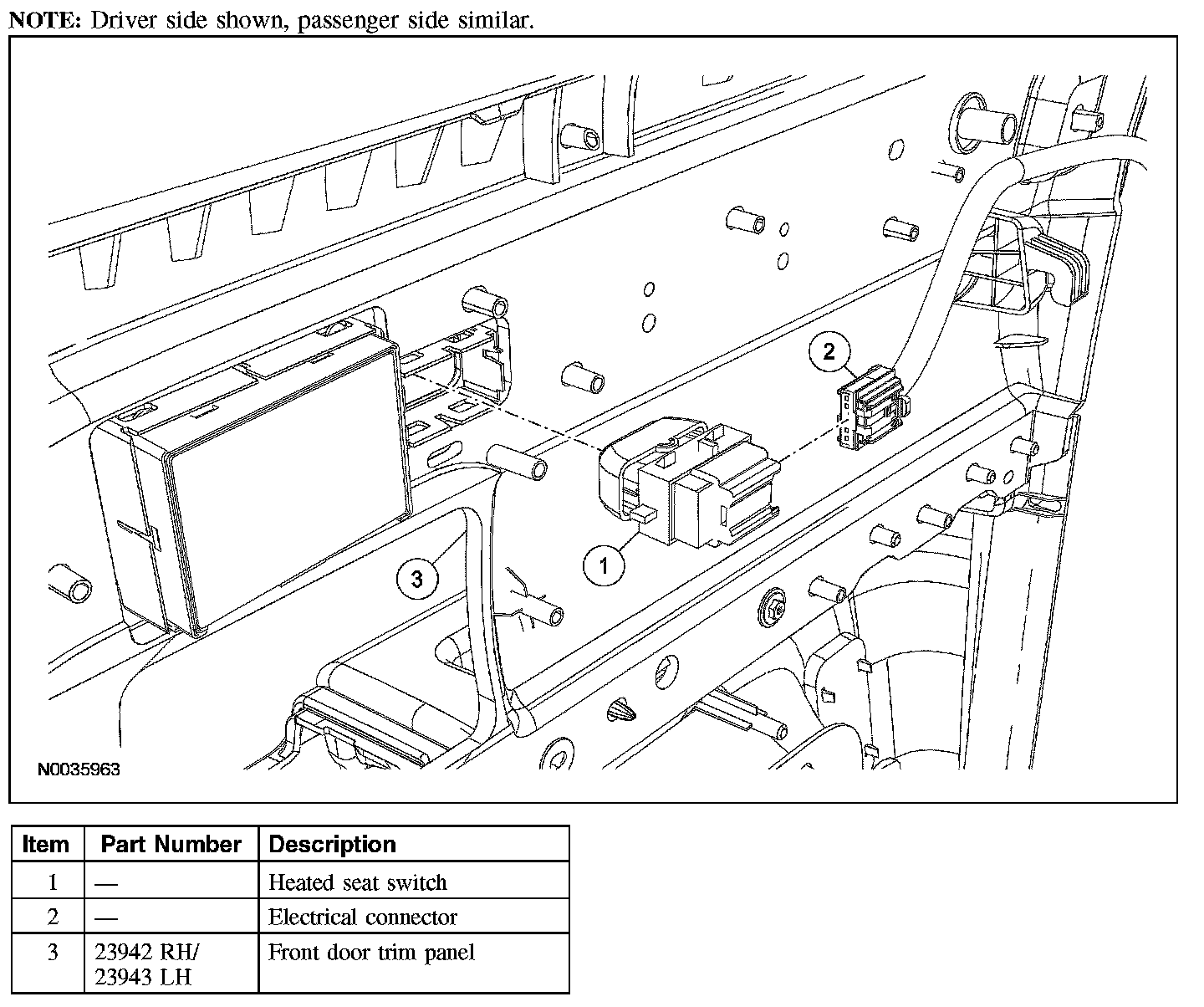

2. Remove the front door trim panel.

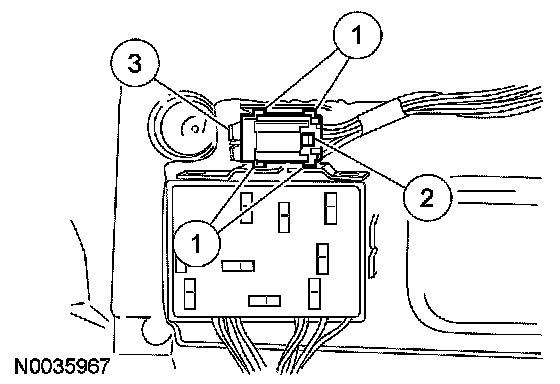

3. Remove the heated seat switch.
1 Release the locking tabs.
2 Disconnect the electrical connector.
3 Remove the heated seat switch.







4. To install, reverse the removal procedure.
