Home >> Mercury >> 2008 >> Grand Marquis V8-4.6L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Accessories and Optional Equipment >> Fire Suppression Manual Switch >> Diagrams

Fire Suppression Manual Switch: Diagrams

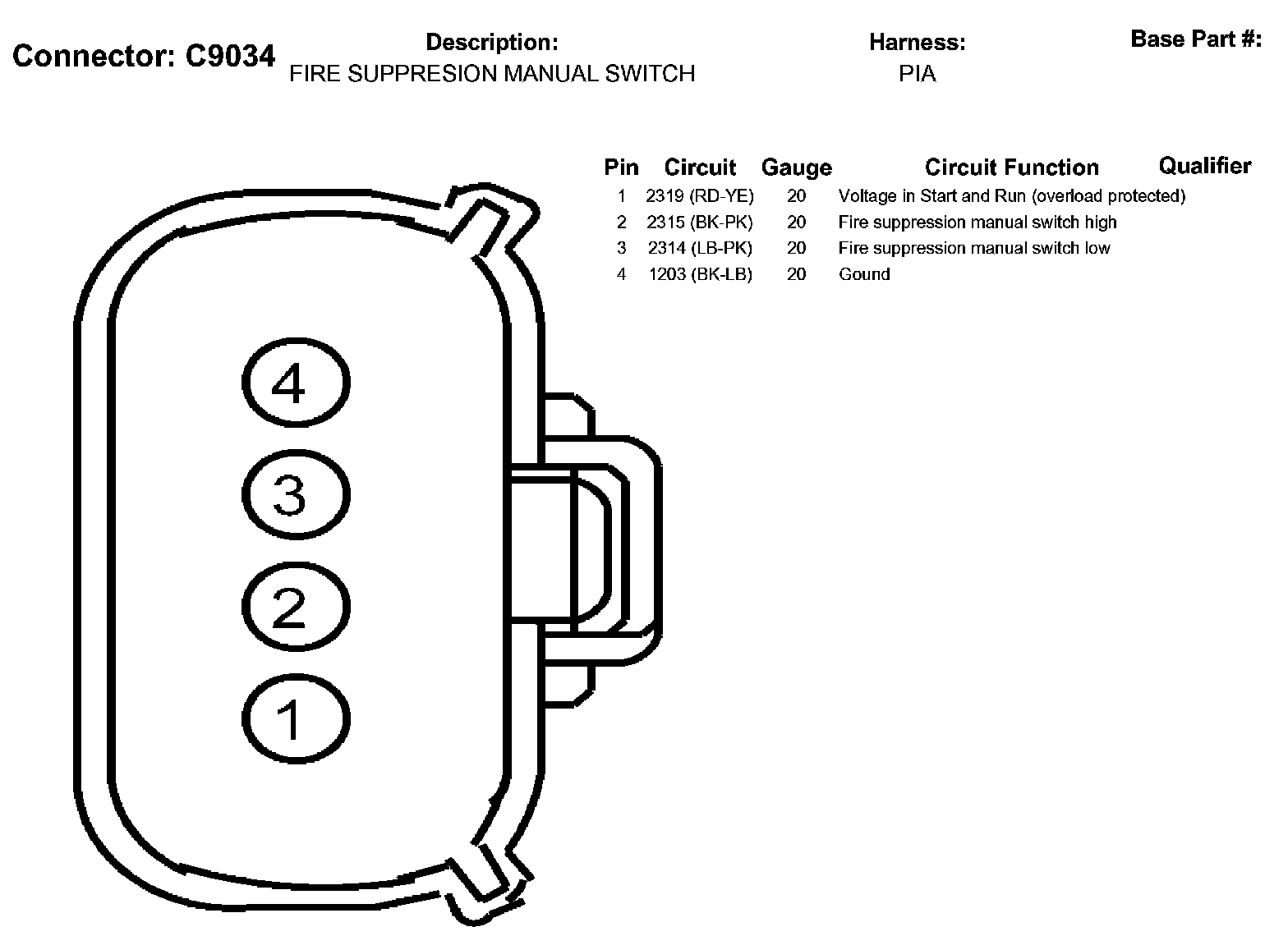

C9034:
