Safety Belt Retractor and Pretensioner
SAFETY BELT RETRACTOR AND PRETENSIONER

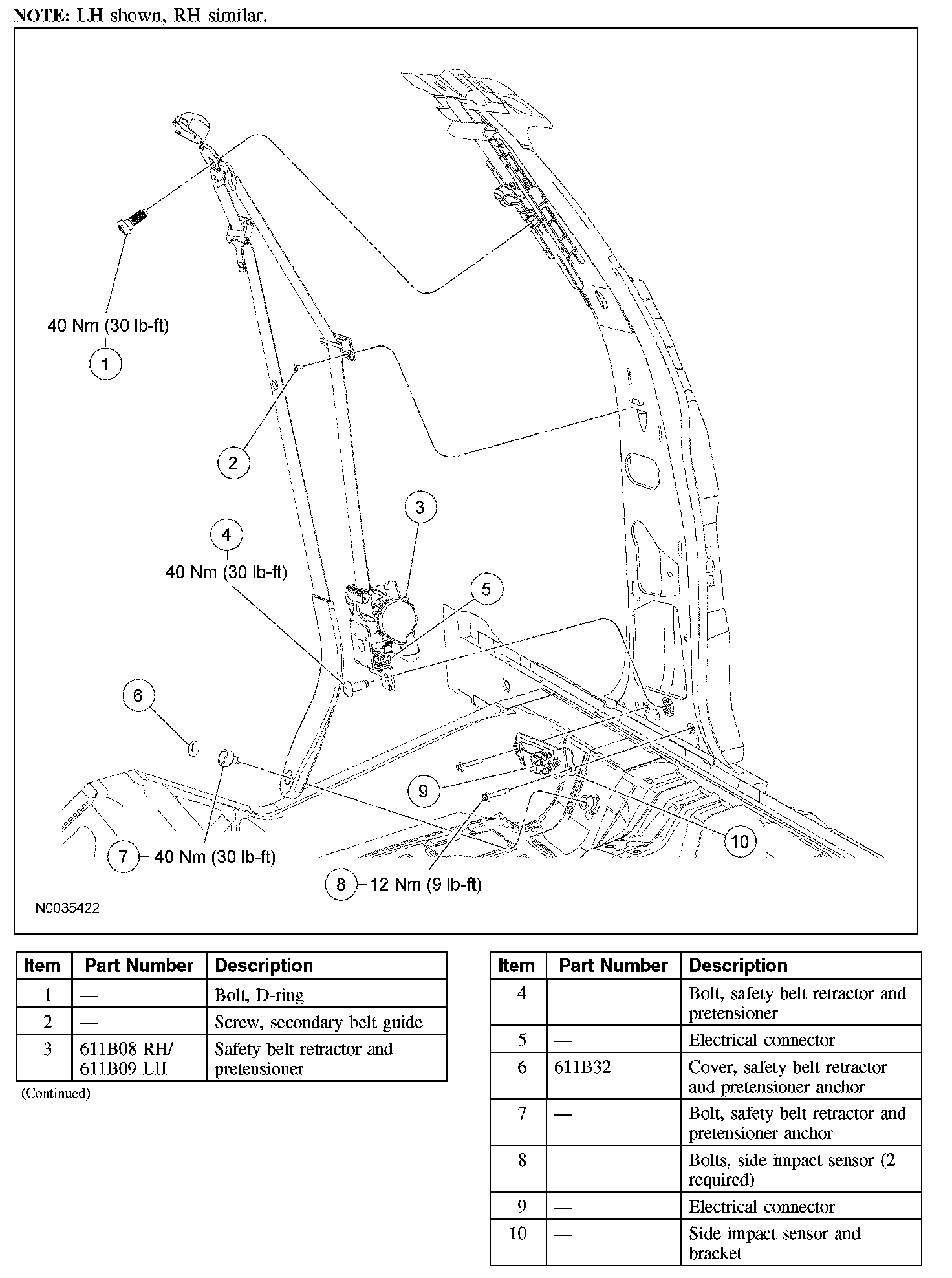

Removal
WARNING:
- After any crash, all of the following safety belt assemblies and attaching hardware must be inspected by an authorized dealer to verify correct function:
- Retractors
- Buckles
- Belt tension sensor (BTS) (if equipped)
- Front safety belt buckle support assemblies (slide bar) (if equipped)
- Safety belt shoulder belt height adjusters (if equipped)
- Child safety seat tether bracket assemblies
- Automatic locking retractor (ALR) feature for child safety seats (passenger seating positions only)
If any safety belt assembly is damaged, does not operate correctly or does not pass all of the Functional Tests in the Diagnosis and Testing portion, a new safety belt assembly must be installed. If any safety belt assembly attaching areas are damaged or distorted, the sheet metal must be restored to its original structural integrity and new safety belt assembly and attaching hardware must be installed. Failure to install new safety belt assemblies and attaching hardware may increase the risk of serious personal injury or death in a crash.
After any crash that results in deployment of the driver and/or front outboard passenger safety belt pretensioners, new driver and/or front outboard passenger safety belt systems (including retractors, buckles and height adjusters) must be installed. Failure to install new safety belt systems increases the risk of serious personal injury or death in a crash.
- Never probe the electrical connectors on safety belt buckle/retractor pretensioners or adaptive load limiting retractors. Failure to follow this instruction may result in the accidental deployment of the safety belt pretensioners or adaptive load limiting retractors, which increases the risk of serious personal injury or death.
- Never probe the electrical connectors on air bag, safety canopy or side air curtain modules. Failure to follow this instruction may result in the accidental deployment of these modules, which increases the risk of serious personal injury or death.
- To reduce the risk of accidental deployment, do not use any memory saver devices. Failure to follow this instruction may result in serious personal injury or death.
NOTE:
- The air bag warning indicator illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
All vehicles
1. Depower the SRS.
2. NOTE: Inspect the D-ring cover for damage. If the cover is damaged or does not remain closed, install a new D-ring cover.
Release the 2 tabs and open the D-ring cover.
3. Remove the bolt and D-ring.
4. Remove the anchor bolt cover.
5. Remove the bolt and safety belt retractor anchor.
6. Remove the upper and lower B-pillar trim panels.
7. Remove the secondary safety belt guide screw.
Vehicles with seat side air bags

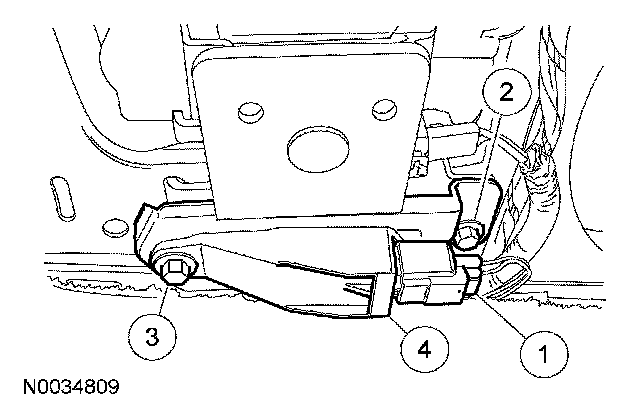

8. NOTE: The side impact sensor bolts must be removed in the sequence shown.
Remove the side impact sensor with bracket.
1 Disconnect the electrical connector.
2 Remove the bolt.
3 Remove the bolt.
4 Remove the side impact sensor with bracket.
All vehicles
9. Disconnect the pretensioner electrical connector.
10. Remove the bolt and safety belt retractor and pretensioner assembly.
Installation
All vehicles
NOTE: Make sure the safety belt webbing is not twisted prior to installation.
1. Position the safety belt retractor and pretensioner.
2. Install the bolt.
- Tighten to 40 Nm (30 lb-ft).
3. Connect the electrical connector.
Vehicles with seat side air bags
4. WARNING: Always tighten the fasteners of the restraints control module (RCM) and impact sensor (if equipped) to the specified torque. Failure to do so may result in incorrect restraint system operation, which increases the risk of personal injury or death in a crash.

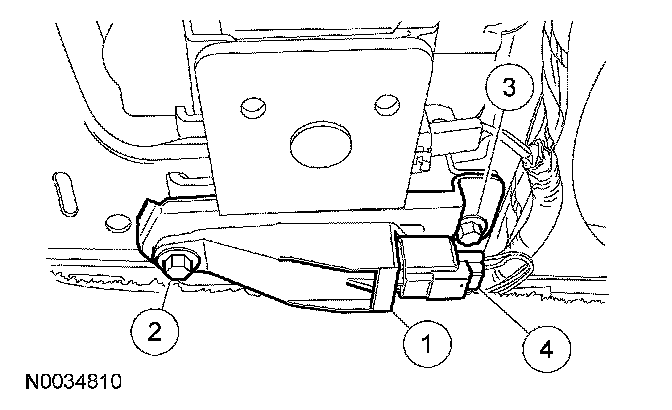

NOTE: The side impact sensor bolts must be installed in the sequence shown.
Install the side impact sensor with bracket.
1 Position the side impact sensor with bracket.
2 Install the bolt.
- Tighten to 12 Nm (9 lb-ft).
3 Install the bolt.
- Tighten to 12 Nm (9 lb-ft).
4 Connect the electrical connector.
All vehicles
5. Install the secondary safety belt guide screw.
6. Install the upper and lower B-pillar trim panels.
7. Install the safety belt anchor and bolt.
- Tighten to 40 Nm (30 lb-ft).
8. Install the safety belt anchor bolt cover.
9. Install the D-ring and bolt.
- Tighten to 40 Nm (30 lb-ft).
10. Repower the SRS.
11. Check the active restraint system for correct operation.
