Child Safety Seat Tether Anchor - LATCH

CHILD SAFETY SEAT TETHER ANCHOR - LATCH







Removal and Installation

WARNING: After any crash, all of the following safety belt assemblies and attaching hardware must be inspected by an authorized dealer to verify correct function:
- Retractors
- Buckles
- Belt tension sensor (BTS) (if equipped)
- Front safety belt buckle support assemblies (slide bar) (if equipped)
- Safety belt shoulder belt height adjusters (if equipped)
- Child safety seat tether bracket assemblies
- Automatic locking retractor (ALR) feature for child safety seats (passenger seating positions only)

If any safety belt assembly is damaged, does not operate correctly or does not pass all of the Functional Tests in the Diagnosis and Testing portion, a new safety belt assembly must be installed. If any safety belt assembly attaching areas are damaged or distorted, the sheet metal must be restored to its original structural integrity and new safety belt assembly and attaching hardware must be installed. Failure to install new safety belt assemblies and attaching hardware may increase the risk of serious personal injury or death in a crash.

After any crash that results in deployment of the driver and/or front outboard passenger safety belt pretensioners, new driver and/or front outboard passenger safety belt systems (including retractors, buckles and height adjusters) must be installed. Failure to install new safety belt systems increases the risk of serious personal injury or death in a crash.

1. WARNING: Before servicing a vehicle equipped with a fire suppression system, depower the system by following the procedure in Fire Suppression System. Failure to follow the instructions may result in serious personal injury.

For police vehicles equipped with fire suppression, depower the fire suppression system.

2. Remove the rear seat cushion.

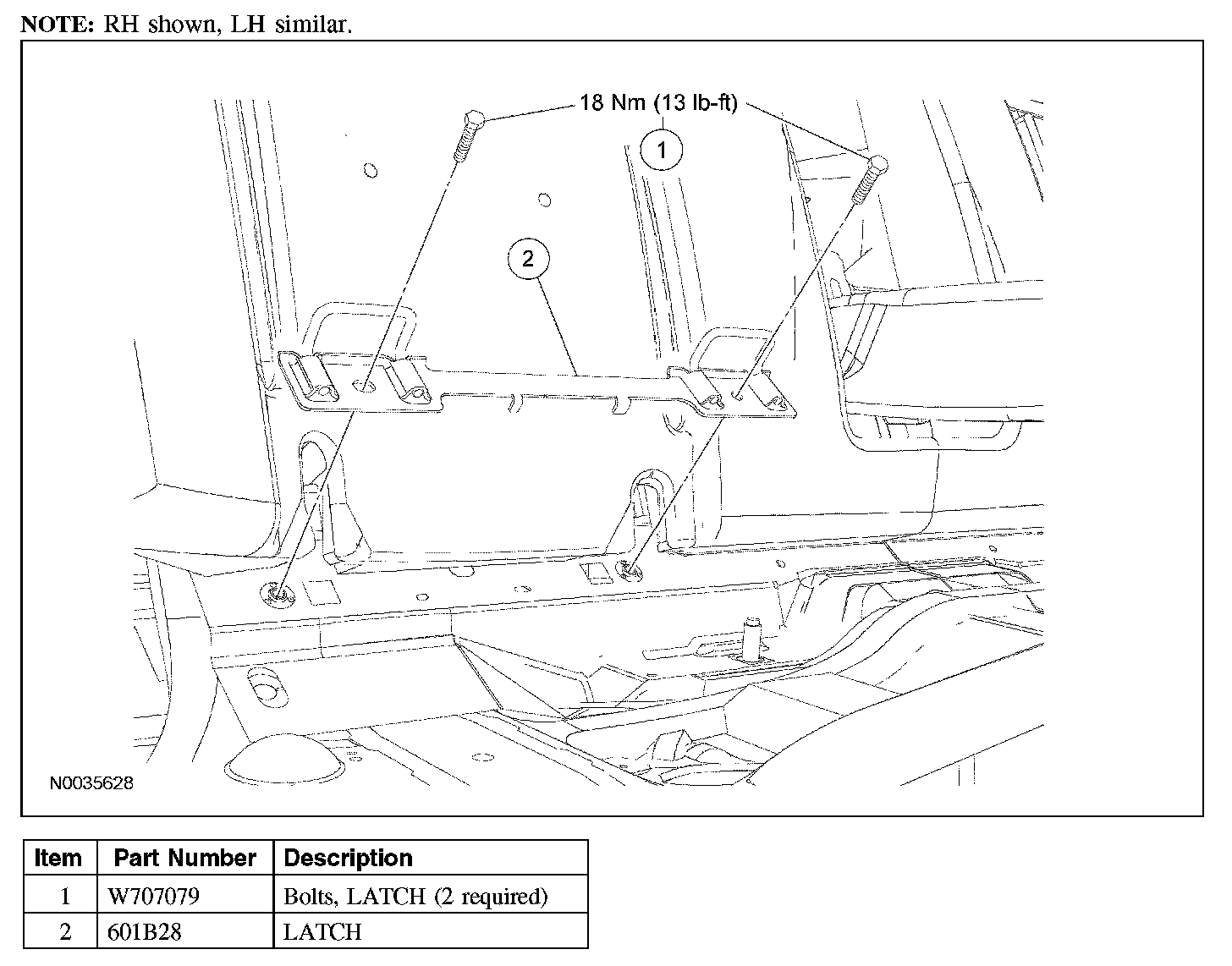

3. Remove the 2 bolts and slide the safety seat tether anchor LATCH out through the opening in the carpet.
- To install, tighten to 18 Nm (13 lb-ft).

4. WARNING: Always tighten the child safety seat tether anchor/bolt to specification. Failure to follow this instruction may result in the child's safety seat being incorrectly secured, which increases the risk of serious personal injury or death to the child in a sudden stop or crash.

NOTE:
- No attempt should be made to repair child safety seat tether anchor LATCH. Install new part if damage is verified.
- When installing the LATCH make sure the alignment tabs are correctly aligned with the slots in the floor pan sheet metal and the wire attachments must be at the top of the bracket.
- Make sure the safety seat tether anchor LATCH is accessible for use.

To install, reverse the removal procedure.

5. WARNING: If the vehicle is equipped with a fire suppression system, repower the system. For important safety warnings and procedures, refer to Fire Suppression System. Failure to follow these instructions may result in serious personal injury.

For police vehicles equipped with fire suppression, repower the fire suppression system.

6. Check the active restraint system for correct operation.
