Tests AF: DTC C1982 - Front Driver's Seat Track Position Switch Short To Battery Fault

PINPOINT TEST AF: DTC C1982 - FRONT DRIVER'S SEAT TRACK POSITION SWITCH SHORT TO BATTERY FAULT

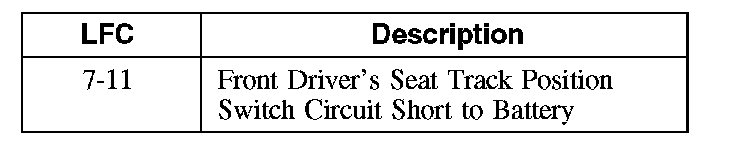

Lamp Fault Codes (LFCs)
The following LFC indicate the specific fault associated with DTC C1982:







Normal Operation
The seat track position sensor informs the restraints control module (RCM) of the driver seat position.

The RCM monitors the driver seat track position sensor circuits. If the RCM detects a short to voltage, it will store DTC C1982 in memory, flash LFC 7-11 on the air bag warning indicator.

- DTC C1982 Front Driver's Seat Track Position Switch Circuit Short to Battery - If the RCM detects a short to battery on the driver seat track position sensor circuit, it will set this DTC.

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Seat track position sensor
- RCM

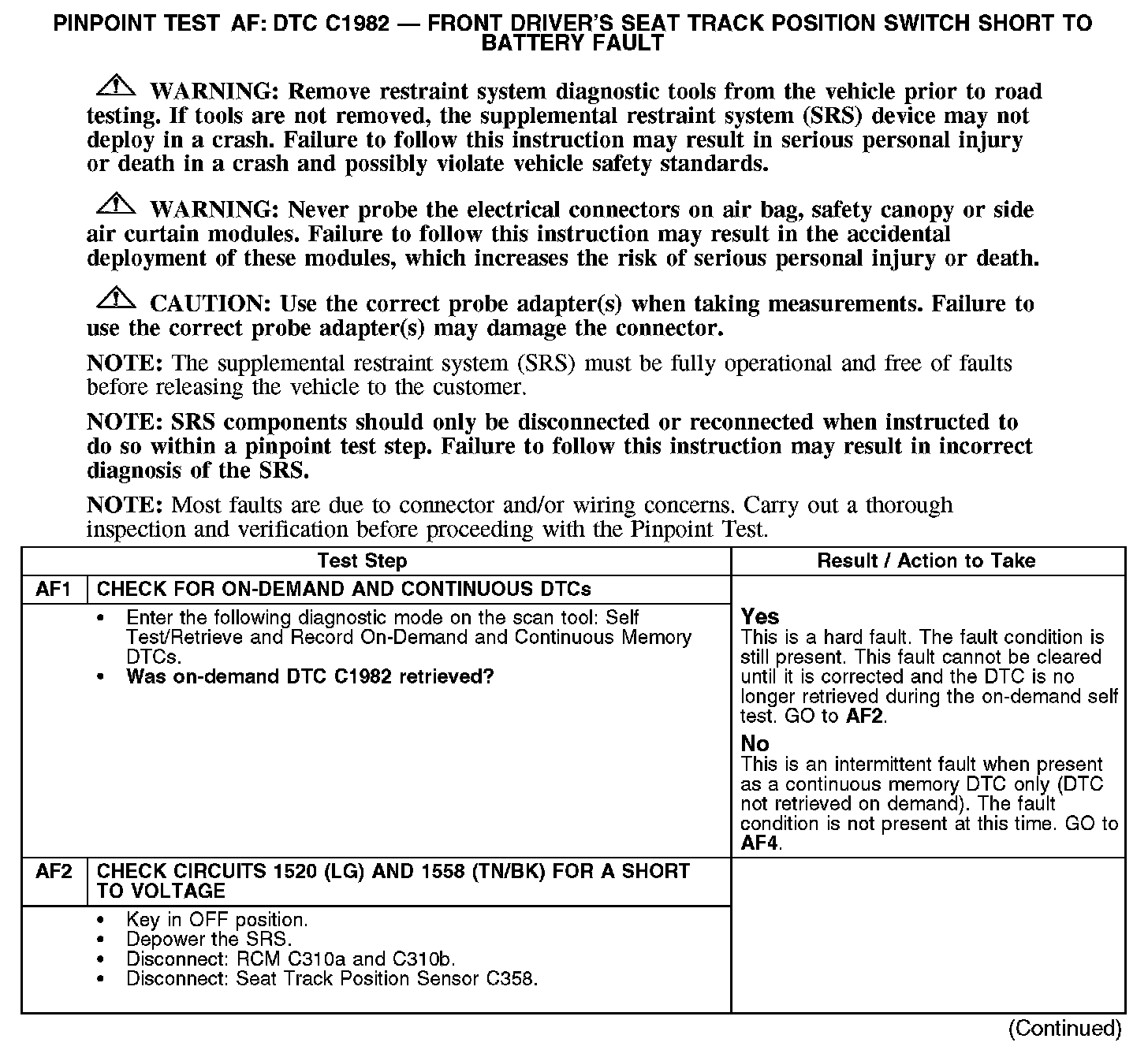

AF1-AF2:

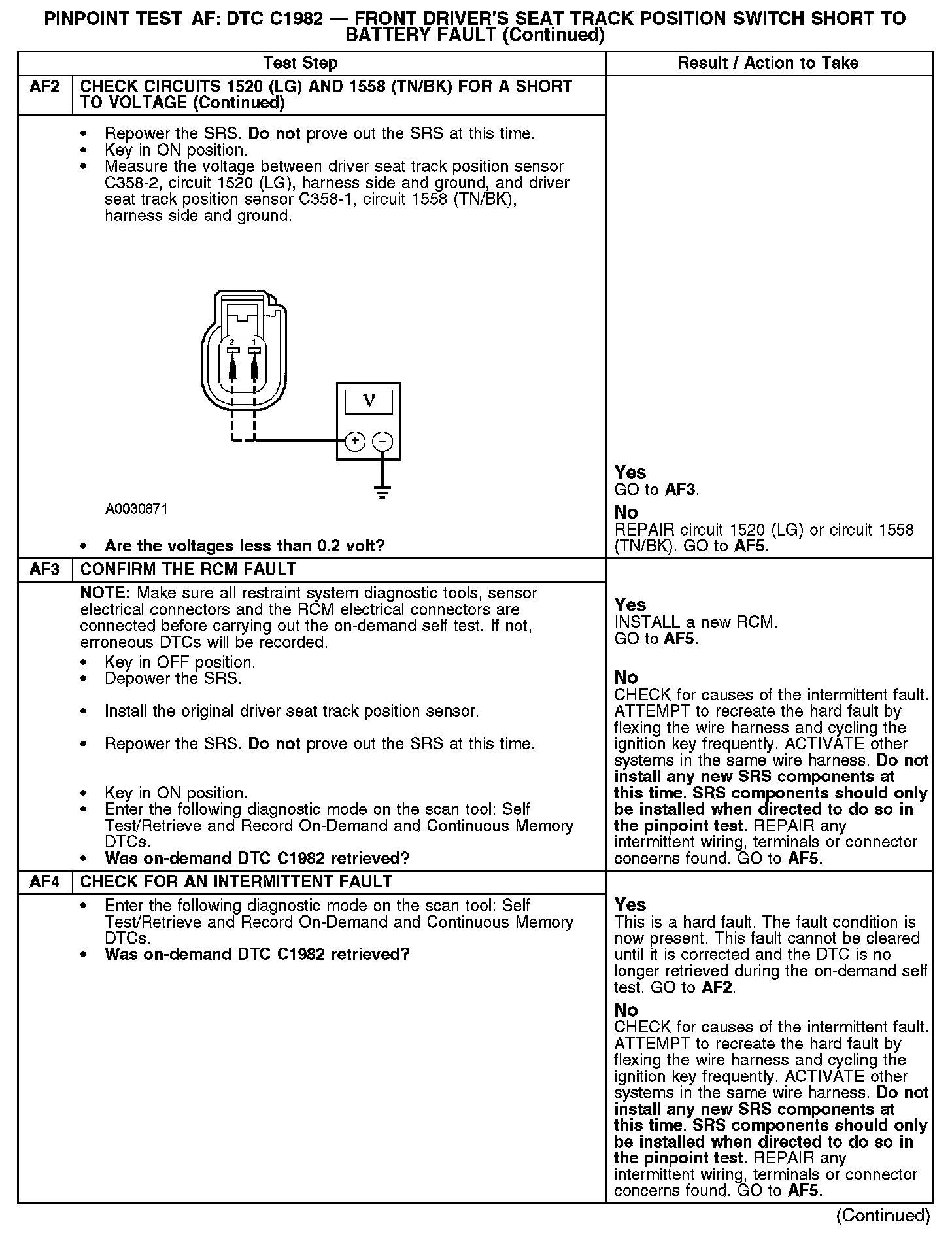

AF2-AF4:

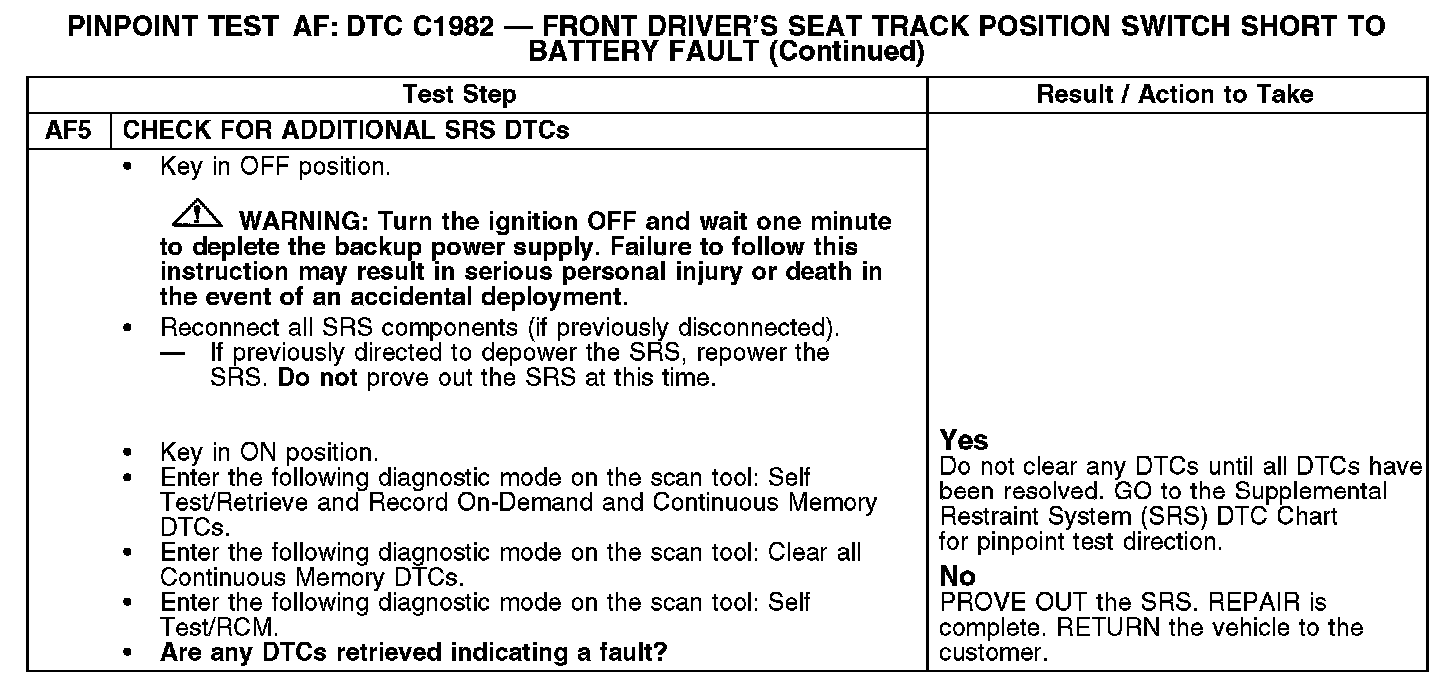

AF5:
