Tests AE: DTC C1948 - Front Driver's Seat Track Position Switch Circuit Resistance Out Of Range

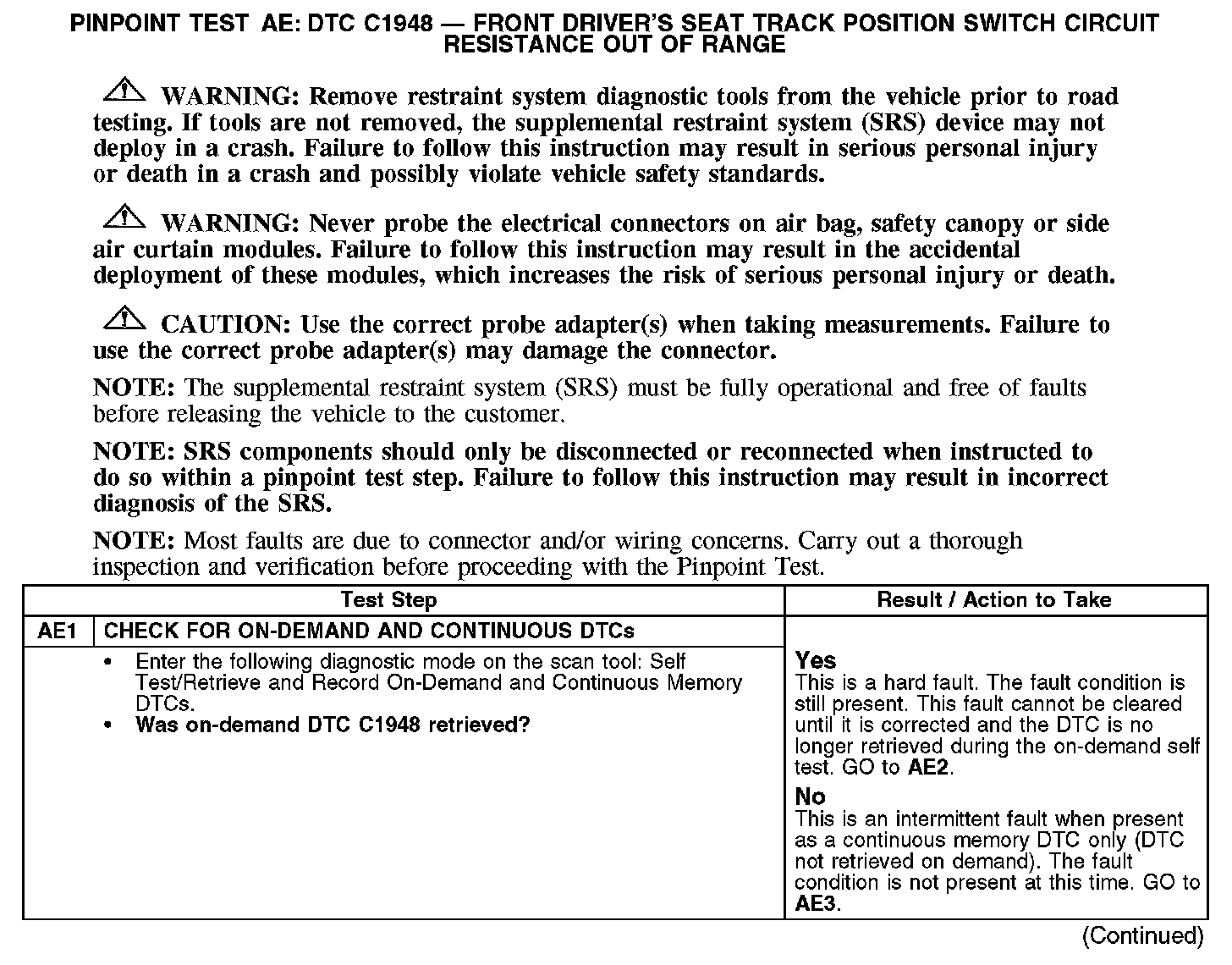

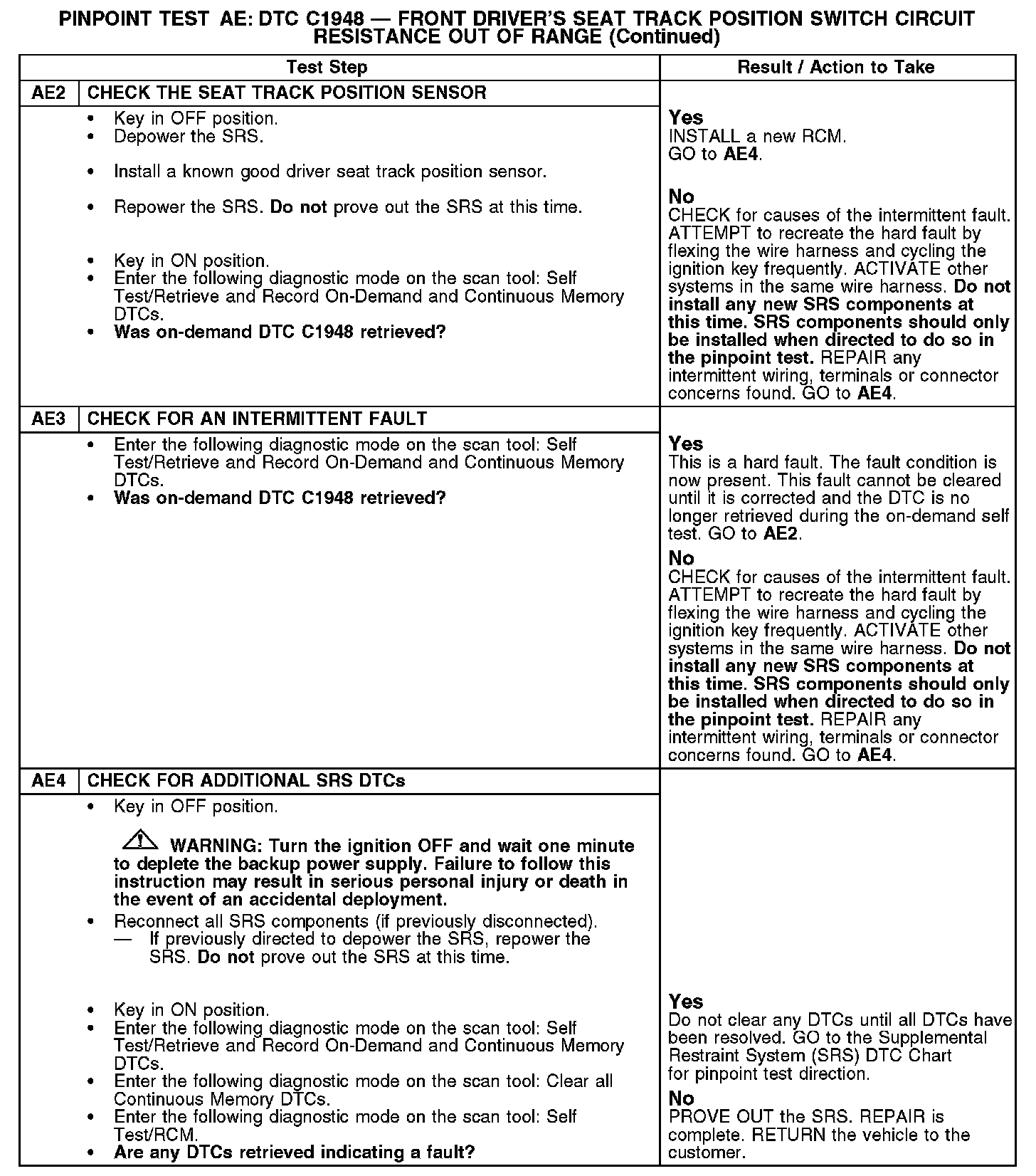

PINPOINT TEST AE: DTC C1948 - FRONT DRIVER'S SEAT TRACK POSITION SWITCH CIRCUIT RESISTANCE OUT OF RANGELamp Fault Codes (LFCs)

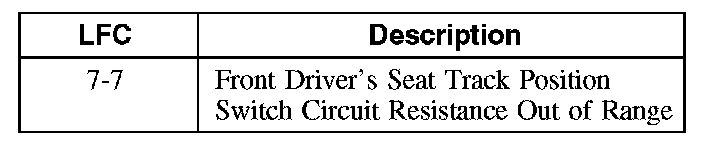

The following LFC indicate the specific fault associated with DTC C1948:
Normal Operation
The seat track position sensor informs the restraints control module (RCM) of the driver seat position.
The RCM monitors the driver seat track position sensor circuits. If the RCM detects a current out of range condition, it will store DTC C1948 in memory, flash a LFC 7-7 on the air bag warning indicator.
- DTC C1948 Front Driver's Seat Track Position Switch Circuit Resistance Out of Range - If the RCM detects a current out of range between forward and rearward on the driver seat track position switch, it will set this DTC.
This pinpoint test is intended to diagnose the following:
- Driver seat track position sensor
- RCM
