Inertia Fuel Shutoff Switch: Service and Repair

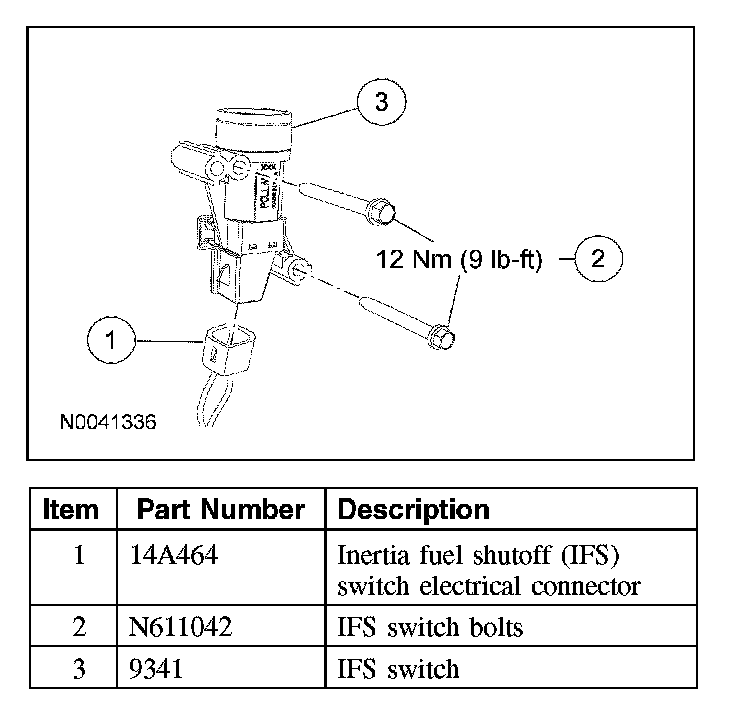

INERTIA FUEL SHUTOFF (IFS) SWITCH







Removal and Installation
1. Remove the LH trunk carpet trim.
2. Disconnect the inertia fuel shutoff (IFS) switch electrical connector.
3. Remove the 2 bolts and the IFS switch.
- To install, tighten to 12 Nm (9 lb-ft).

4. To install, reverse the removal procedure.
