Accelerator Pedal and Bracket

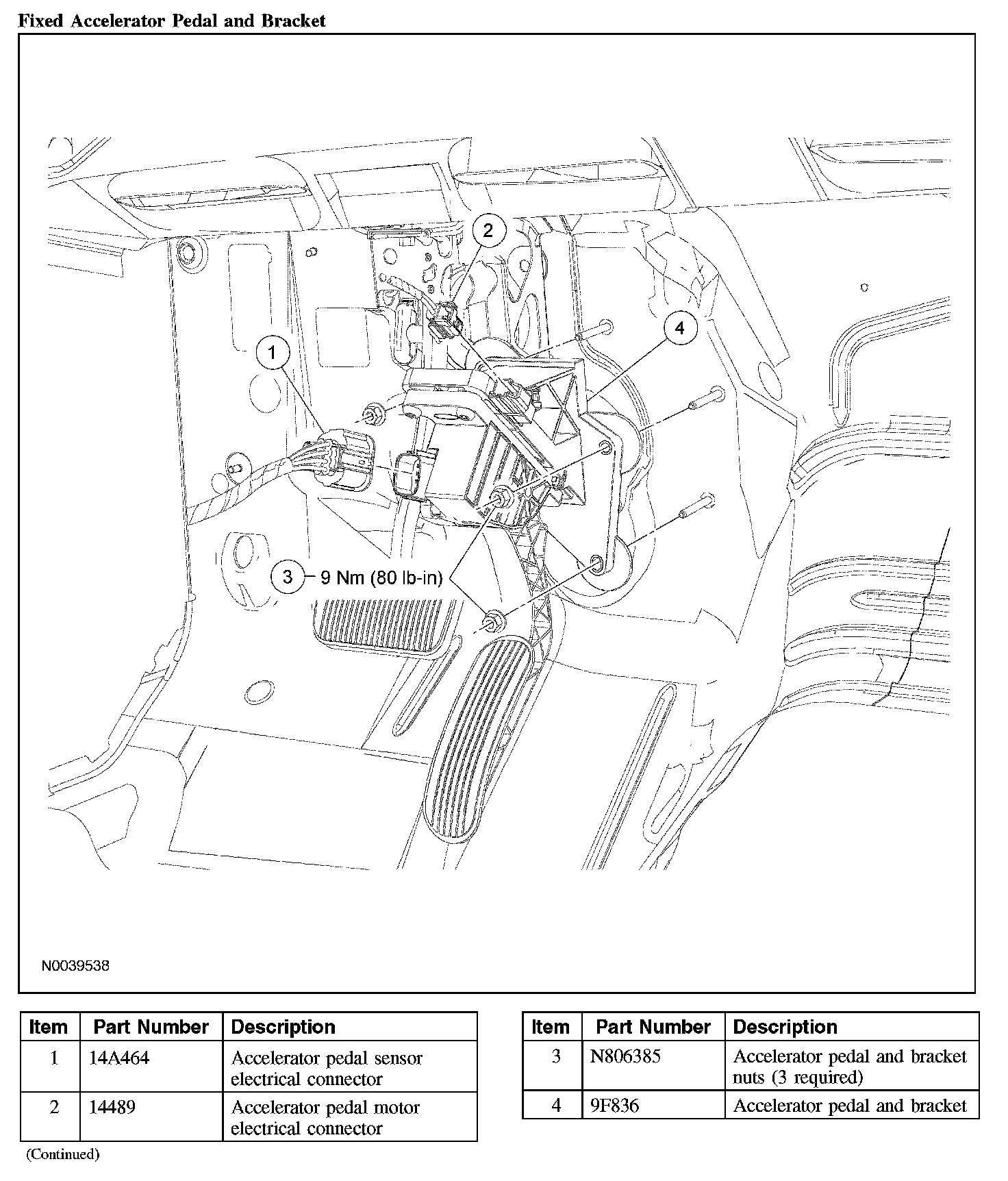

ADJUSTABLE ACCELERATOR PEDAL AND BRACKETFixed Accelerator Pedal and Bracket:

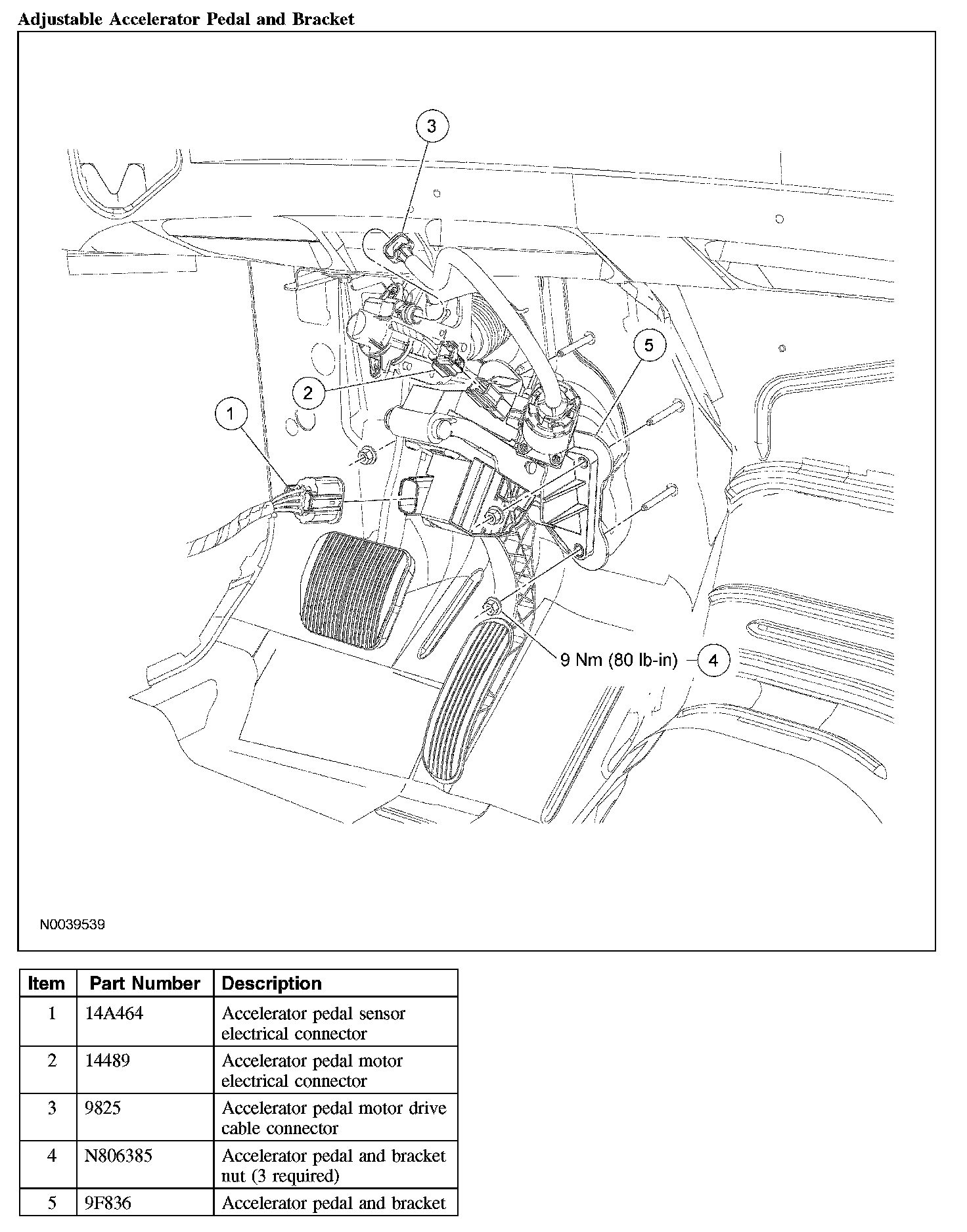

Adjustable Accelerator Pedal and Bracket:
Removal
All vehicles
1. NOTE: To prevent setting DTCs, make sure the ignition switch is in the OFF position prior to disconnecting the accelerator pedal electrical connectors.
Disconnect the accelerator pedal sensor electrical connector.
2. NOTE: The accelerator pedal motor electrical connector is present on all vehicles, including vehicles with fixed pedal and bracket assemblies. The electrical connector on the fixed pedal assemblies are non-working and plugged into an empty receptacle connector.
Disconnect the accelerator pedal motor electrical connector.
Vehicles with adjustable accelerator pedal and bracket
3. Disconnect the accelerator pedal motor drive cable connector.
All vehicles
4. Remove the 3 accelerator pedal and bracket nuts.
5. Remove the accelerator pedal and bracket assembly.
Installation
All vehicles
1. Install the accelerator pedal and bracket assembly.
2. Install the 3 accelerator pedal and bracket nuts.
- To install, tighten to 9 Nm (80 lb-in).
Vehicles with adjustable accelerator pedal and bracket
3. Connect the accelerator pedal motor drive cable connector.
All vehicles

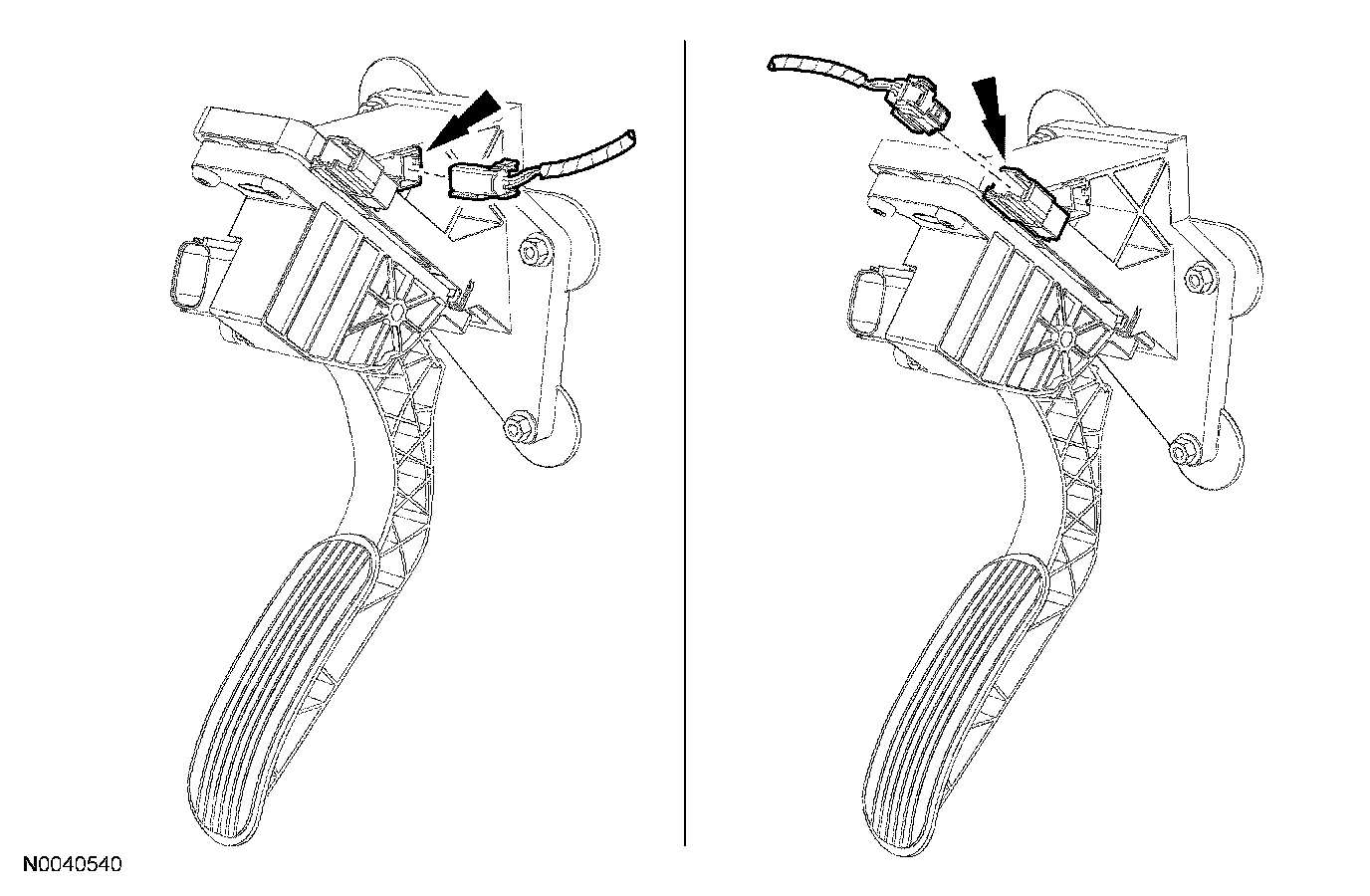

4. NOTE: On vehicles with a fixed pedal and bracket assemblies, the service unit may differ from the original unit. The non-working accelerator pedal motor electrical connector may be plugged into either of these locations shown depending on the length of the harness.
Connect the accelerator pedal motor electrical connector.
5. Connect the accelerator pedal sensor electrical connector.
Vehicles with adjustable accelerator pedal and bracket
6. Index the adjustable accelerator pedal and bracket assemblies.
