Evaporative Emission Control Canister: Service and Repair

EVAPORATIVE EMISSION CANISTER

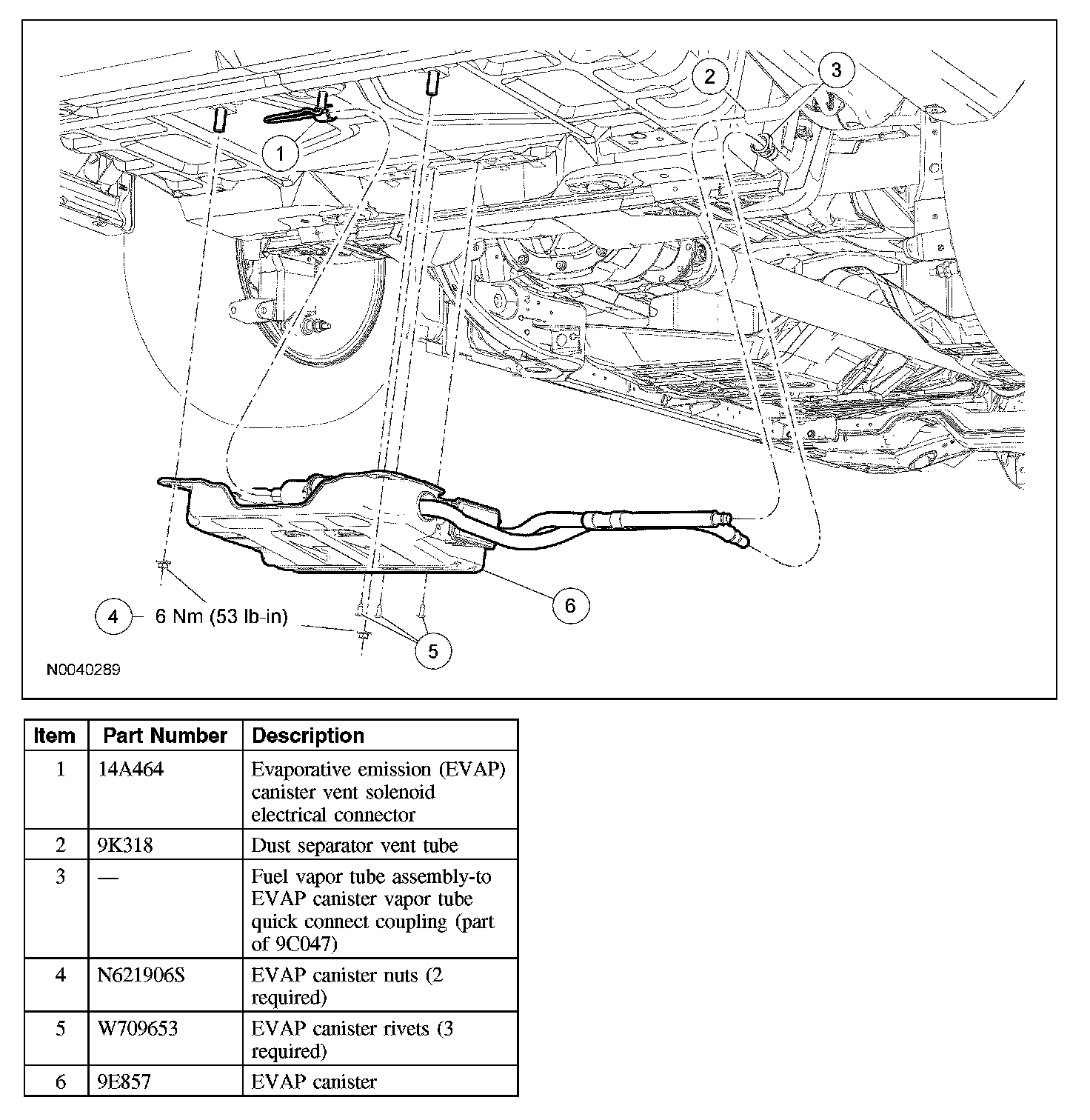

Removal and Installation

1. WARNING: Before servicing a vehicle equipped with a fire suppression system, depower the system by following the procedure in Fire Suppression System. Failure to follow the instructions may result in serious personal injury.

With the vehicle in NEUTRAL, position it on a hoist.

2. Disconnect the evaporative emission (EVAP) canister vent solenoid electrical connector.
3. Remove the 3 EVAP canister rivets.
- Drill out the center of the original rivets to remove and install new rivets upon installation.

4. Disconnect the dust separator vent tube.
5. Disconnect the fuel vapor tube assembly-to-EVAP canister vapor tube quick connect coupling.
6. Remove the 2 nuts and the EVAP canister.
- To install, tighten to 6 Nm (53 lb-in).

7. WARNING: If the vehicle is equipped with a fire suppression system, repower the system. For important safety warnings and procedures, refer to Fire Suppression System. Failure to follow these instructions may result in serious personal injury.

To install, reverse the removal procedure. If equipped with fire suppression system, repower the system.
- Carry out the Evaporative Emission System Leak Test. Testing and Inspection
- Carry out the evaporative emission repair verification drive cycle.
