Tail Lamp: Service and Repair

REAR LAMP ASSEMBLY







Removal and Installation

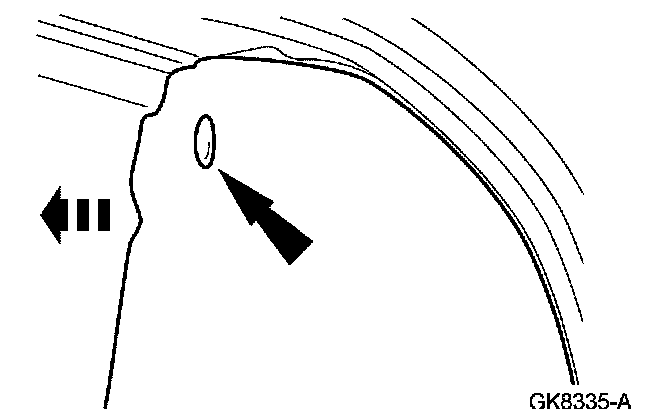

1. Remove the pin-type retainer and position the luggage compartment trim aside.

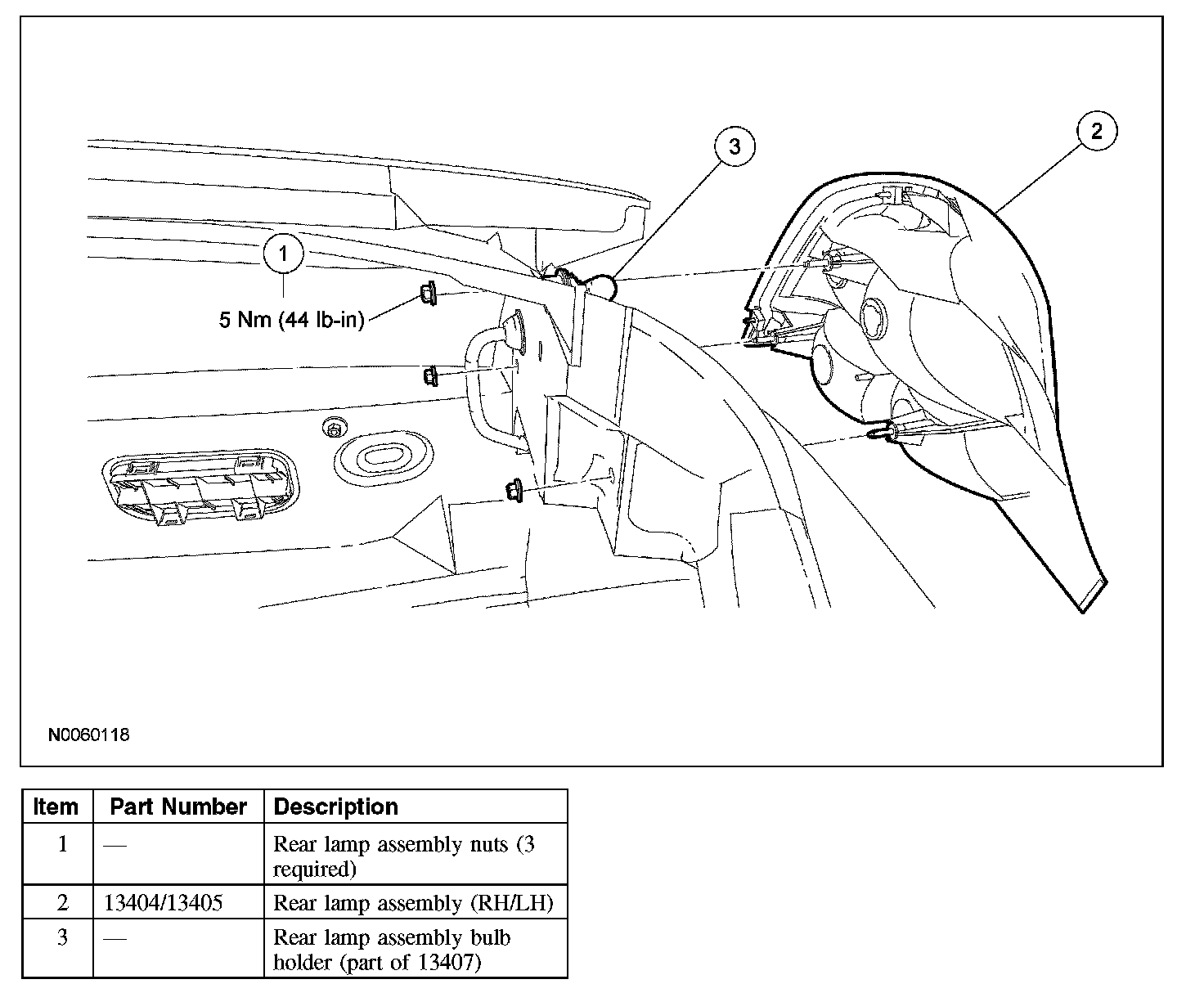

2. Remove the 3 nuts and the rear lamp assembly.
- Remove the bulb sockets from the rear lamp assembly.
- To install, tighten to 5 Nm (44 lb-in).

3. To install, reverse the removal procedure.
