Test J: The Stoplamps Are On Continuously
PINPOINT TEST J: THE STOPLAMPS ARE ON CONTINUOUSLYNormal Operation
When the brake pedal is applied, the stoplamp switch closes and routes voltage to the high mounted stoplamp and the multifunction switch through circuit 10 (LG/RD). The multifunction switch then routes the voltage through circuits 9 (LG/OG) and 5 (OG/LB) to the LH and RH rear lamps, respectively.
This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Stoplamp switch
- Multifunction switch

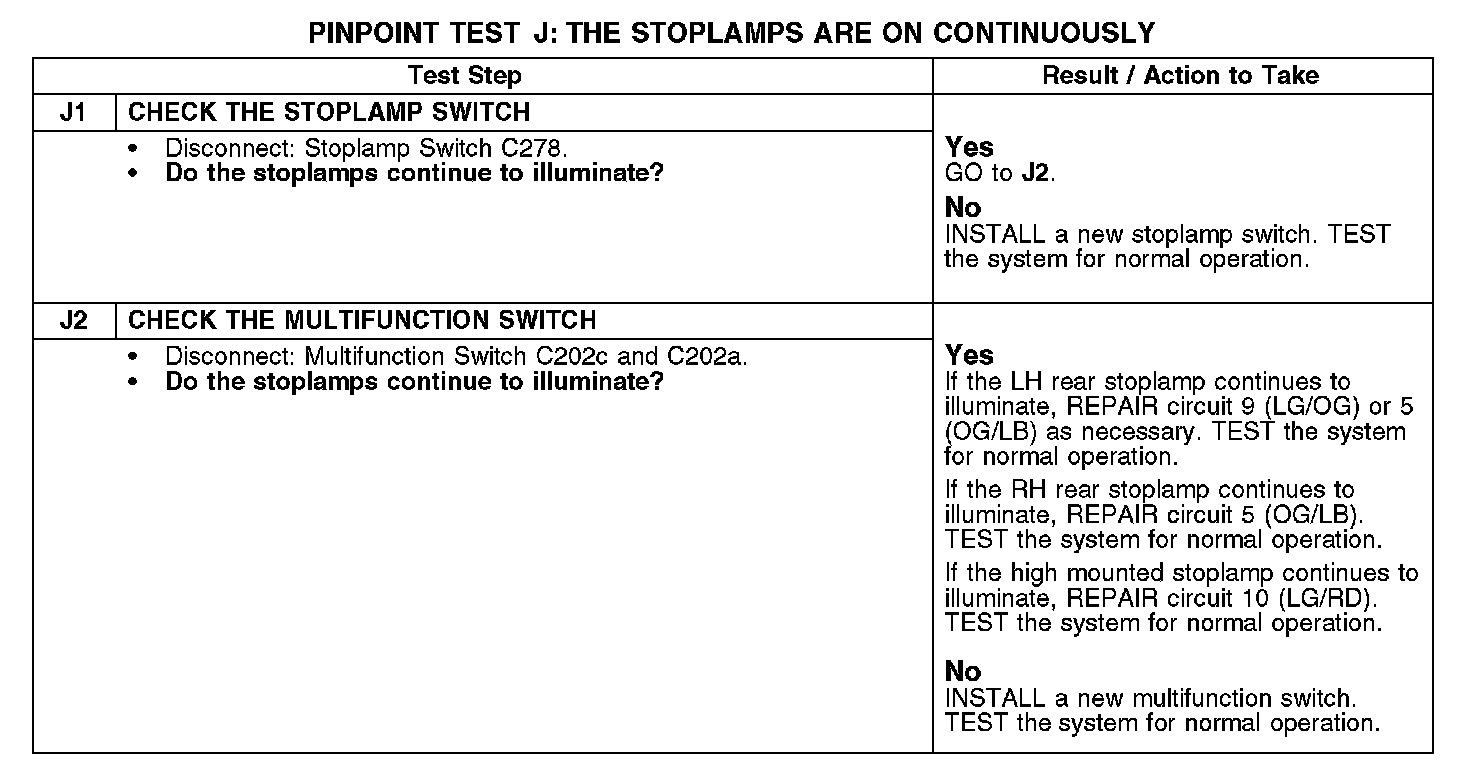

J1-J2:
