Test H: The Stoplamps Are Inoperative

PINPOINT TEST H: THE STOPLAMPS ARE INOPERATIVE

Normal Operation
The battery junction box (BJB) supplies voltage to the stoplamp switch through circuit 1119 (RD). When the brake pedal is applied, the stoplamp switch closes and routes voltage to the stoplamps through circuit 10 (LG/RD).

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Fuse
- Stoplamp switch

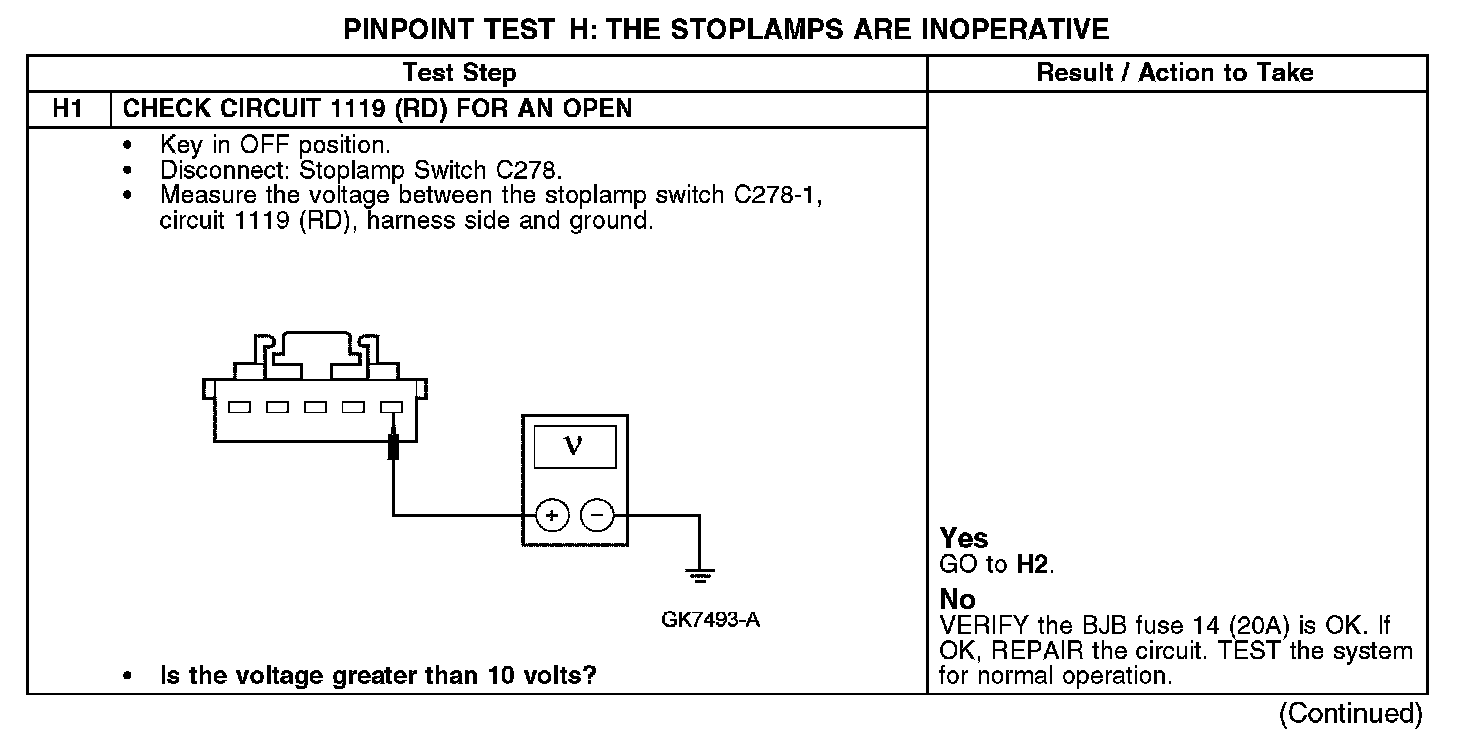

H1:

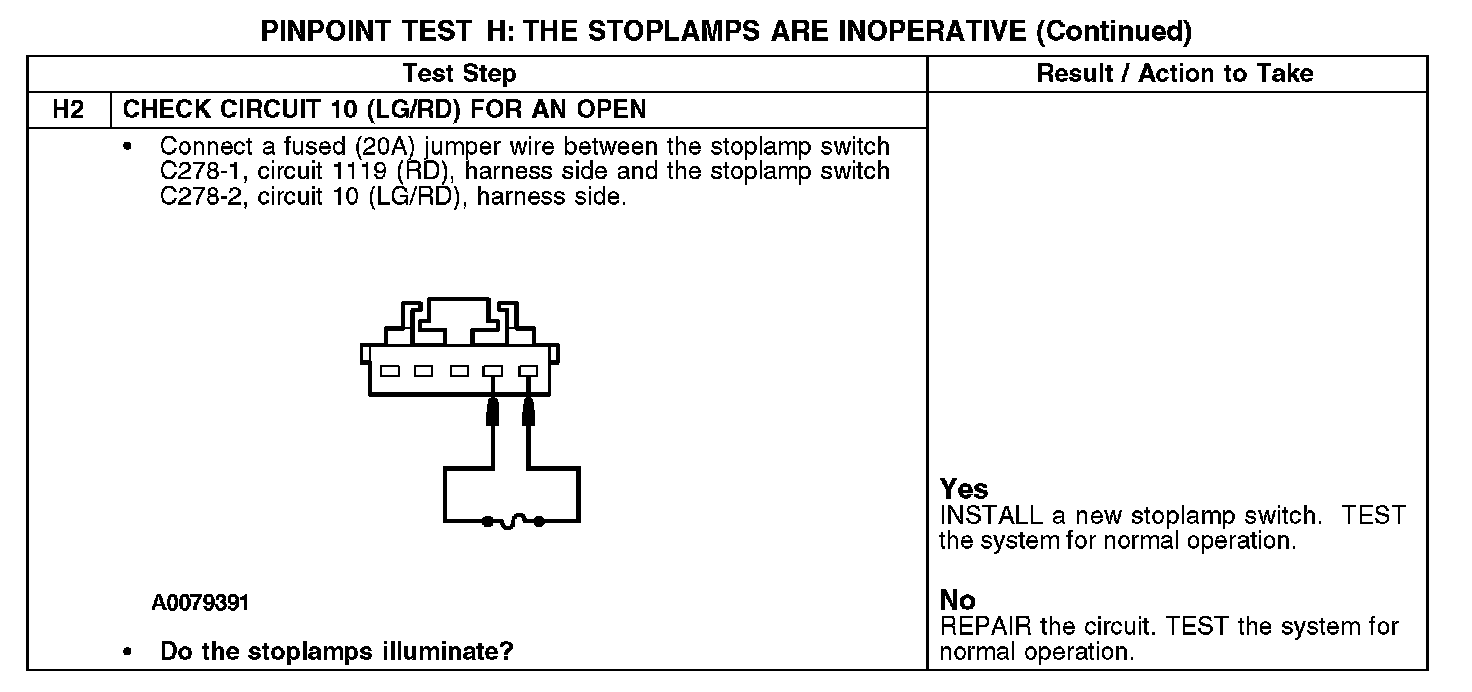

H2:
