Test D: The Door Ajar Warning Chime Does Not Operate Correctly

PINPOINT TEST D: THE DOOR AJAR WARNING CHIME DOES NOT OPERATE CORRECTLY

Normal Operation
The door ajar warning chime sounds when the ignition switch is in the ON position and the luggage compartment lid or a door is ajar.

This pinpoint test is intended to diagnose the following:
- Luggage compartment lid latch
- LCM

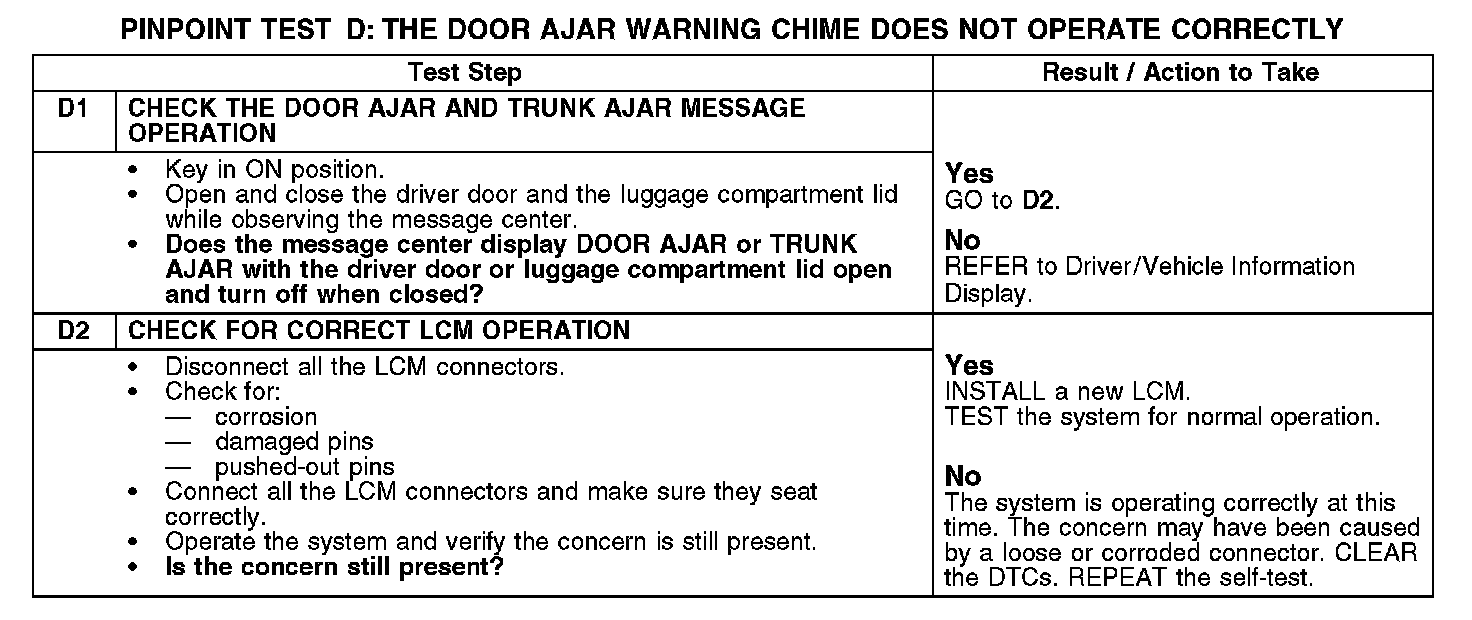

D1-D2:
