Instrument Cluster (IC) Lens

INSTRUMENT CLUSTER (IC) LENS

Removal and Installation

NOTE: The instrument cluster (IC) lens and the mask are removed and installed as an assembly.

1. Remove the instrument cluster (IC).

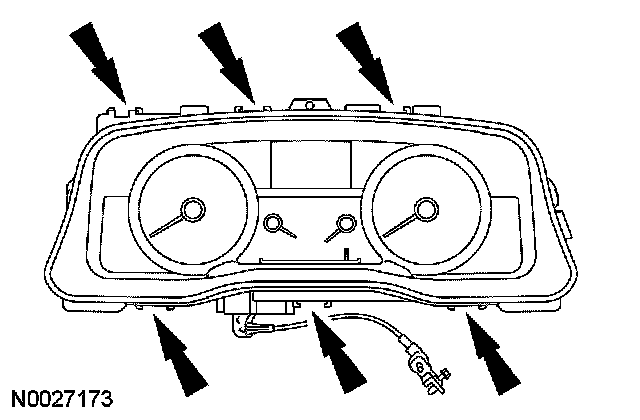

2. Release the 6 black clips and remove the instrument cluster (IC) lens/mask assembly.







3. To install, reverse the removal procedure.
