INSTRUMENT CLUSTER FINISH PANEL







Removal and Installation
1. If equipped with steering column shift, place the transmission range selector lever in the No. 1 position.

2. NOTE: Ignition switch must be in OFF position if disconnecting the passenger airbag deactivation (PAD) indicator electrical connector. Otherwise, a DTC will be set in the restraints control module (RCM) memory and must be erased before releasing the vehicle.

Position the ignition switch in the OFF position.

3. Remove the audio unit.
4. Remove the RH instrument panel finish panel and disconnect the 3 electrical connectors.
5. Remove the LH instrument panel finish panel and disconnect the electrical connector.
6. Tilt the steering column in the full down position.

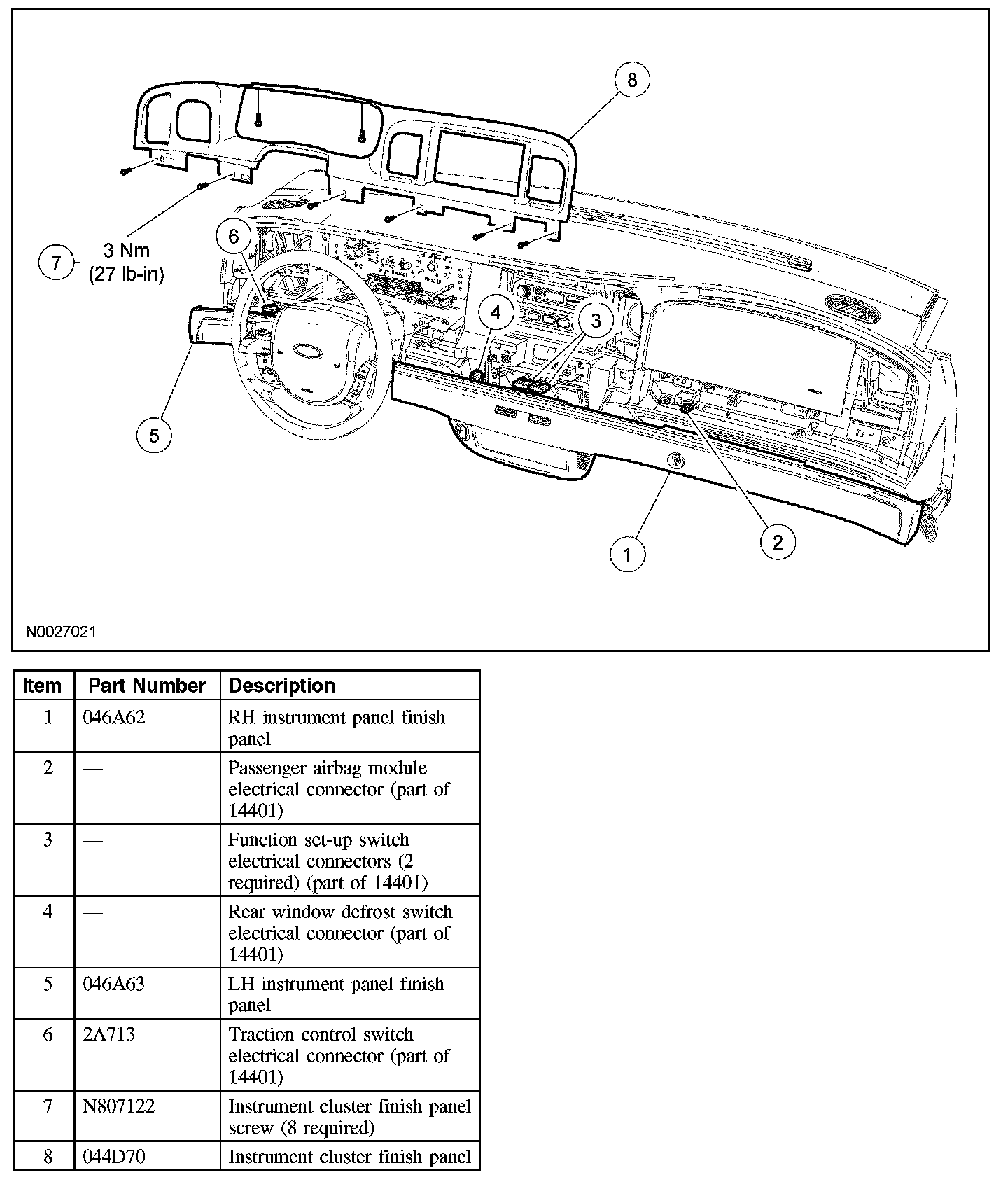

7. Remove the 8 screws and the instrument cluster finish panel.
- Disconnect the electrical connectors.
- To install, tighten to 3 Nm (27 lb-in).

8. To install, reverse the removal procedure.
