Test P: The Steering Wheel Control Switch Is Inoperative/Does Not Operate Correctly

PINPOINT TEST P: THE STEERING WHEEL CONTROL SWITCH IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

Normal Operation
Under normal operation, the electronic automatic temperature control (EATC) module senses the resistance (depending on what button is pressed) from the steering wheel control switch through circuit 1070 (BN/LB). Ground for the steering wheel control switch is provided through circuit 57 (BK).

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Steering wheel control switch
- EATC module

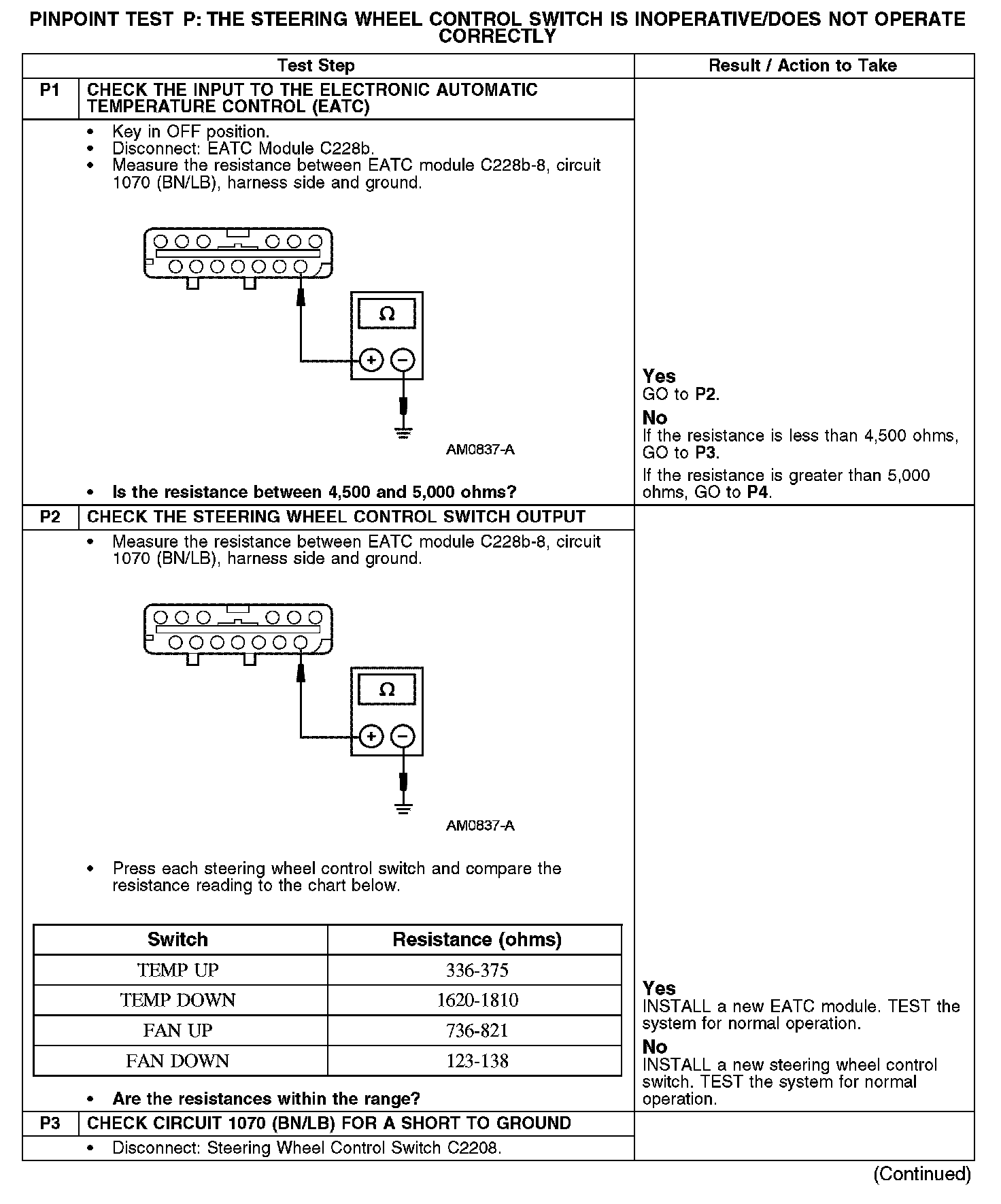

P1-P3:

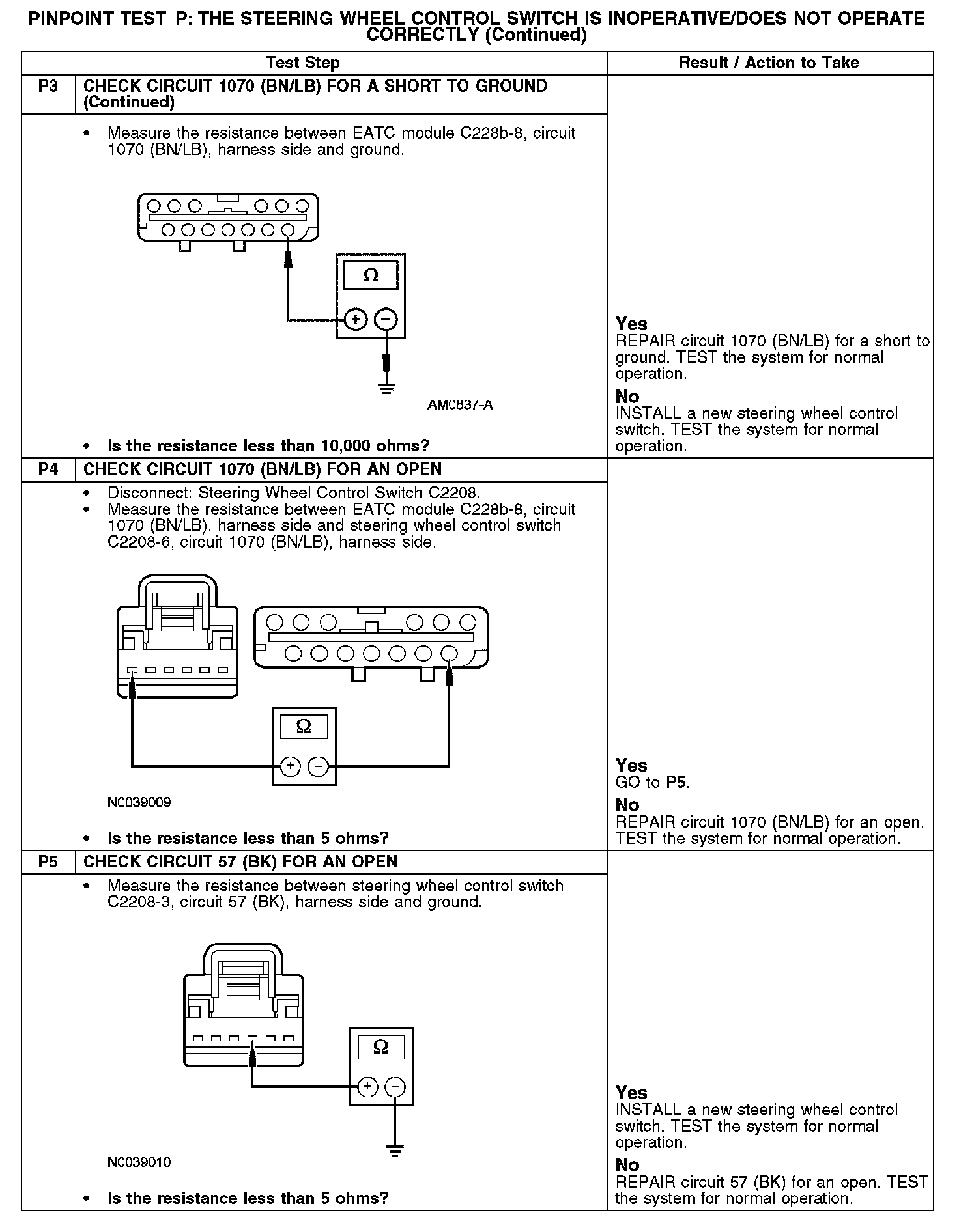

P3-P5:
