Temperature Control Switch

TEMPERATURE CONTROL SWITCH

Removal and Installation
1. Remove the climate control assembly.
2. Pull and remove the temperature control switch knob.

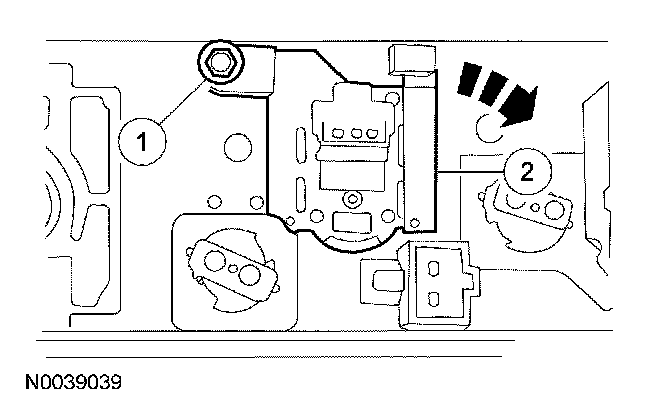

3. Remove the temperature control switch.
1 Remove the screw.
2 Rotate and remove the temperature control switch.







4. To install, reverse the removal procedure.
