Valve Guide Seal: Service and Repair

Valve Seals





Removal

1. WARNING: Before servicing a vehicle equipped with a fire suppression system, depower the system by following the procedure in Fire Suppression System. Failure to follow the instructions may result in serious personal injury.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.





2. Remove the valve springs.
3. Remove the valve stem seals.

Installation

1. NOTE: The valve stem seal must be bottomed on the valve seat.

NOTE: Make sure that the garter spring is present in the valve stem seal.

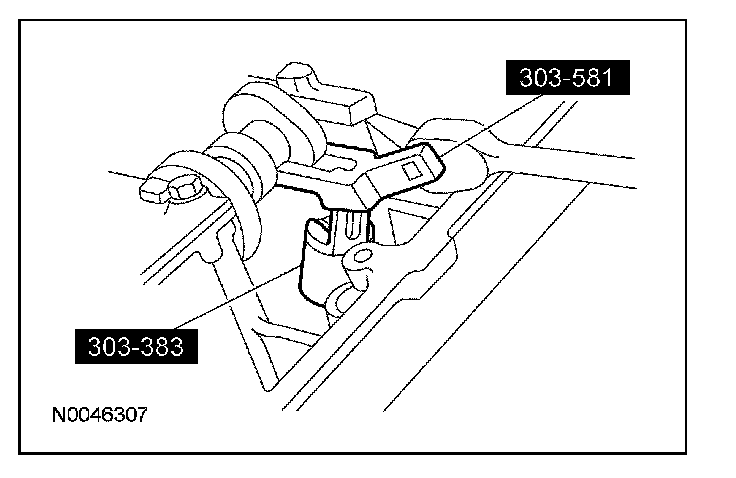

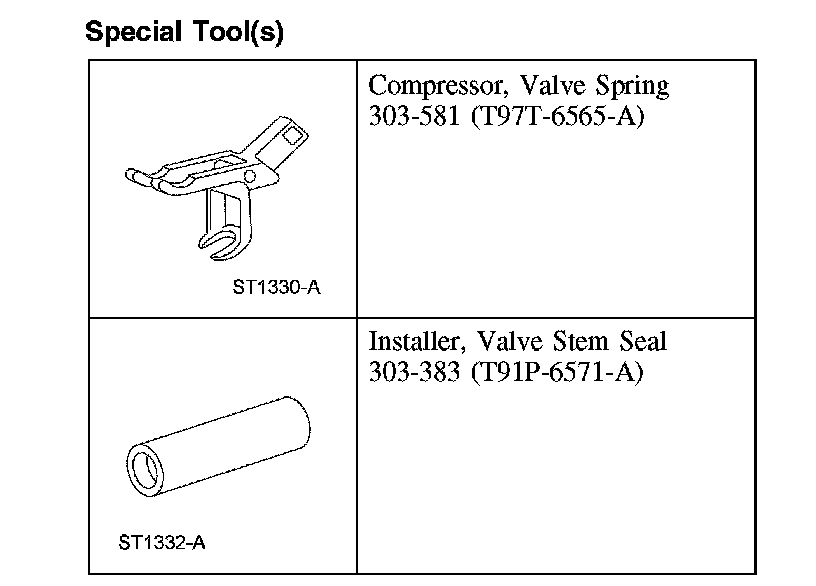

Use the special tools to install the valve stem seals.
2. Install the valve springs.

3. WARNING: If the vehicle is equipped with a fire suppression system, repower the system. For important safety warnings and procedures, refer to Fire Suppression System. Failure to follow these instructions may result in serious personal injury.

If equipped with fire suppression system, repower the system.
