Front Crankshaft Seal: Service and Repair

Crankshaft Front Seal








Removal

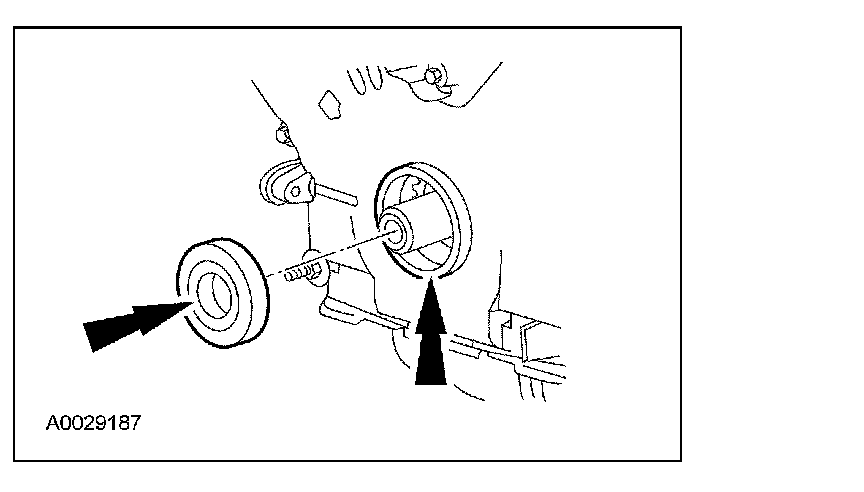

1. Remove the crankshaft pulley.

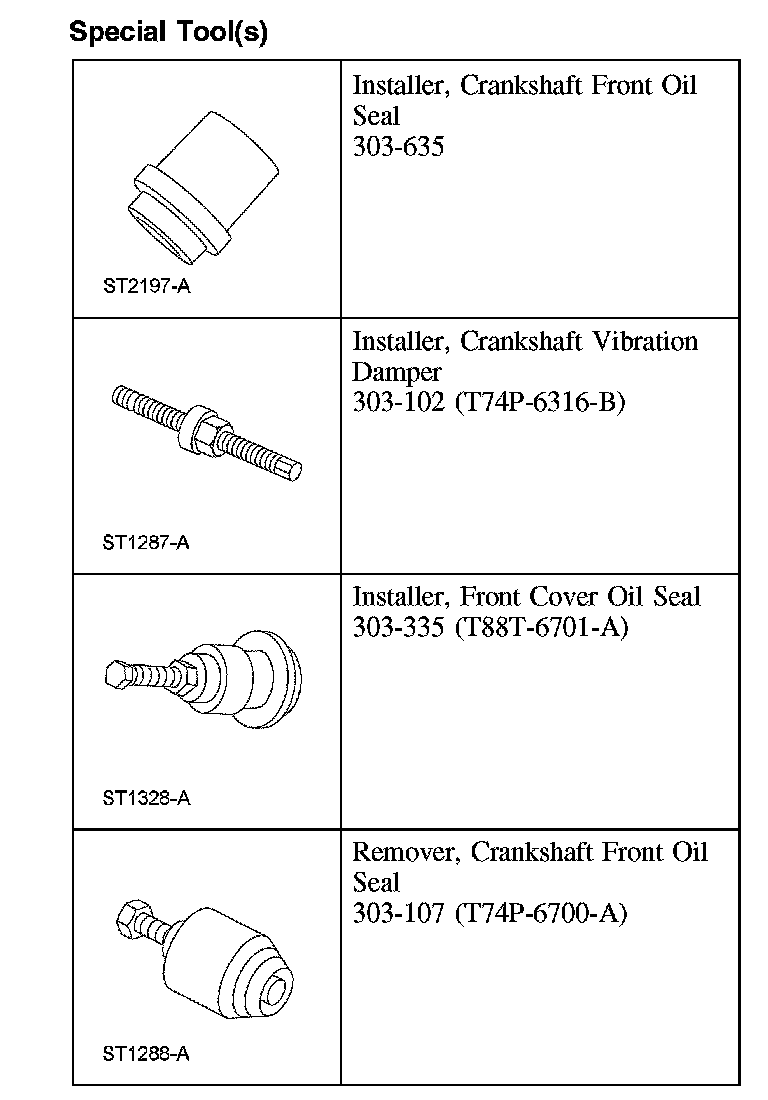

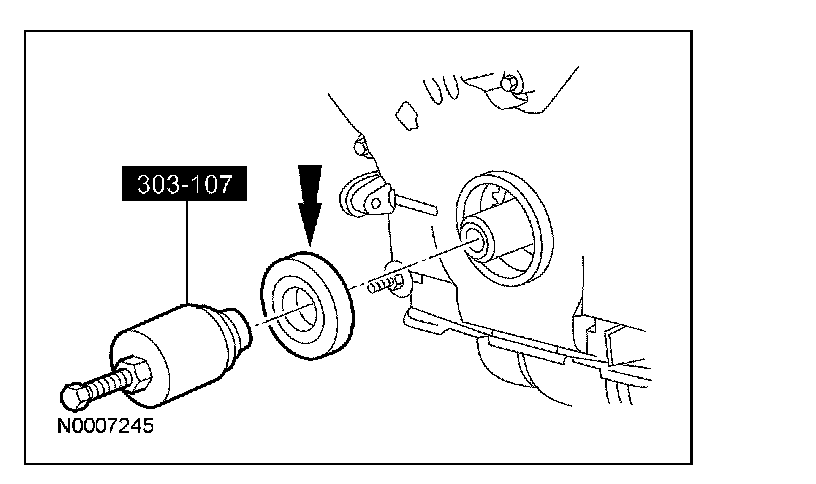

2. Using the special tool, remove the crankshaft front seal.





Installation
1. Lubricate the engine front cover and the crankshaft front seal inner lip with clean engine oil.

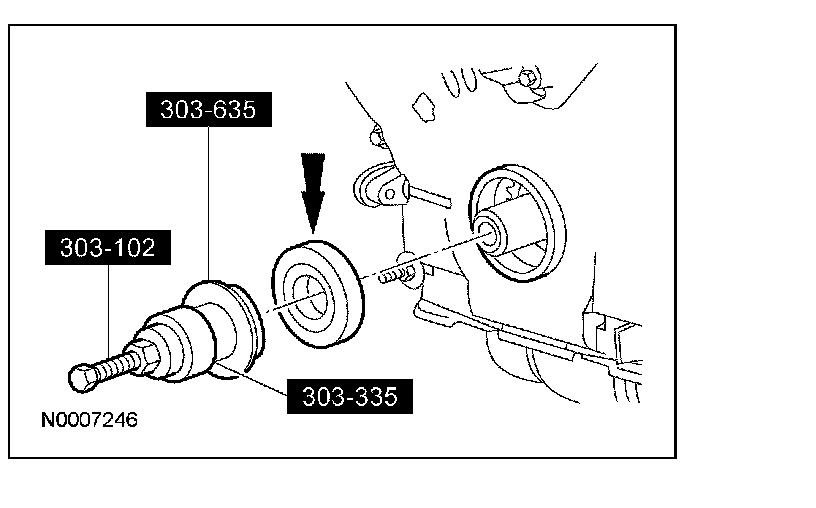

2. Using the special tools, install the crankshaft front seal into the engine front cover.





3. Install the crankshaft pulley.
