Oil Pump: Service and Repair

Oil Pump





Removal

1. WARNING: Before servicing a vehicle equipped with a fire suppression system, depower the system by following the procedure in Fire Suppression System. Failure to follow the instructions may result in serious personal injury.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.
2. Remove the oil pan.
3. Remove the timing drive components.
4. Remove the 3 bolts, the oil pump screen and pickup tube.
^ Discard the O-ring seal.
5. Remove the 3 bolts and the oil pump.

Installation

1. CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

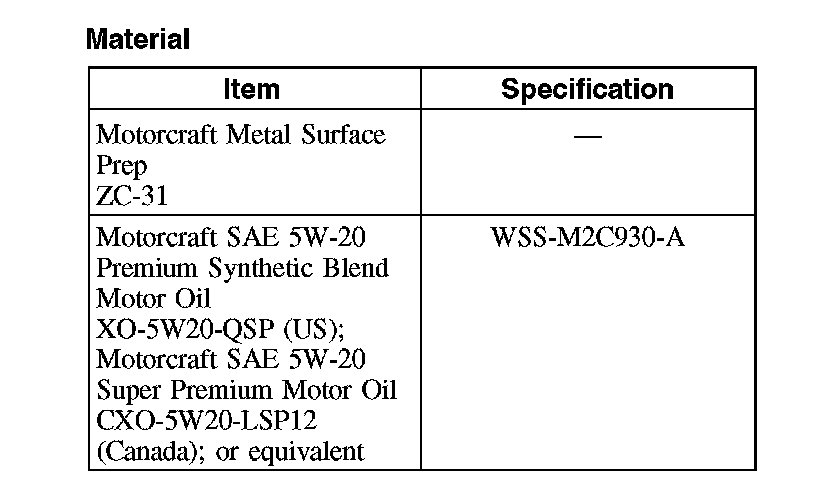

Clean the sealing surfaces with metal surface prep. Follow the directions on the packaging. Inspect the mating surfaces.
2. Position the oil pump and install the 3 bolts.
^ Tighten to 10 Nm (89 lb-in).

3. CAUTION: Make sure the O-ring seal is in place and not damaged. A missing or damaged O-ring seal can cause foam in the lubrication system, low oil pressure and severe engine damage.

NOTE: Clean and inspect the mating surfaces and install a new O-ring seal. Lubricate the O-ring seal with clean engine oil prior to installation.

Position the oil pump screen and pickup tube and install the bolts.
^ Tighten the oil pump screen and pickup tube-to-oil pump bolts to 10 Nm (89 inch lbs.).
^ Tighten the oil pump screen and pickup tube-to-spacer bolt to 25 Nm (18 ft. lbs.).
4. Install the timing drive components.
5. Install the oil pan.

6. WARNING: If the vehicle is equipped with a fire suppression system, repower the system. For important safety warnings and procedures, refer to Fire Suppression System. Failure to follow these instructions may result in serious personal injury.

If equipped with fire suppression system, repower the system.
