FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2008
>>
Grand Marquis V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
Splices

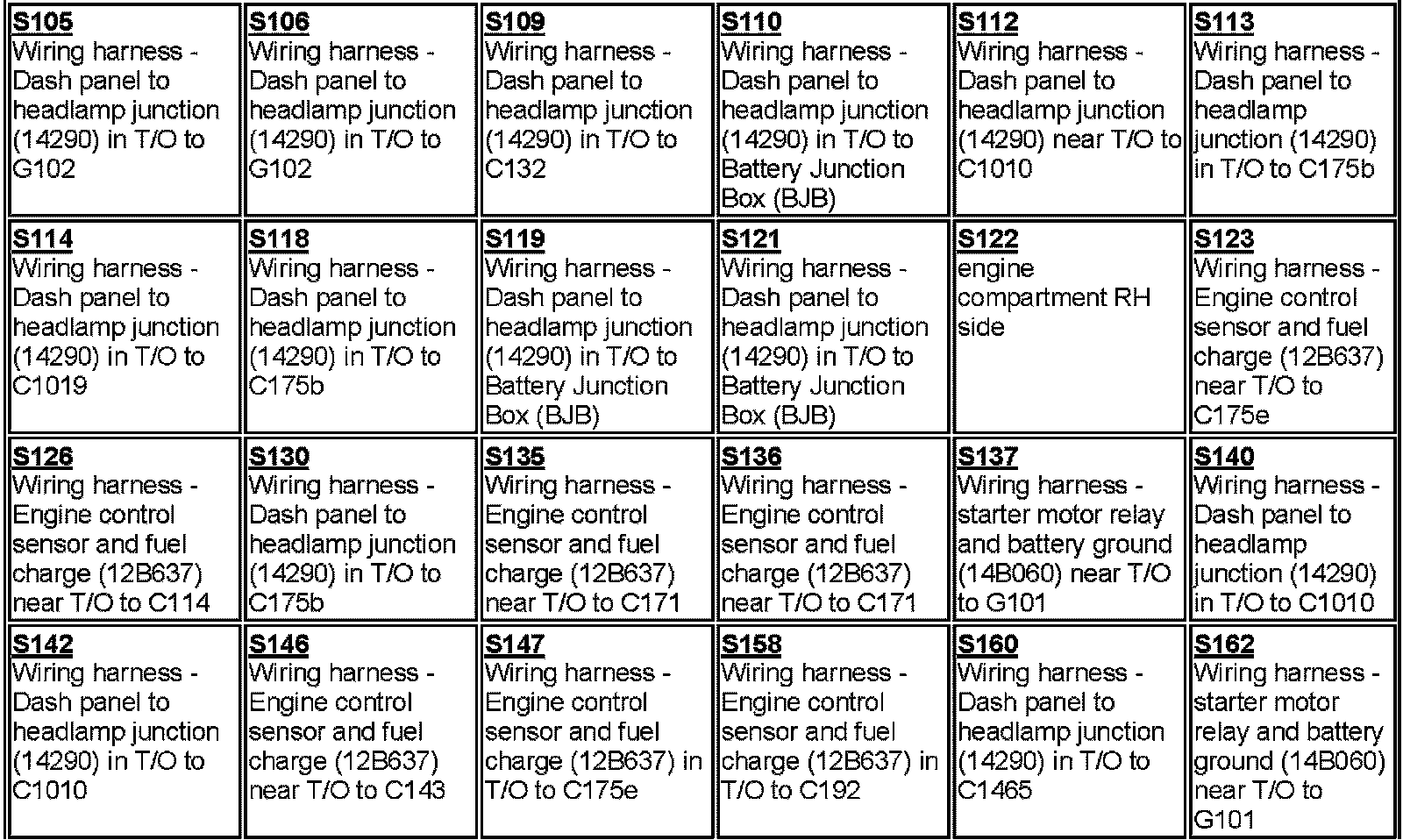

S105 - S162:

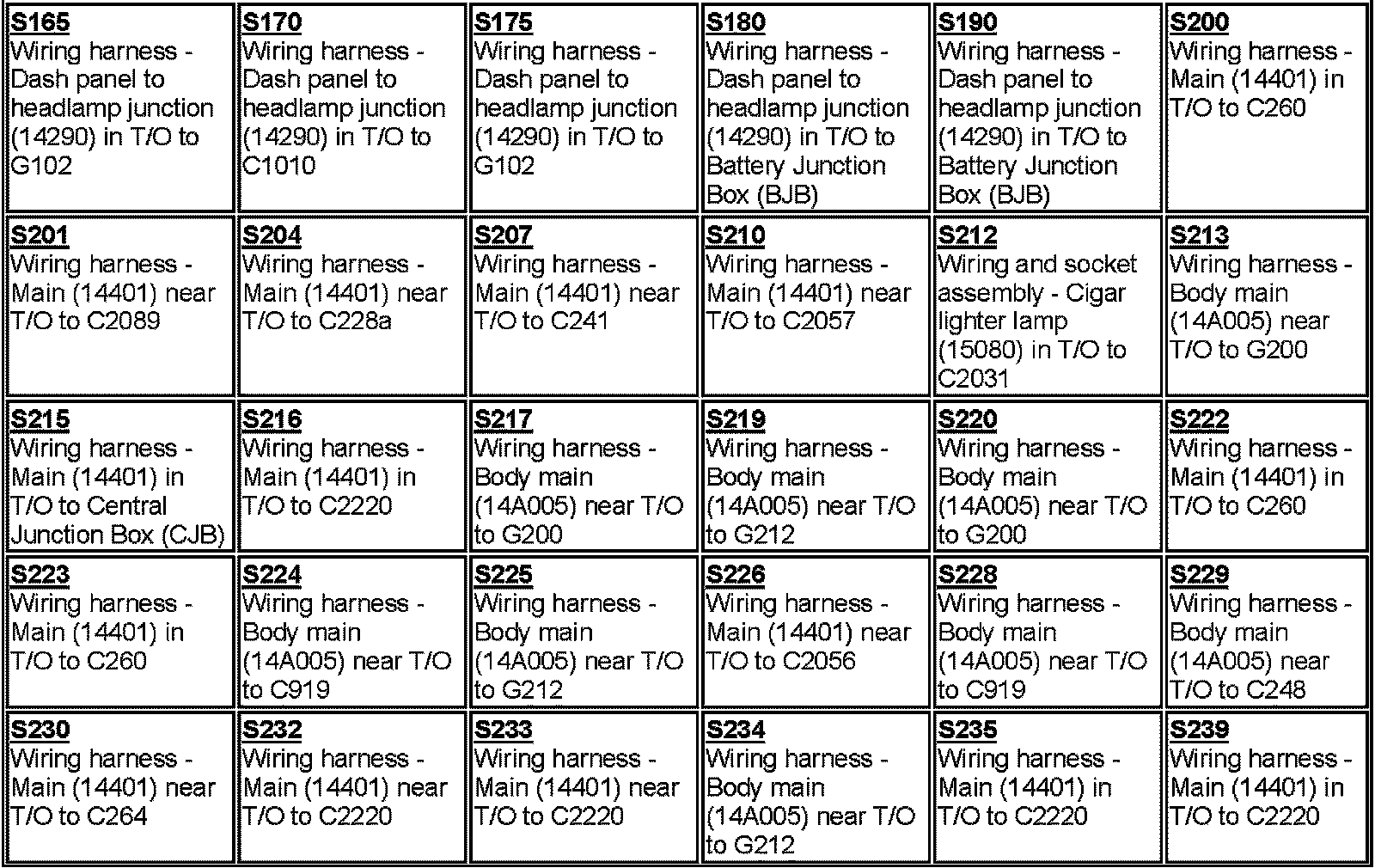

S165 - S213:

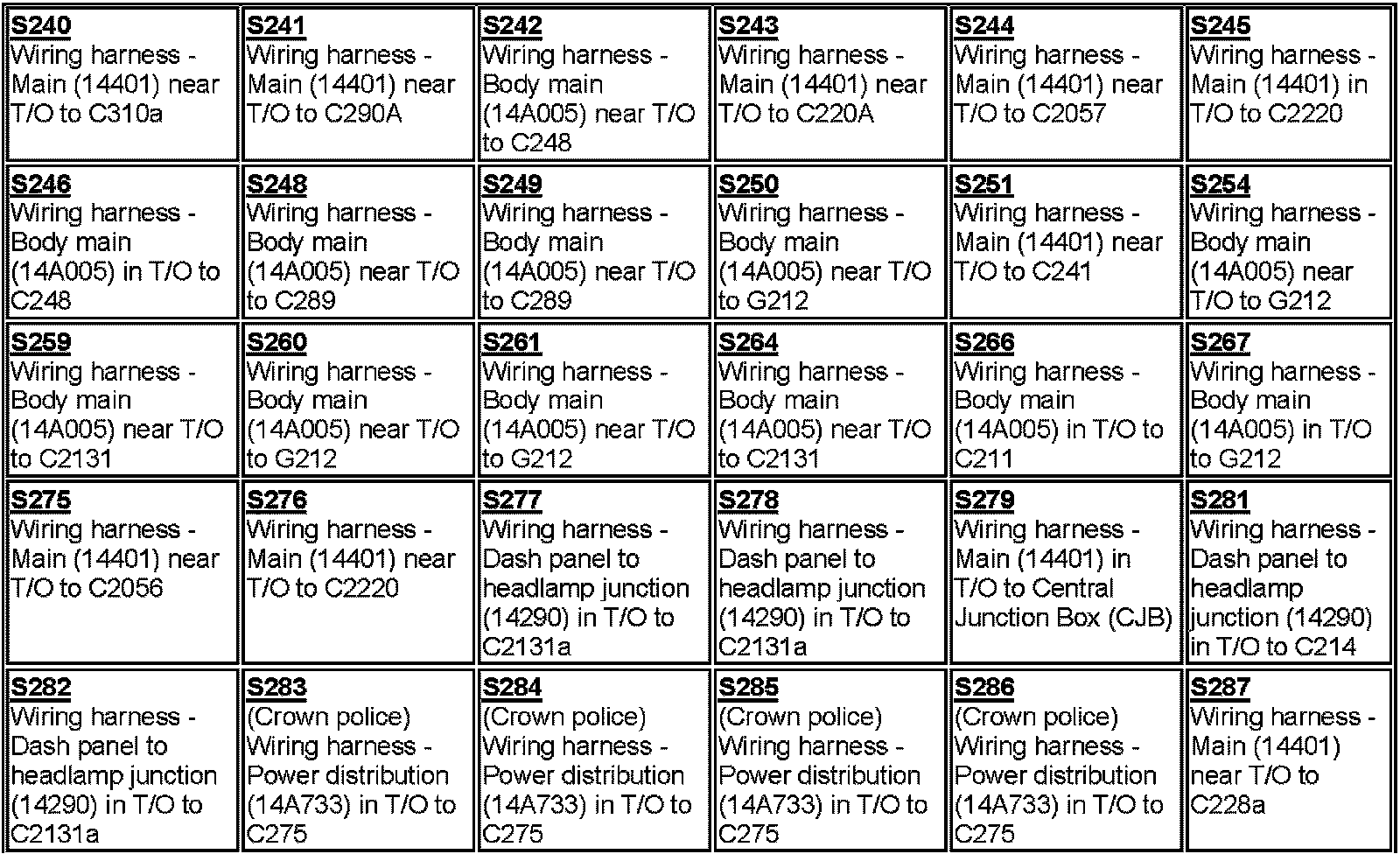

S240 - S287:

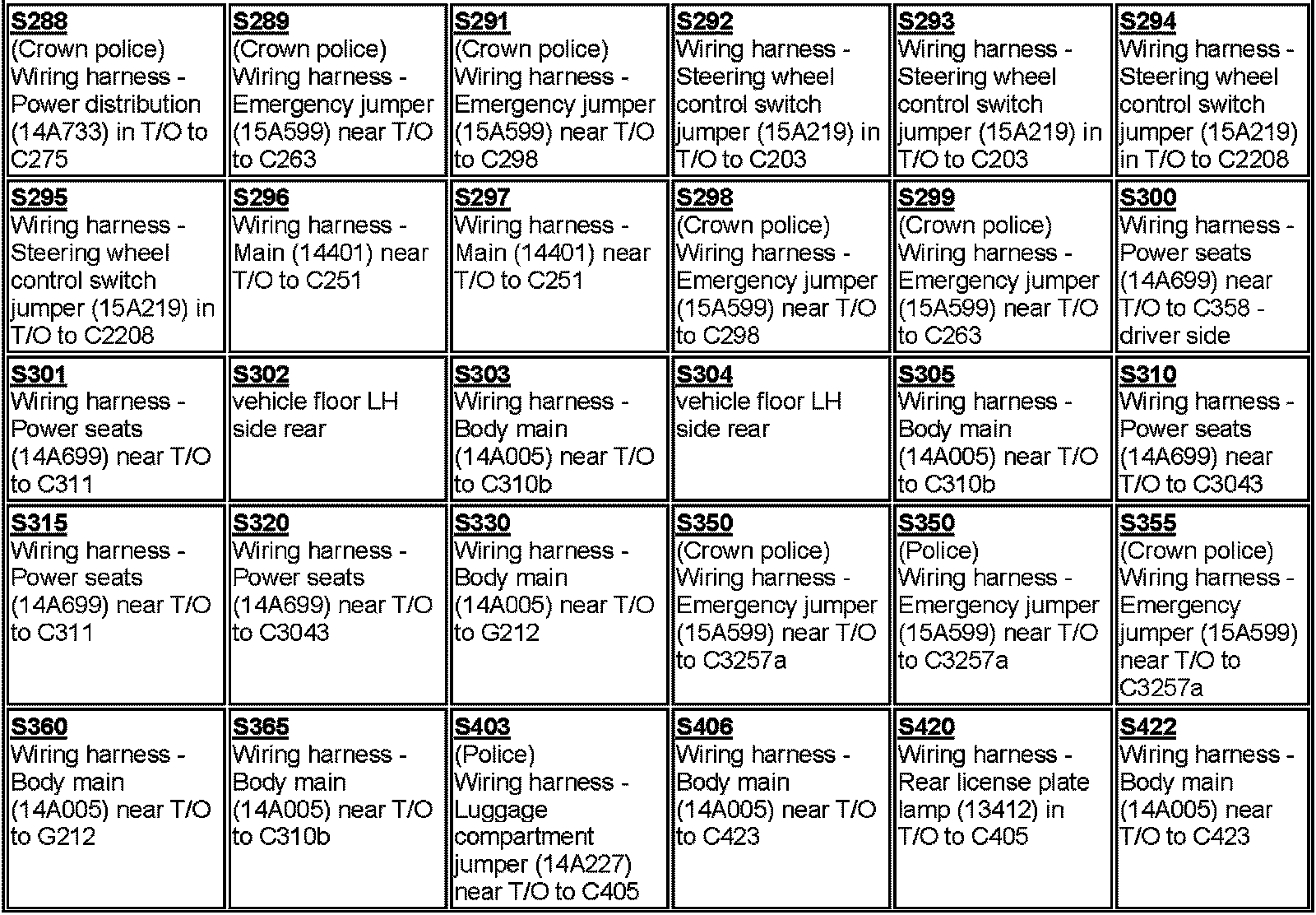

S288 - S422:

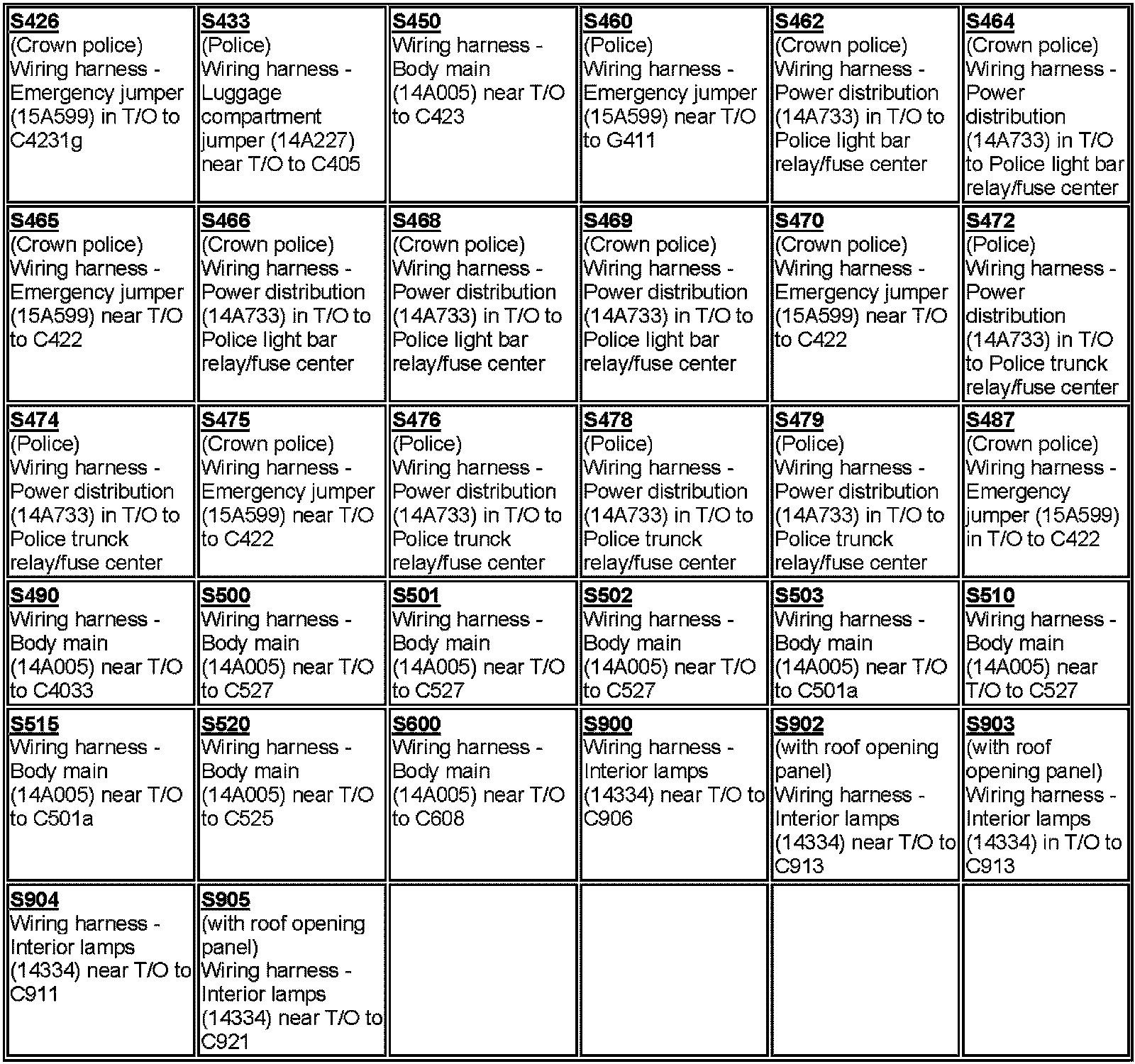

S426 - S905:
