Home >> Mercury >> 2008 >> Grand Marquis V8-4.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 58 (Lighting Control Module)

Diagram Set 58 (Lighting Control Module)

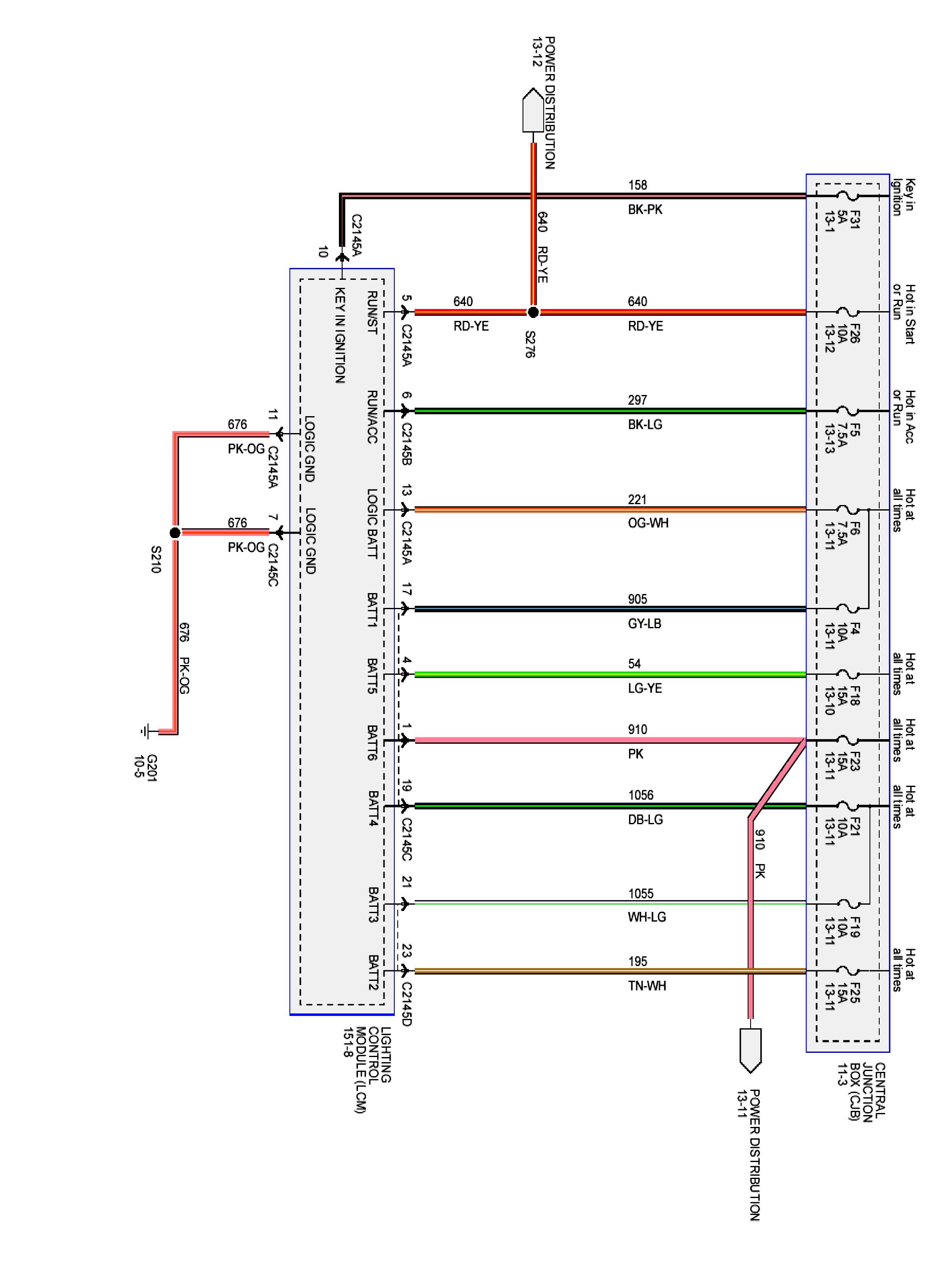

58-1:

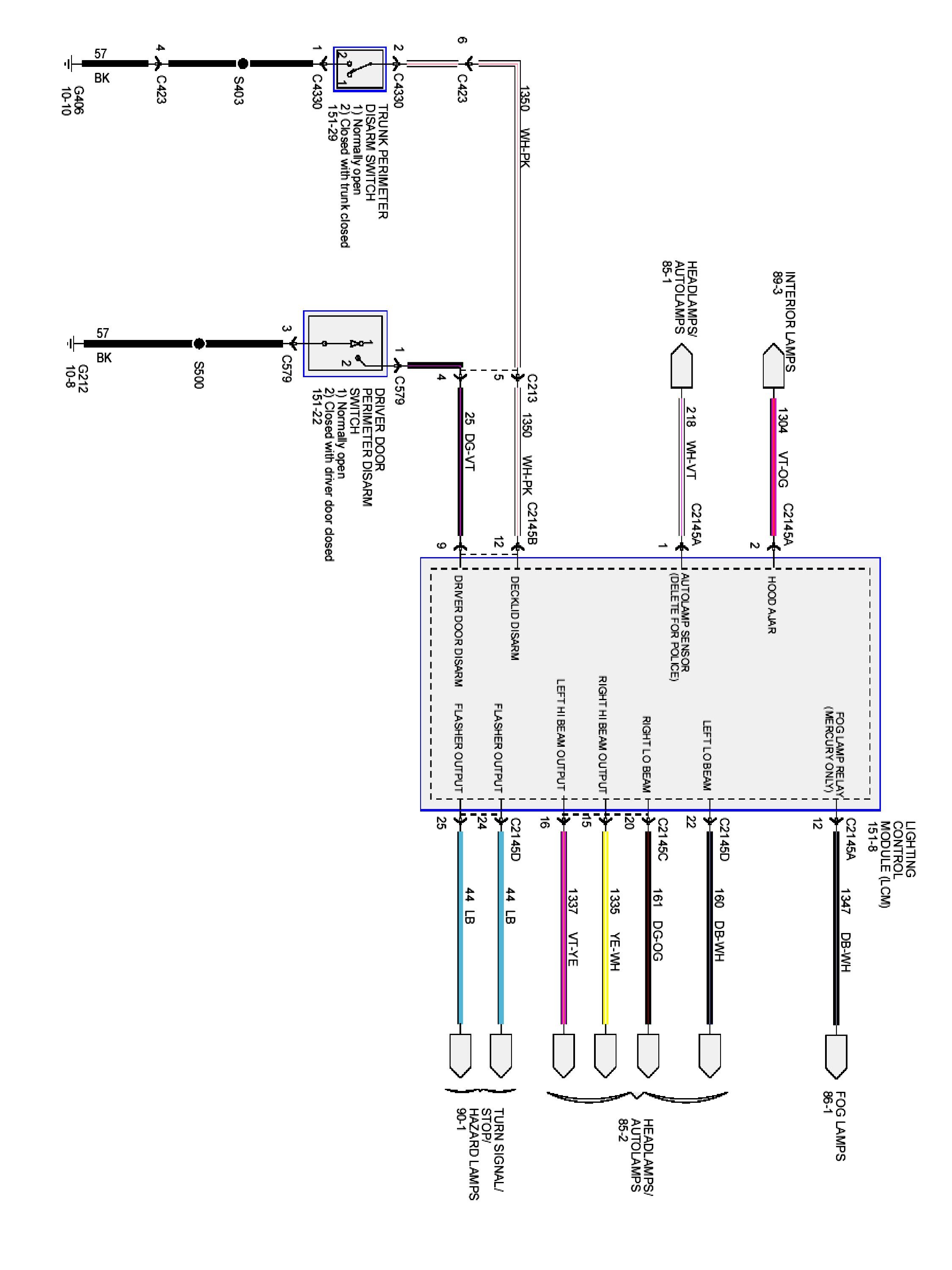

58-2:

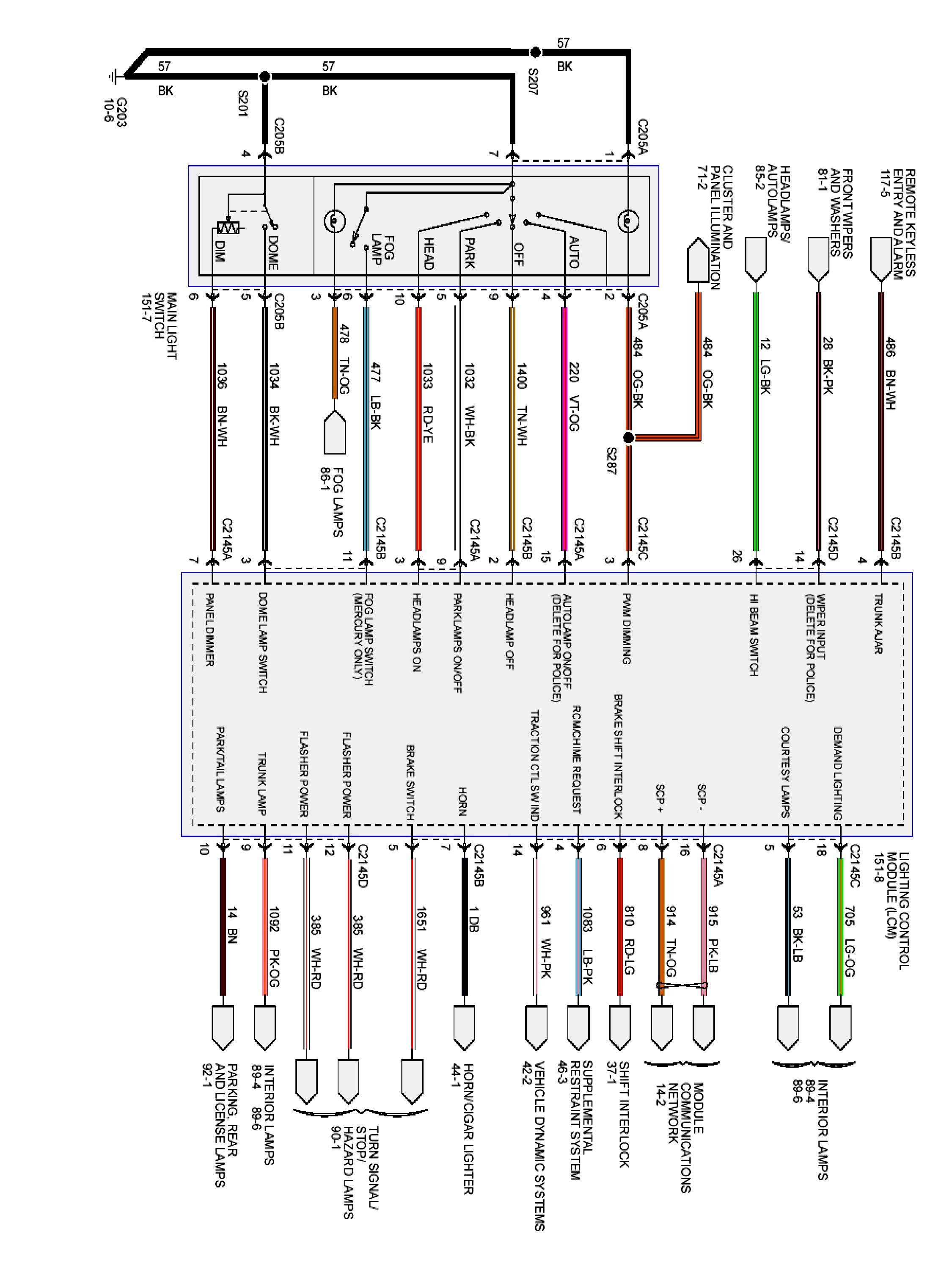

58-3:
